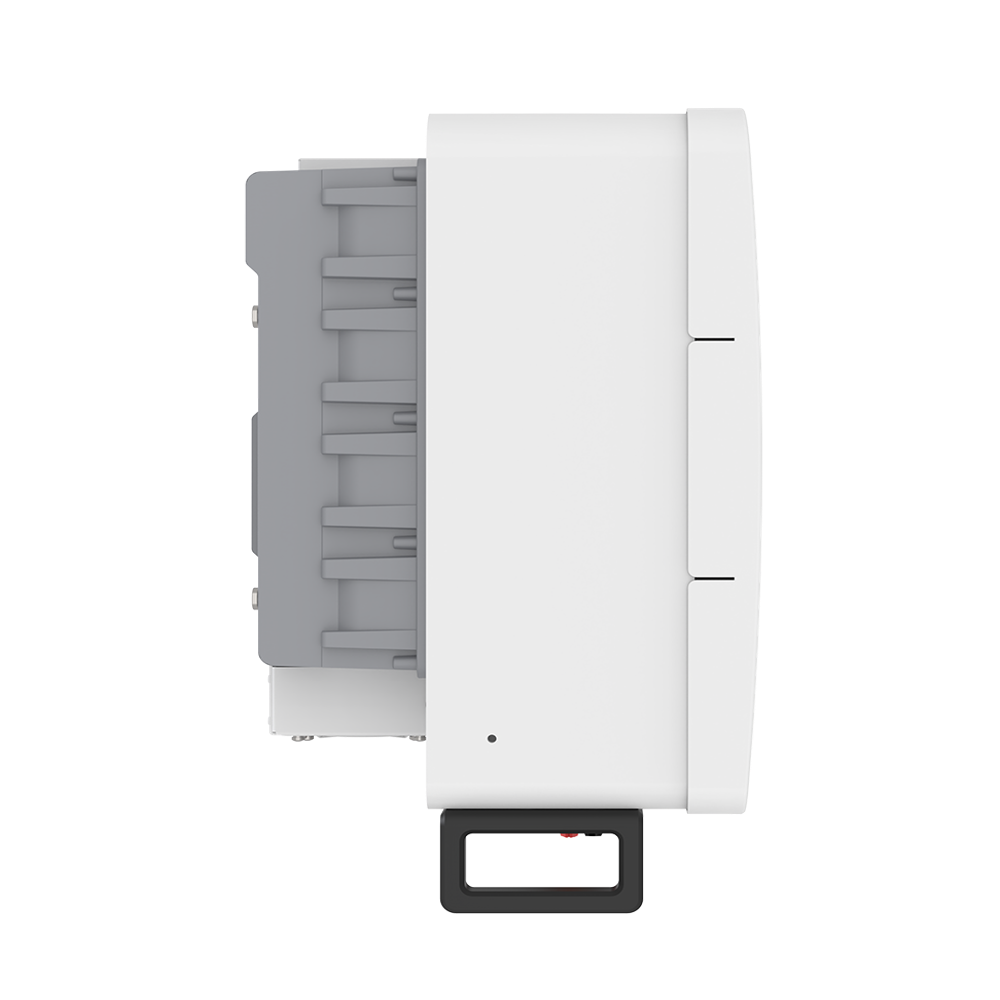

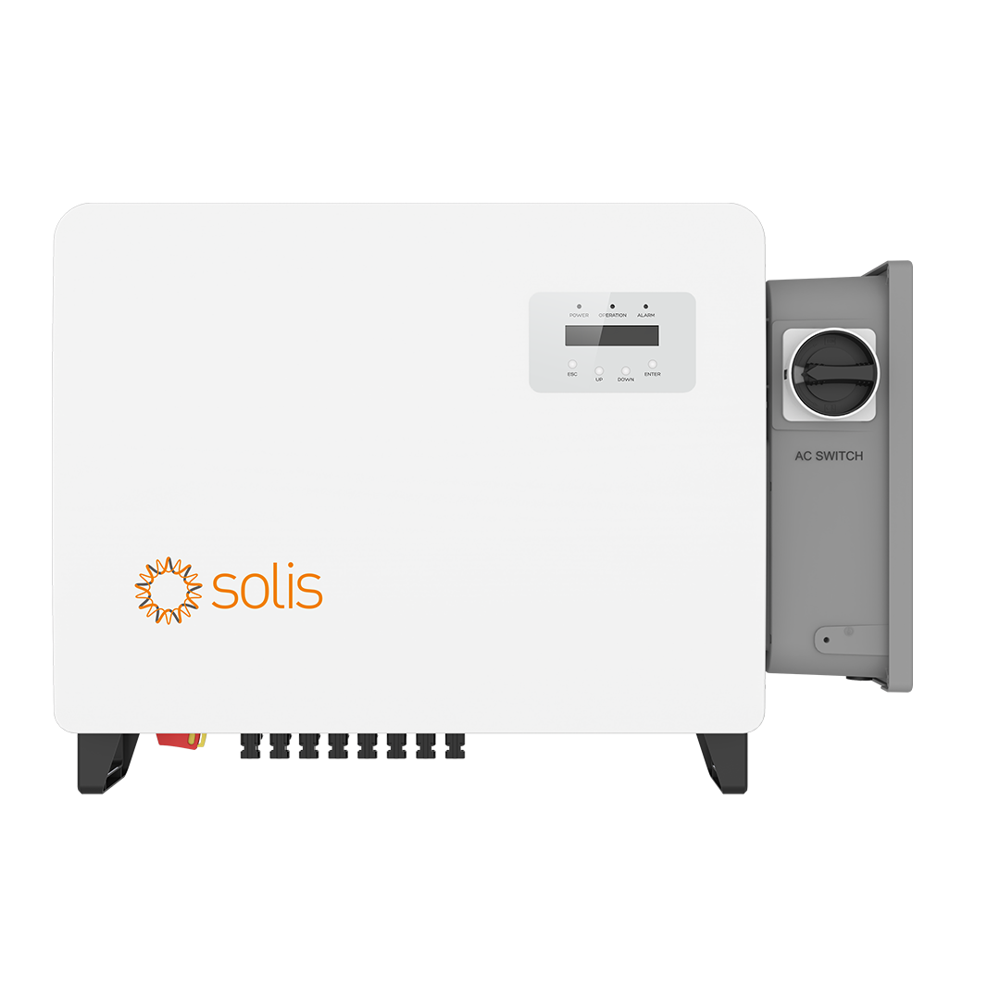

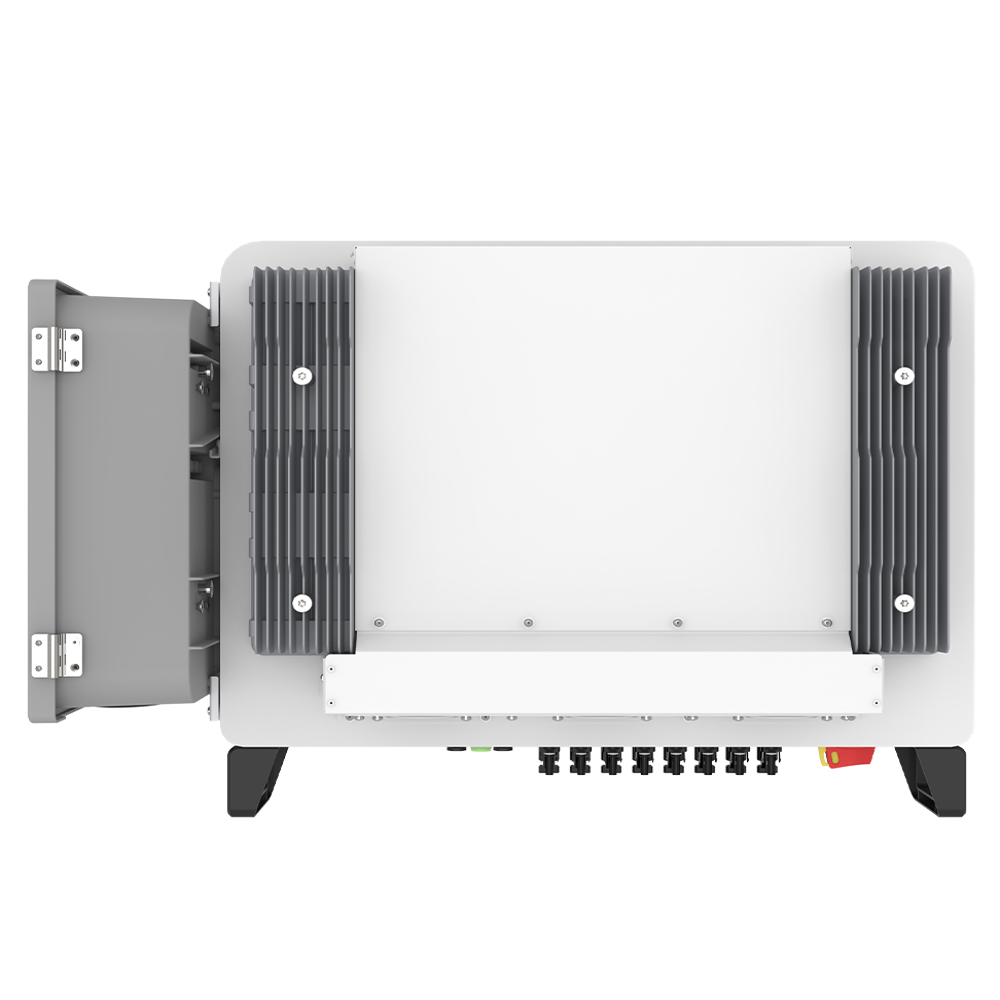

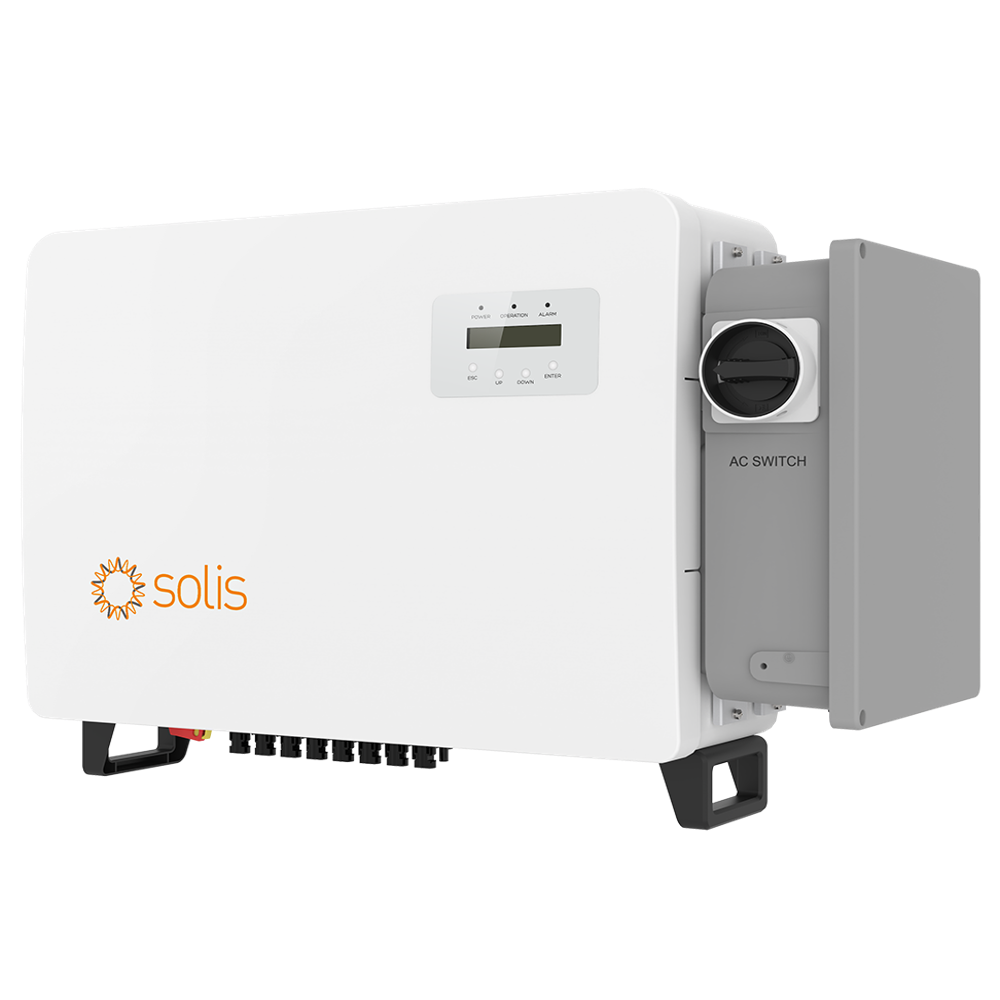

Solis 40kw Three Phase Inverter, 40,000W Output,S6-GC40K-US, 4 MPPTs, Max. Efficiency 98.8%

Price 144581.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Solis 40kw Three Phase Inverter, 40,000W Output,S6-GC40K-US, 4 MPPTs, Max. Efficiency 98.8% Specification

Input Voltage
720 Volt (V)

Features
> 1.5 DC/AC ratio, string current up to 20A, separable AC wiring box, intelligent string monitoring, smart I-V curve scan with multi-peak scanning, zero output power control, and optional nighttime PID recovery

Efficiency
98.3%

Maintenance Type
Natural cooling

Product Type
Other

Material
Type 4X construction with C5 Anti-Corrosion Level

Number of Cells
0

Power
40000 Watt (w)

Operating Temperature
-13 F to 140 F (-25 C to 60 C) Celsius (oC)

Max Voltage
40000 Watt (W)

Max System Voltage
40000 Watt (W)

Output Voltage
480 Volt (V)

Cable Length
NA Centimeter (cm)

Switch Mode
Other

Size
784 549 320

Dimension (L*W*H)
784 549 320 Millimeter (mm)

Color
NA

Weight
43.7 Kilograms (kg)

Warranty
10 Year

Application
Home, Industrial, Commercial

Type Of Technology
Other

Installation Type
Other

Solis 40kw Three Phase Inverter, 40,000W Output,S6-GC40K-US, 4 MPPTs, Max. Efficiency 98.8% Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Telegraphic Transfer (T/T)

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Sample Available
Yes

Packaging Details
national standard packaging

Main Domestic Market
All India

Certifications
Integrated AFCI, DC reverse-polarity protection, Short circuit protection, Output overcurrent protection, Surge protection (DC Type II/AC Type II), Grid monitoring, Anti-islanding, Temperature protection, and compliance with UL1741SB, IEEE 1547-2018, FCC Part 15 ClassB

About Solis 40kw Three Phase Inverter, 40,000W Output,S6-GC40K-US, 4 MPPTs, Max. Efficiency 98.8%

Solis Three Phase Grid-Tied Inverter Leading Features Efficient String current up to 20A Max. efficiency 98.8% (CEC efficiency 98.3%) Nighttime PID recovery function (optional) Wide voltage range and low startup voltage 3/4 MPPT design, supports multiple orientation system design Safe Intelligent fan-cooling Integrated DC and AC disconnects Type 4X, C5 Anti-Corrosion Level AFCI protection, proactively reduces fire risk Integrated module level rapid shutdown transmitter High quality components from globally recognized suppliers Smart Supports RS485, Ethernet, WiFi, Cellular Intelligent string monitoring, smart I-V curve scan Scan to register on SolisCloud, supports remote upgrade and control Equipped with external power control interface, supporting zero output power control Economic > 1.5 DC/AC ratio Separable AC wiring box
