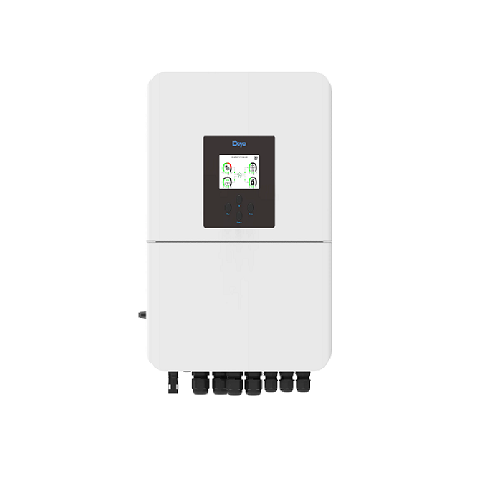

Deye Hybrid Inverter Single Phase 3KW-48V SUN Series 2 MPPT Low Voltage Battery Supported

Price 73307.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Deye Hybrid Inverter Single Phase 3KW-48V SUN Series 2 MPPT Low Voltage Battery Supported Specification

Maintenance Type
Natural Cooling

Features
Colorful touch LCD, AC couple to retrofit existing systems, Max 16 pcs parallel

Efficiency
97.6%

Input Voltage
150-425 Volt (V)

Product Type
Other

Power
3000 Watt (w)

Operating Temperature
-40 to +60 C Celsius (oC)

Max Voltage
3000 Watt (W)

Max System Voltage
3000 Watt (W)

Output Voltage
220/230 Volt (V)

Cable Length
NA Millimeter (mm)

Switch Mode
Other

Size
376 470 241.5

Dimension (L*W*H)
376 470 241.5 Millimeter (mm)

Color
NA

Weight
19 Kilograms (kg)

Warranty
10 Year

Application
Home, Industrial, Commercial

Type Of Technology
Other

Installation Type
Other

Deye Hybrid Inverter Single Phase 3KW-48V SUN Series 2 MPPT Low Voltage Battery Supported Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Telegraphic Transfer (T/T)

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Sample Available
No

Packaging Details
National Standard Packaging

Main Domestic Market
All India

Certifications
Grid: IEC 61727, G98, G99, etc.; Safety: IEC/EN 62109-1/-2

Deye Hybrid Inverter Single Phase 3KW-48V SUN Series 2 MPPT Low Voltage Battery Supported About

The Deye SUN SG05 LP3-EU-SM2 Series Hybrid Solar Inverter is a powerful and scalable solution designed for residential, commercial, and industrial solar systems. Available in a wide power range from 3kW to 12kW, this three-phase inverter ensures reliable performance, high efficiency, and seamless energy management across different applications.

This inverter supports both lithium-ion and lead-acid batteries, featuring an intelligent self-adaptive BMS charging system that enhances battery life and optimizes performance. With a battery voltage range of 4060V and high charge/discharge current capacity (up to 240A), it delivers strong and stable energy storage support.

Equipped with advanced MPPT technology (up to 2 MPPT / 4 strings), the inverter maximizes solar energy harvesting even under complex shading conditions. It supports a maximum PV input power up to 24,000W and operates within a wide MPPT voltage range of 200V650V, ensuring flexibility in system design.

With a maximum efficiency of 97.6% and MPPT efficiency above 99%, the system guarantees minimal energy loss and maximum output. Its three-phase (3L+N+PE) grid connection ensures balanced load distribution, making it ideal for high-demand environments.

Built for durability, the inverter features an IP65-rated enclosure and operates efficiently in extreme environments ranging from -40C to +60C. The intelligent air cooling system maintains optimal temperature with low noise levels (55dB).

Safety is reinforced with comprehensive protection mechanisms, including anti-islanding, surge protection (Type II DC/AC), short circuit protection, arc fault detection (optional), and insulation monitoring.

For smart energy management, the inverter supports multiple communication interfaces such as RS485, RS232, CAN, and optional WiFi, Bluetooth, GPRS, 4G, and LAN, enabling real-time monitoring and remote control.
