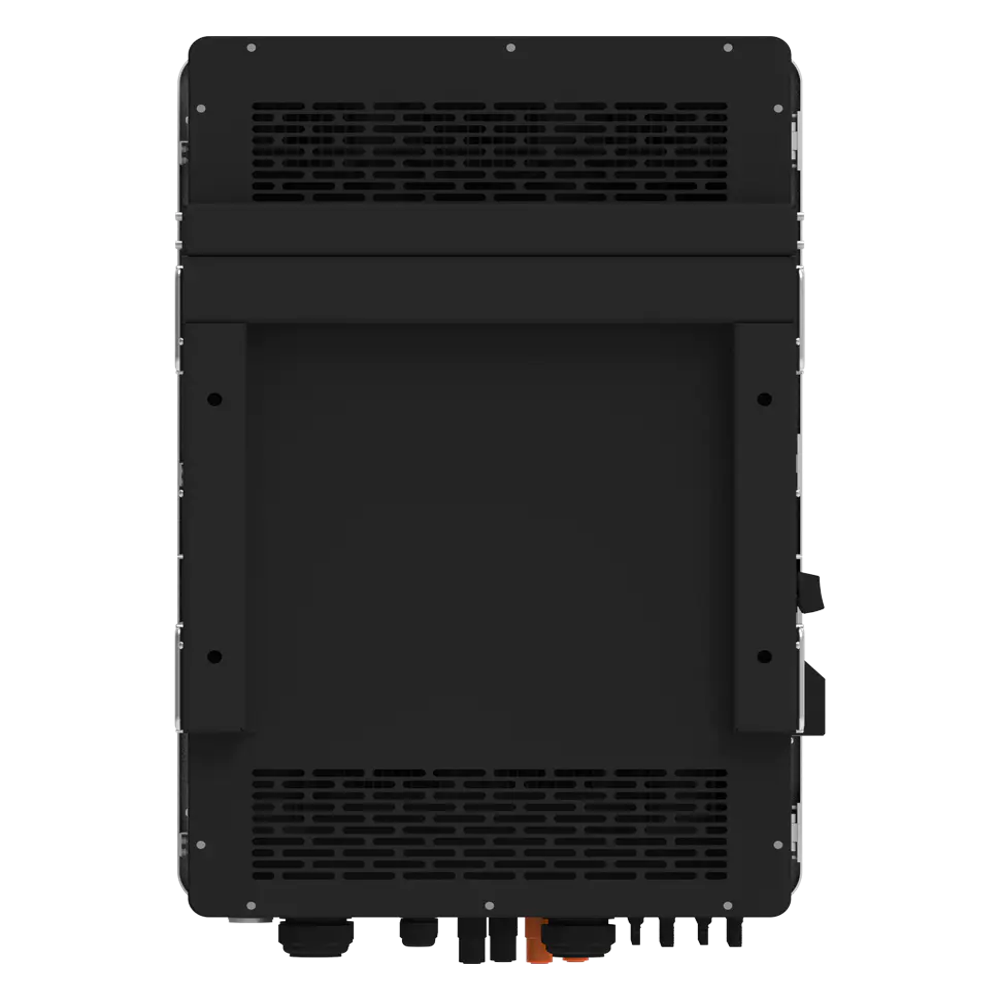

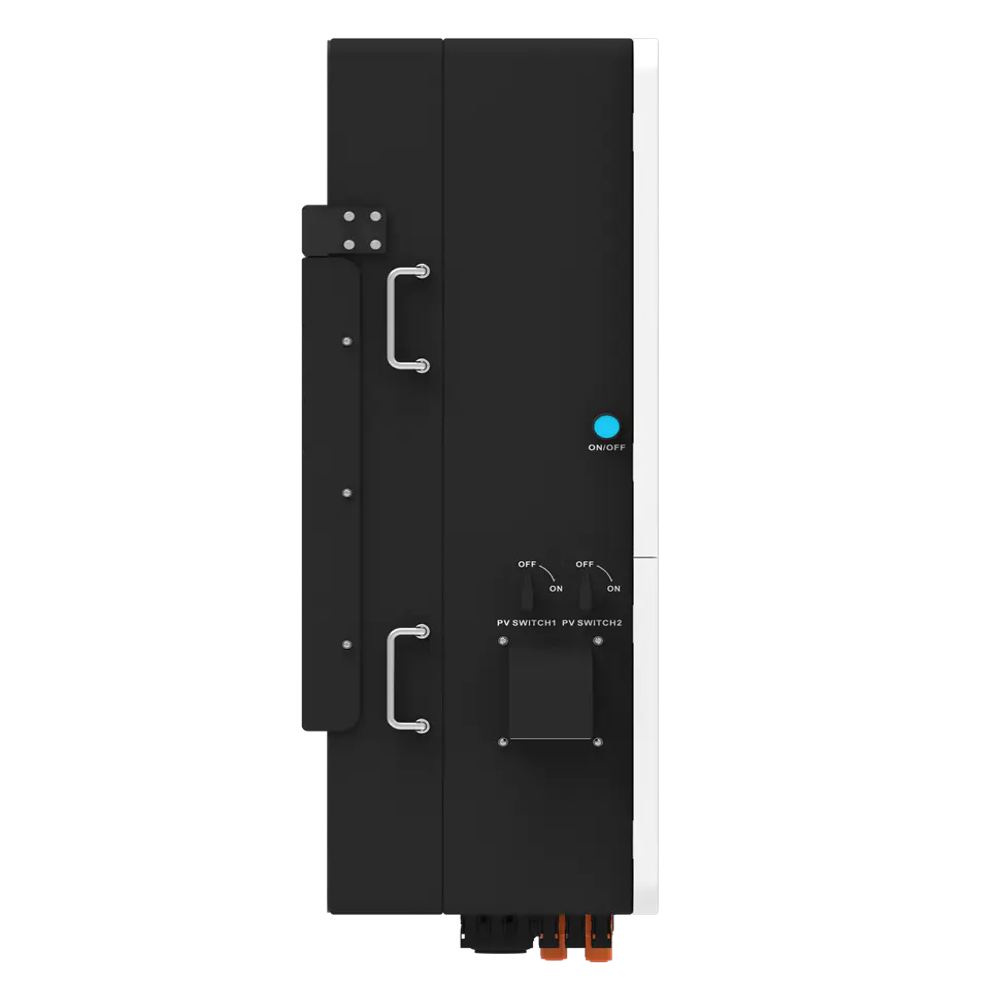

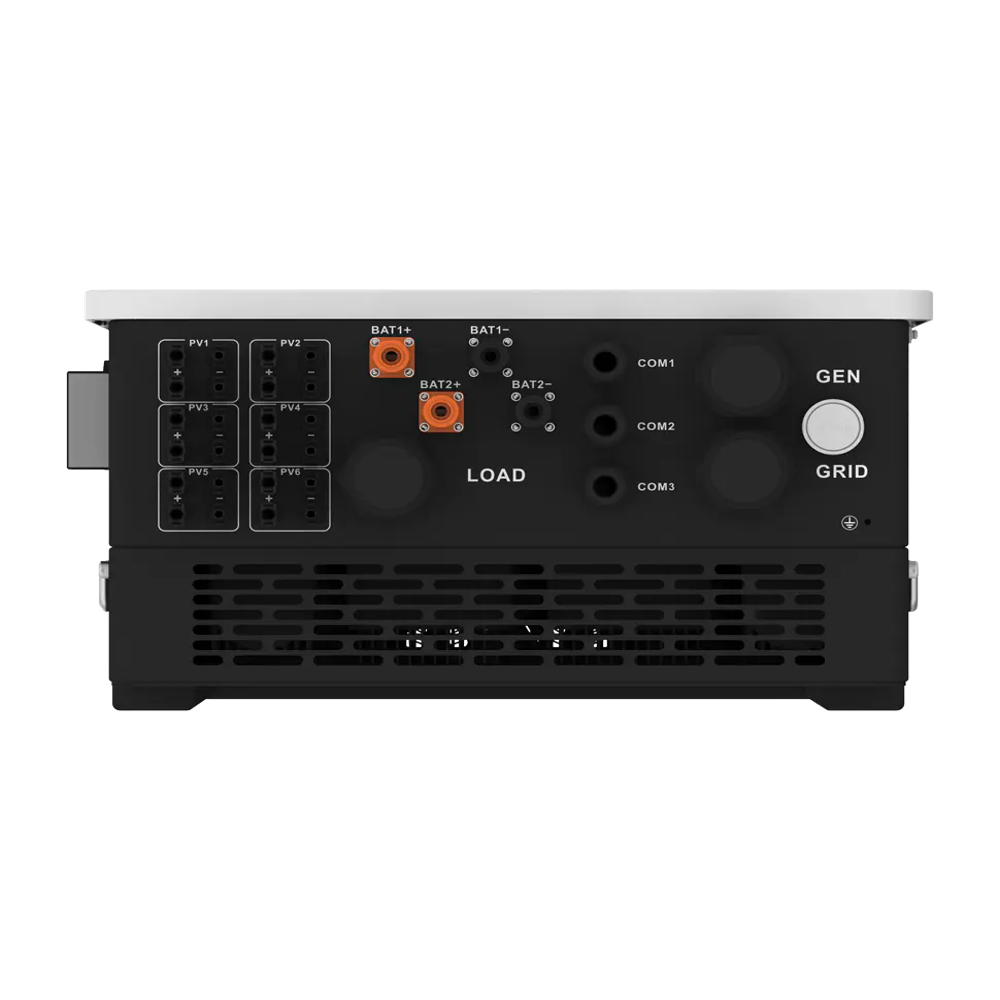

Deye 80kW Sun Series Three Phase Hybrid Inverter , 3/4 MPPT, High Voltage Battery Supported

Price 736164.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Deye 80kW Sun Series Three Phase Hybrid Inverter , 3/4 MPPT, High Voltage Battery Supported Specification

Efficiency
97.6%

Maintenance Type
Intelligent Air Cooling

Features
100% unbalanced output supported, max. 10 pcs parallel, max. charging/discharging current of 160A, AC couple functionality, 6 time periods for battery scheduling

Input Voltage
650 Volt (V)

Product Type
Other

Material
NA

Number of Cells
0

Power
80000 Watt (w)

Operating Temperature
-40 to +60 C Celsius (oC)

Max Voltage
80000 Watt (W)

Max System Voltage
80000 Watt (W)

Output Voltage
230/400 Volt (V)

Cable Length
NA Centimeter (cm)

Switch Mode
Other

Size
606 927 314

Dimension (L*W*H)
606 927 314 Millimeter (mm)

Color
NA

Weight
105 Kilograms (kg)

Warranty
10 Year

Application
Industrial, Commercial

Type Of Technology
Other

Installation Type
Other

Deye 80kW Sun Series Three Phase Hybrid Inverter , 3/4 MPPT, High Voltage Battery Supported Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Telegraphic Transfer (T/T)

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Sample Available
Yes

Packaging Details
national standard packaging

Main Domestic Market
All India

Certifications
Grid Regulation: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105; Safety/EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

About Deye 80kW Sun Series Three Phase Hybrid Inverter , 3/4 MPPT, High Voltage Battery Supported

Ultimate Capacity for Commercial and Utility-Scale Projects The Deye SUN-80K-SG02HP3 series is a high-power powerhouse designed to meet the rigorous energy demands of large-scale commercial facilities and utility-scale applications. Supporting an incredible Max PV Access Power of up to 160kW, this series is built around an ultra-high-voltage battery interface (up to 1000V). With 6 independent MPPT trackers and a maximum operating input current of 36A per string, it offers unparalleled flexibility in string design, allowing for maximum energy harvest from large bifacial and high-efficiency solar arrays. The systems ability to deliver 1.5 times its rated power for off-grid peaks ensures that even the most demanding industrial motor loads can be handled with absolute stability.

Enhanced Reliability and Smart Infrastructure Management Engineering excellence is at the core of this series, featuring a Max Efficiency of 98.7%one of the highest in its classto minimize energy waste and maximize ROI. For robust operation, it includes Type II Surge Protection for both DC and AC, an integrated DC switch, and optional Arc Fault Circuit Interrupter (AFCI) technology. Despite its massive 80kW output, the unit maintains intelligent thermal management through air cooling and is IP65-rated for durability in harsh outdoor environments. Comprehensive communication via RS485, CAN, and various wireless options (Wi-Fi/4G/GPRS) allows for seamless integration into smart microgrids, making it the definitive choice for businesses aiming for energy independence and grid-supportive reliability.
