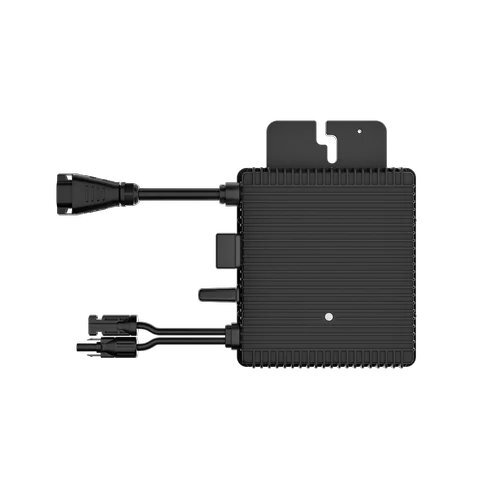

HMS-450-1WB Hoymiles 450W HiFlow Pro Single Phase Microinverter

Send Inquiry

Request To Call Back

HMS-450-1WB Hoymiles 450W HiFlow Pro Single Phase Microinverter

Name: HMS-450-1WB Hoymiles 450W HiFlow Pro Single Phase Microinverter
Brand: LAVANCHA RENEWABLE ENERGY PRIVATE LIMITED
Price: 49000 INR
Availability: InStock

Price 49000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HMS-450-1WB Hoymiles 450W HiFlow Pro Single Phase Microinverter Specification

Maintenance Type
Low Maintenance

Features
IP67 Waterproof; Rapid Shutdown; Low Startup Voltage; Module-level Monitoring

Efficiency
96.5% Max Efficiency

Input Voltage
16-60V DC

Product Type
Single Phase Microinverter

Material
Aluminium Alloy

Number of Cells
Designed for 1 PV Module

Power
450W

Operating Temperature
-40C to +65C

Max Voltage
60V DC

Max System Voltage
60V DC

Output Voltage
220-230V AC

Cable Length
1.3 meters

Switch Mode
Automatic

Size
Compact

Dimension (L*W*H)
182 x 164 x 33 mm

Color
Grey

Weight
1.6 kg

Application
Residential & Commercial PV Systems

Type Of Technology
HiFlow Pro Microinverter Technology

Installation Type
Direct Mounting on PV Module or Racking

Output Current
2.17A Max

Night Power Consumption
<50mW

Enclosure Protection
IP67 (Dust & Waterproof)

Rated Output Frequency
50/60 Hz

Protection
Over/Under Voltage, Over/Under Frequency, Over Temperature, Anti-Islanding, Short Circuit Protection

Communication
2.4GHz Wireless, Sub-1Ghz Optional

Relative Humidity
0% to 100% Non-Condensing

MPPT Voltage Range
16-60V

HMS-450-1WB Hoymiles 450W HiFlow Pro Single Phase Microinverter Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About HMS-450-1WB Hoymiles 450W HiFlow Pro Single Phase Microinverter

Experience the prodigious performance of the HMS-450-1WB Hoymiles 450W HiFlow Pro Single Phase Microinverter. Pick yours to elevate your solar installation with a first-class device engineered for both residential and commercial PV systems. Its affordable price point delivers lofty efficiency up to 96.5%, while ensuring robust protection with IP67 enclosure, rapid shutdown, and comprehensive voltage management. Designed for direct mounting on your PV module or racking, this compact microinverter offers reliable operation, low maintenance, and top-tier communication options via 2.4GHz Wireless or Sub-1GHz. A true standout in advanced solar technology.

Commercial Excellence and Application of HMS-450-1WB Microinverter

The HMS-450-1WB Hoymiles Microinverter stands out in commercial installation due to its flexible application methods and prodigious efficiency. Directly mounted onto a PV module or racking, this inverter is ideal for sizable solar arrays. Its main advantage lies in module-level monitoring and rapid shutdown capability, ensuring both high performance and dependable safety for commercial solar projects, spanning office complexes, manufacturing plants, and retail facilities.

Certifications, Export Readiness, and Sample Policy for HMS-450-1WB

Certified for stringent quality standards, the HMS-450-1WB is ready for global markets, making it a trusted choice for commercial and residential buyers. Arrival of stock is guaranteed for top export destinations, with dispatching processes designed for timely delivery. Sample policy accommodates initial evaluation needs, ensuring customers can verify the microinverter's first-class standards before large-scale orders. Stock is ready, ensuring a smooth procurement experience worldwide.

FAQ's of HMS-450-1WB Hoymiles 450W HiFlow Pro Single Phase Microinverter:

Q: How does the HMS-450-1WB Microinverter protect against electrical and environmental risks?

A: The HMS-450-1WB is equipped with over/under voltage, over/under frequency, over temperature, anti-islanding, and short circuit protections. Its IP67-rated enclosure ensures dust and waterproof protection for robust outdoor use.

Q: What types of PV modules can be connected to this microinverter?

A: This microinverter is designed for single PV modules with input voltages ranging from 16V to 60V DC and maximum output current of 2.17A, making it compatible with most standard solar panel configurations.

Q: Where can the HMS-450-1WB be installed and used effectively?

A: Thanks to its compact build and direct mounting method, the HMS-450-1WB can be installed on residential rooftops or commercial racking systems. It performs reliably in a variety of climates, from -40C to +65C.

Q: What is the process for ordering and receiving samples of this microinverter?

A: Customers interested in sampling the HMS-450-1WB can request units as per the supplier's sample policy. Stock is ready for immediate dispatch, ensuring swift arrival and inspection before bulk procurement.

Q: What commercial benefits does this microinverter offer over traditional inverters?

A: The microinverter's module-level monitoring and rapid shutdown functions provide increased system performance, ease of maintenance, and enhanced safety compared to string inverters, making it particularly advantageous for commercial applications.

Q: When is the product ready for dispatching upon order confirmation?

A: Stock is maintained and managed for quick fulfillment, so the microinverter is ready for immediate dispatch once the order is confirmed, minimizing waiting times for customers.
