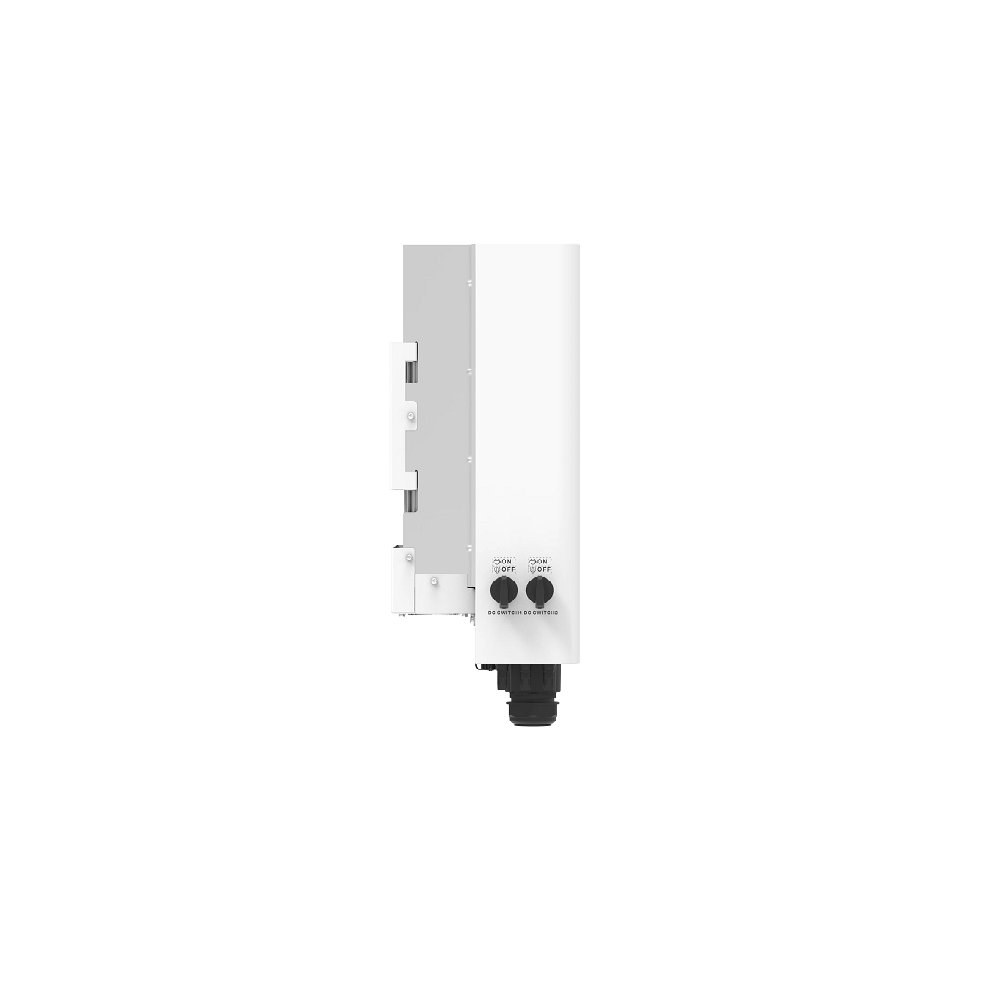

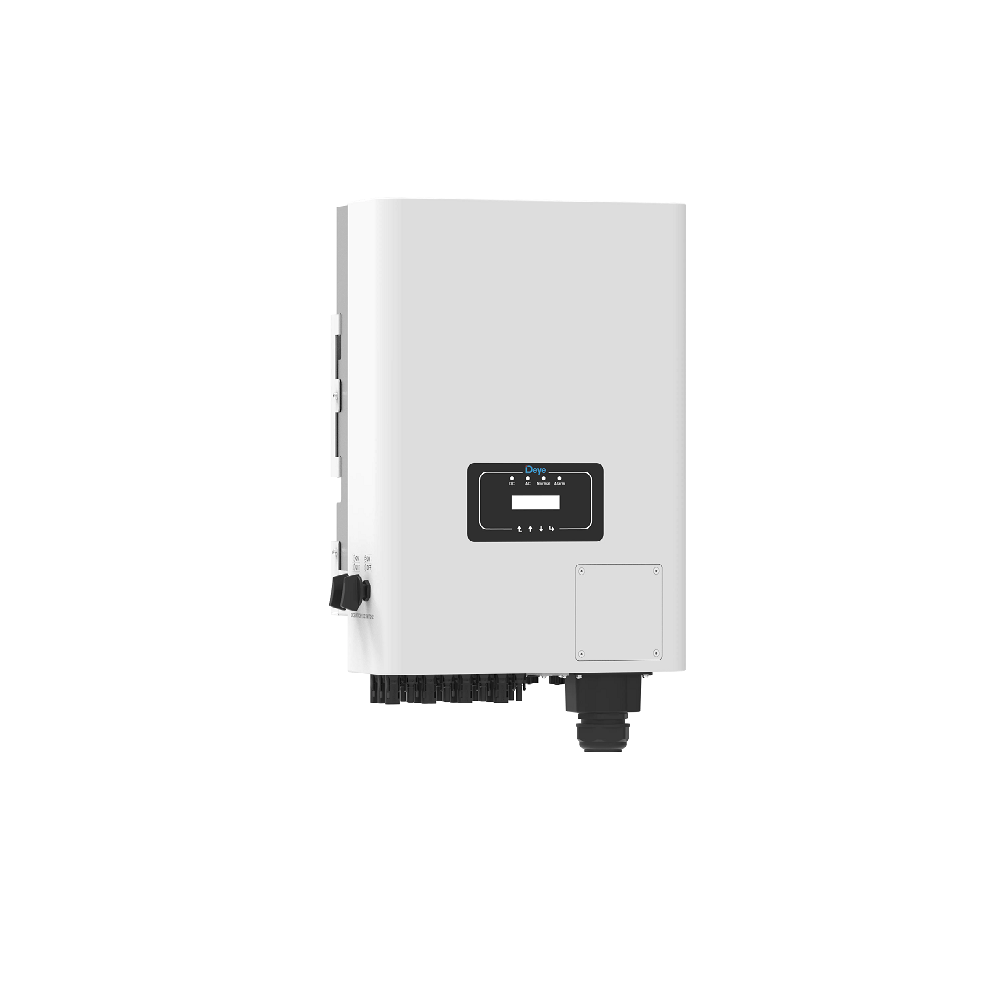

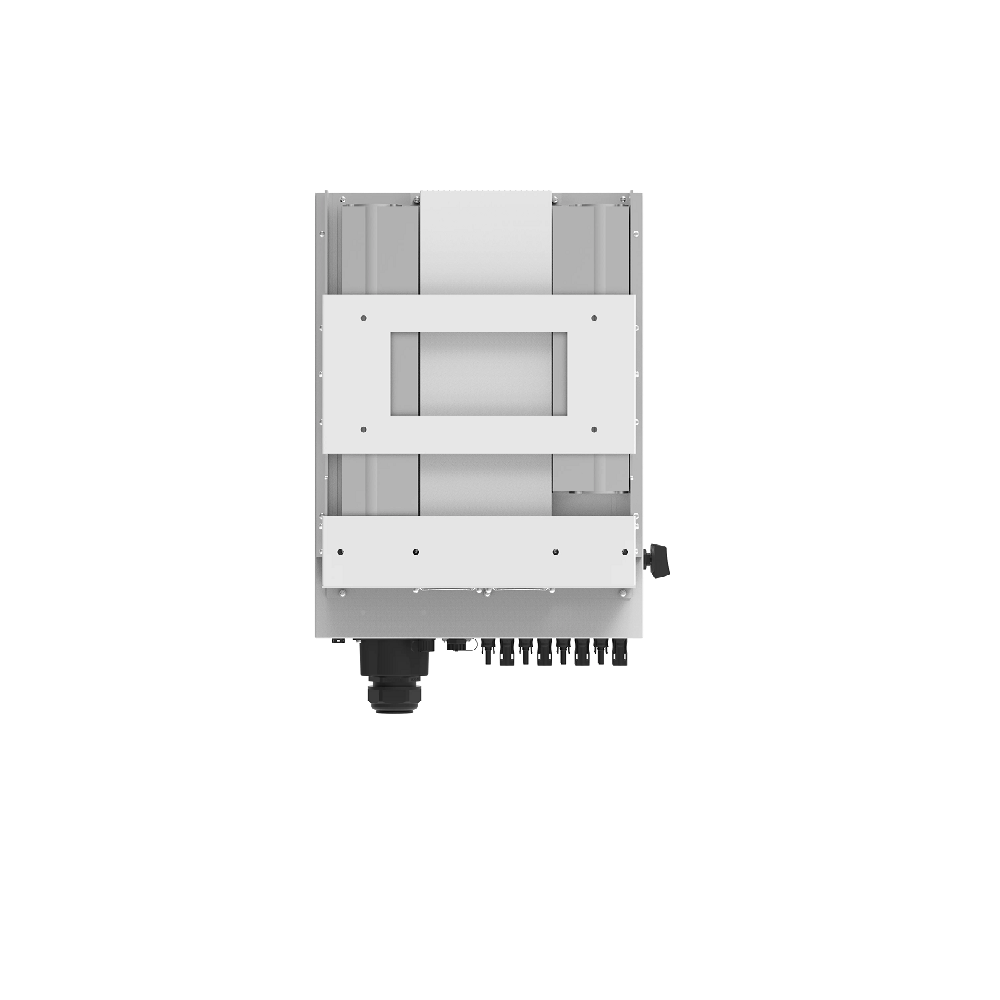

Deye 40kW On Grid Strind Inverter Three Phase

Deye 40kW On Grid Strind Inverter Three Phase About

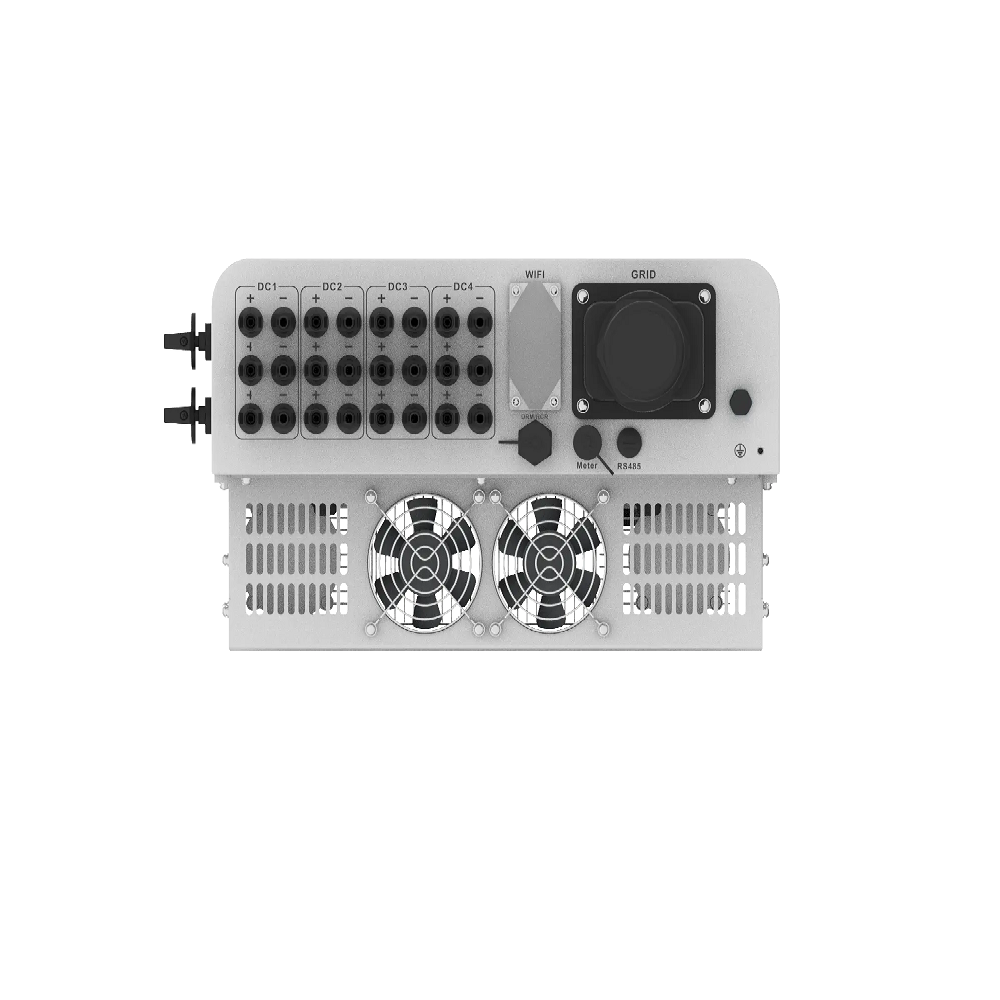

High-Capacity Efficiency: This commercial-rade series handles massive solar arrays with up to 75 kW maximum PV input power , delivering a top-tier conversion efficiency of up to 98.7% and an MPPT tracking efficiency greater than 99%.  Up to 4 MPP Trackers: It features up to 4 independent MPP trackers with a highly flexible string layout (up to 3+3+3+3 configuration), maximizing power harvest across complex commercial roofs with multi-directional angles or shading issues.  Smart Power Regulation: It supports native Zero Export and Virtual Synchronous Generator (VSG) applications, providing complete flexibility to manage or completely restrict the amount of solar power fed back into the electrical grid.  Comprehensive System Safeguards: The unit provides ultimate hardware safety with built-in TYPE II surge protection on both the DC and AC sides , integrated DC switches , and a complete array of protections including reverse polarity, short circuit, and residual current detection.  Heavy-Duty Weatherproofing and Cooling: With its rugged IP65 ingress protection rating, it can easily be installed in harsh outdoor environments. An Intelligent Air Cooling system actively manages the high heat generated by massive loads while keeping operating noise below 65 dB.  Diverse Built-In Communications: Unlike smaller models, it features a built-in LCD1602 display and incorporates standard integration for multiple communication interfaces, including RS485, RS232, WIFI, and LAN out of the box.  Wide Input Voltage Framework: It features a wide operational MPPT window of 200V to 1000V with a maximum absolute input tolerance of 1100V, allowing engineers to design long, highly cost-effective panel string configurations.
