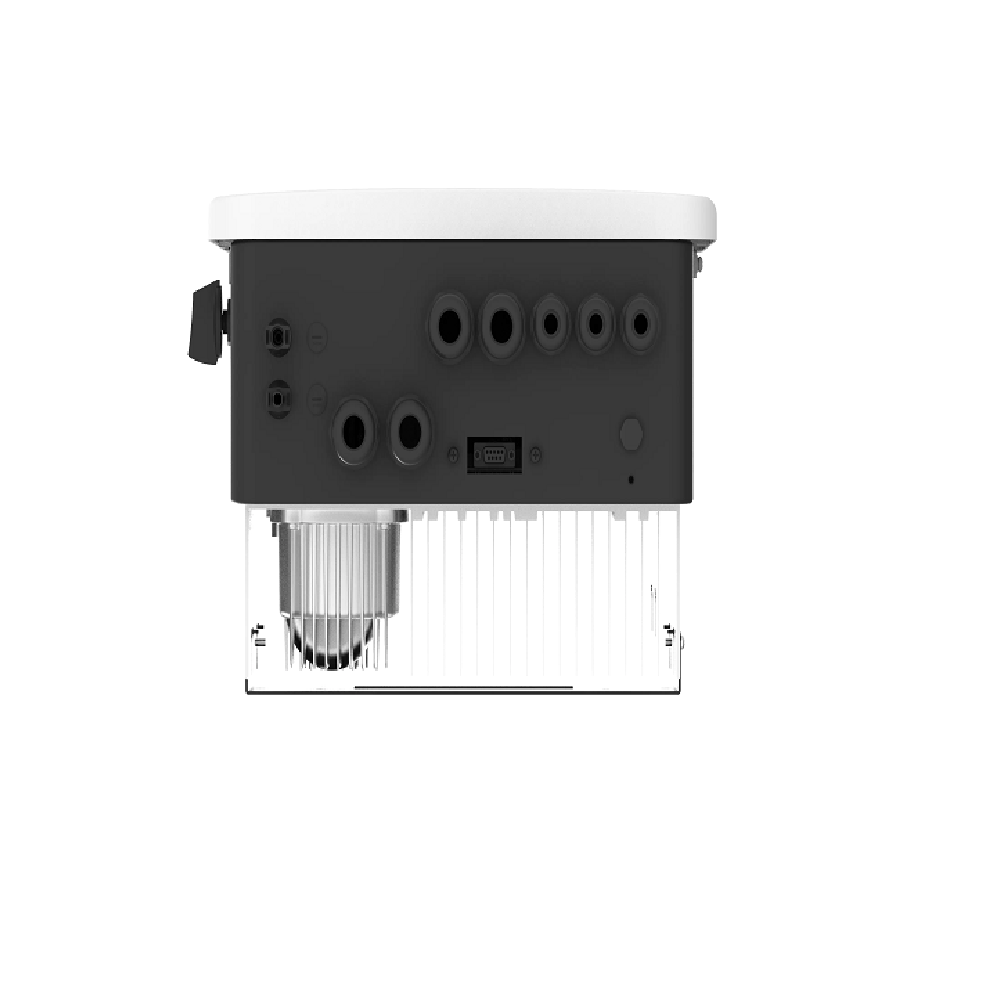

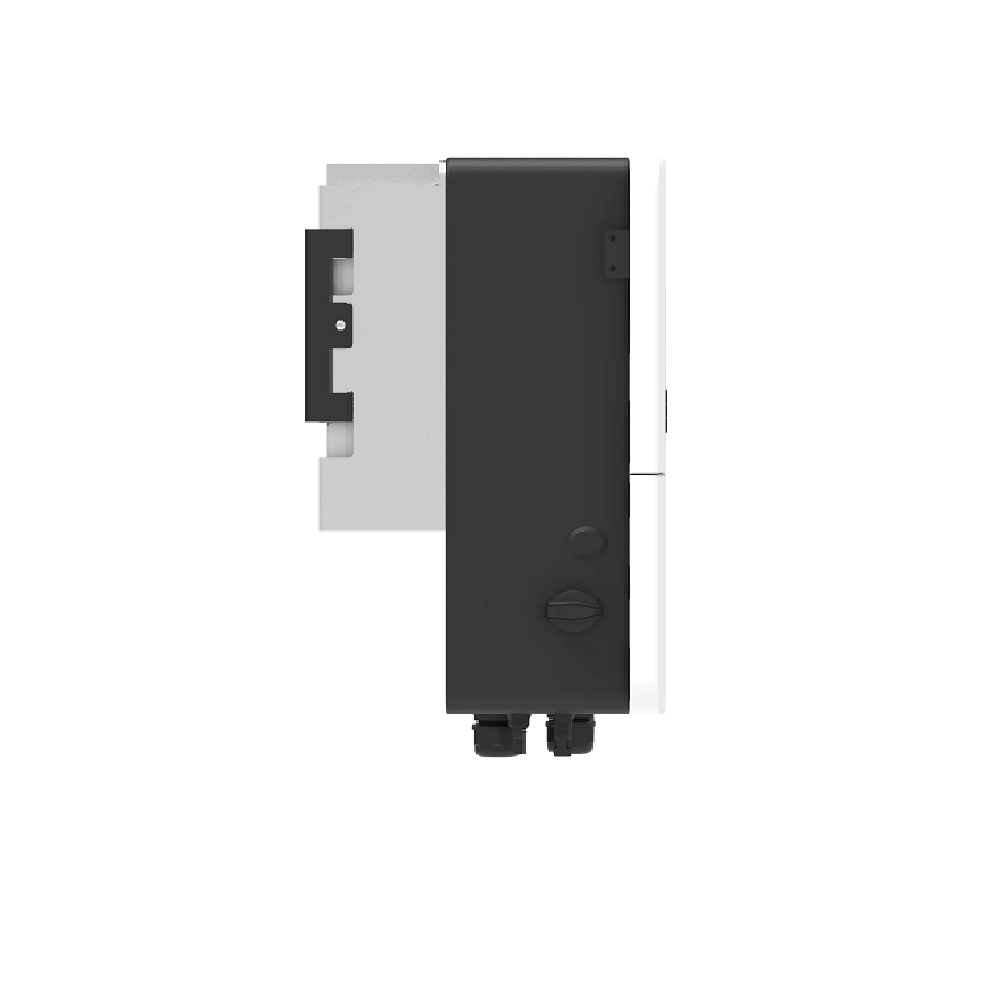

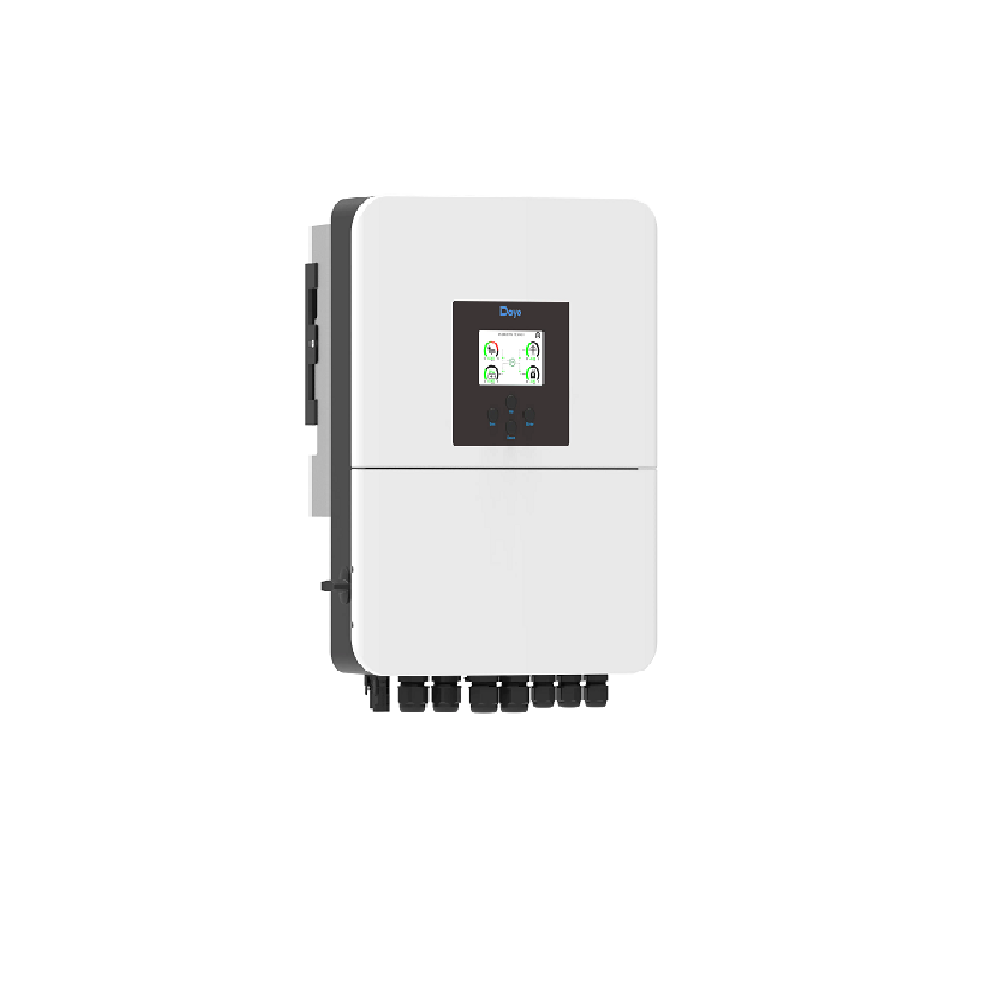

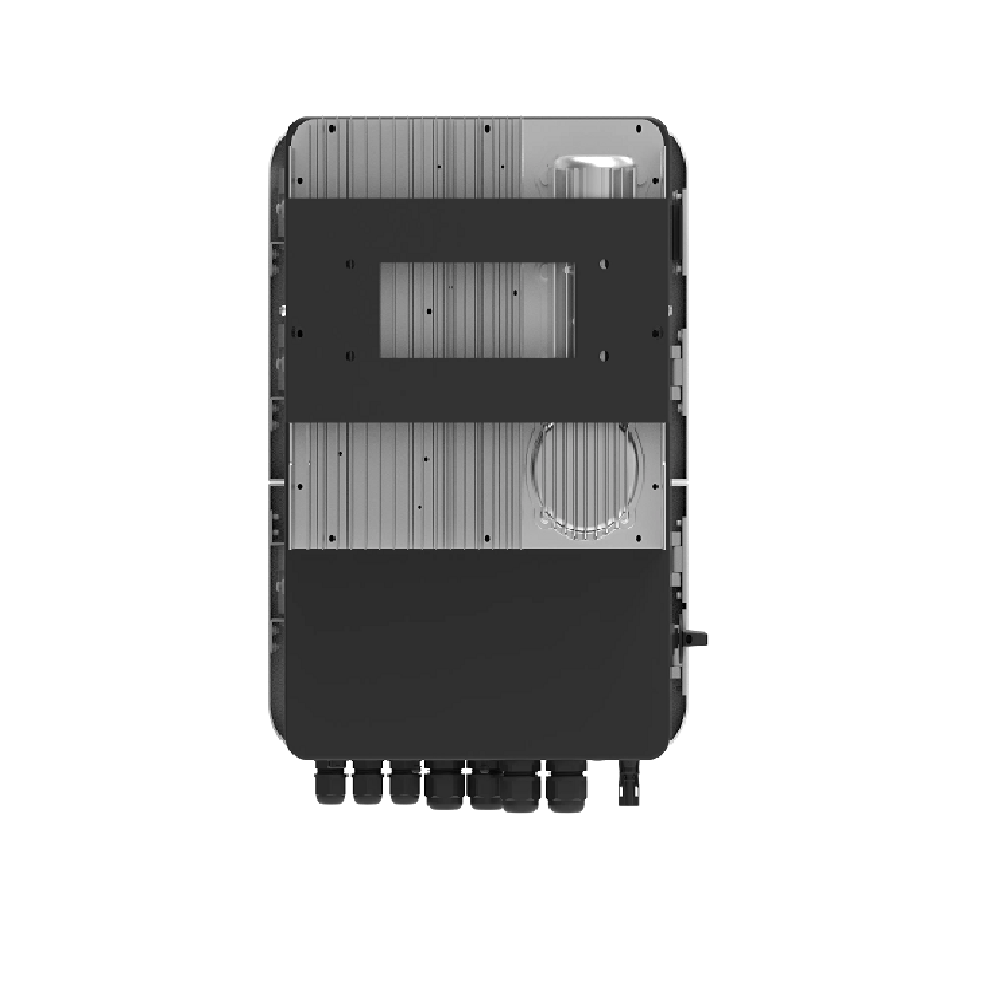

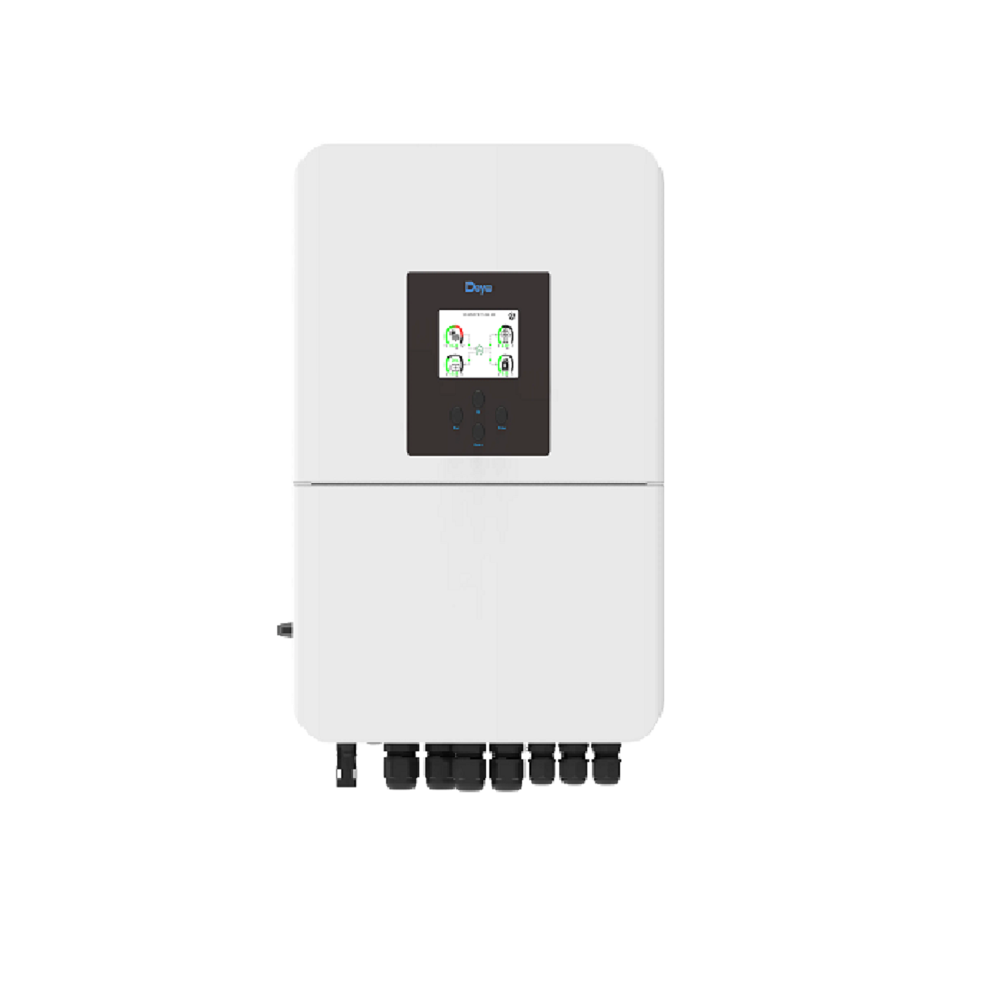

Deye 3.6KW 48V Sun Series Single Phase Hybrid Inverter, 2 MPPT, Low Valtage Battery Supported

Name: Deye 3.6KW 48V Sun Series Single Phase Hybrid Inverter, 2 MPPT, Low Valtage Battery Supported
Brand: LAVANCHA RENEWABLE ENERGY PRIVATE LIMITED
Price: 78101.0 INR
Availability: InStock

Price 78101.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Deye 3.6KW 48V Sun Series Single Phase Hybrid Inverter, 2 MPPT, Low Valtage Battery Supported Specification

Maintenance Type
Natural Cooling

Input Voltage
150-425V Volt (V)

Features
Colorful touch LCD, AC couple to retrofit existing systems, Max 16 pcs parallel

Efficiency
97.6%

Product Type
Other

Power
3600 Watt (w)

Operating Temperature
-40 to +60 C Celsius (oC)

Max Voltage
3600 Watt (W)

Max System Voltage
3600 Watt (W)

Output Voltage
220/230 Volt (V)

Cable Length
NAS Millimeter (mm)

Switch Mode
Other

Size
376 470 241.5

Dimension (L*W*H)
376 470 241.5 Millimeter (mm)

Color
NA

Weight
19 Kilograms (kg)

Warranty
10 Year

Application
Commercial , Home, Industrial

Type Of Technology
Other

Installation Type
Other

Deye 3.6KW 48V Sun Series Single Phase Hybrid Inverter, 2 MPPT, Low Valtage Battery Supported Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Telegraphic Transfer (T/T), Paypal

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Sample Available
No

Packaging Details
National Standard Packaging

Main Domestic Market
All India

Certifications
Grid: IEC 61727, G98, G99, etc.; Safety: IEC/EN 62109-1/-2

About Deye 3.6KW 48V Sun Series Single Phase Hybrid Inverter, 2 MPPT, Low Valtage Battery Supported

The Deye SUN SG05LP1-EU-AM2-P Series Hybrid Solar Inverter is an advanced single-phase energy solution designed for residential and light commercial solar systems. With power options ranging from 3.6kW to 10kW, this inverter delivers high performance, flexibility, and reliable energy management for modern solar applications.

Supporting both lithium-ion and lead-acid batteries, the inverter features a self-adaptive BMS charging system that ensures optimized charging, longer battery life, and safe operation. With a battery voltage range of 4060V and high charging/discharging current up to 210A, it is built for efficient energy storage and usage.

The inverter is equipped with dual MPPT technology, allowing efficient solar energy tracking across multiple strings. It supports up to 20kW PV access power and operates within a wide MPPT voltage range of 150V425V, ensuring maximum energy harvest even in variable sunlight conditions.

Delivering a maximum efficiency of 97.6% and MPPT efficiency above 99%, this inverter minimizes energy losses and maximizes output. It also supports high AC passthrough capacity (up to 50A) and provides 2x peak power in off-grid mode, ensuring reliable backup during outages.

Designed for durability, the inverter features an IP65-rated enclosure, making it suitable for outdoor installations. It operates efficiently in extreme conditions ranging from -40C to +60C and uses intelligent air cooling for optimal thermal management with low noise (<45dB).

Advanced safety features include anti-islanding protection, DC reverse polarity protection, short circuit protection, surge protection (Type II DC/AC), and optional arc fault circuit interrupter, ensuring complete system safety.

With multiple communication options such as RS485, CAN, WiFi, Bluetooth, 4G, and LAN, users can monitor and control their system in real time through smart platforms.
