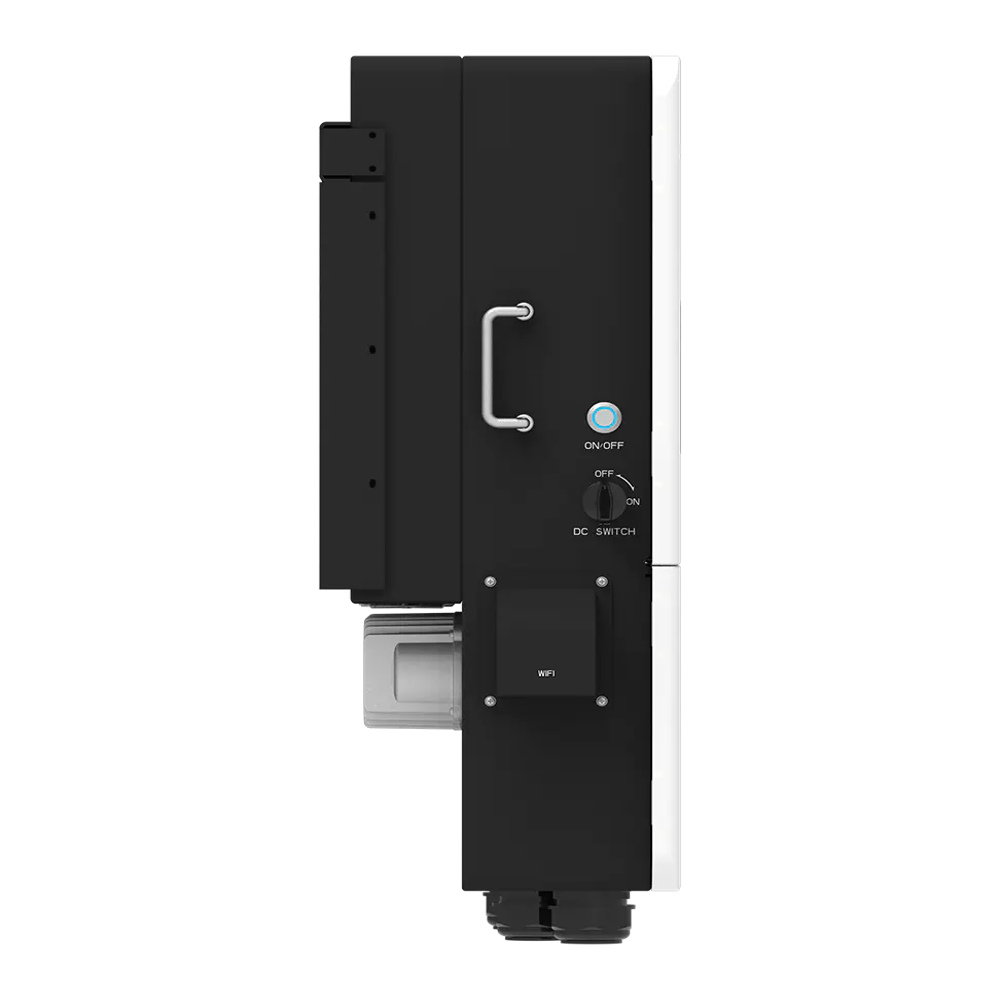

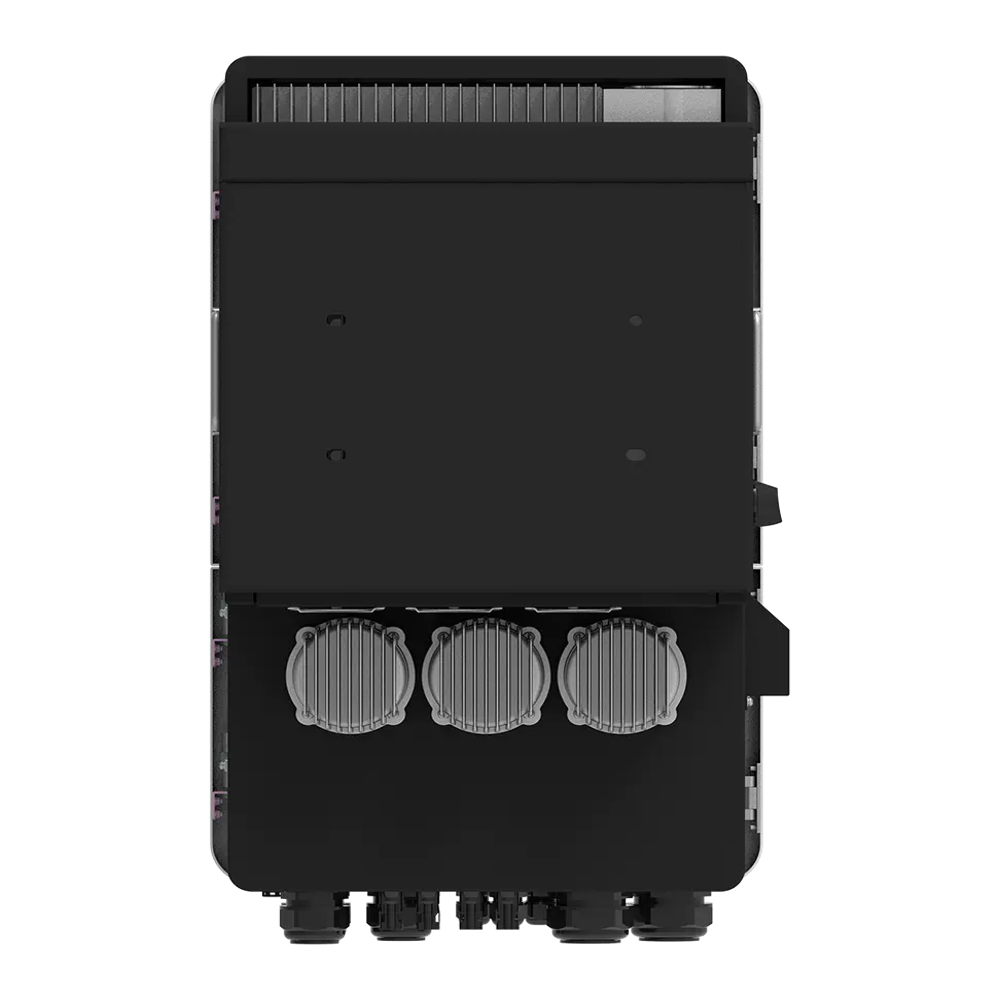

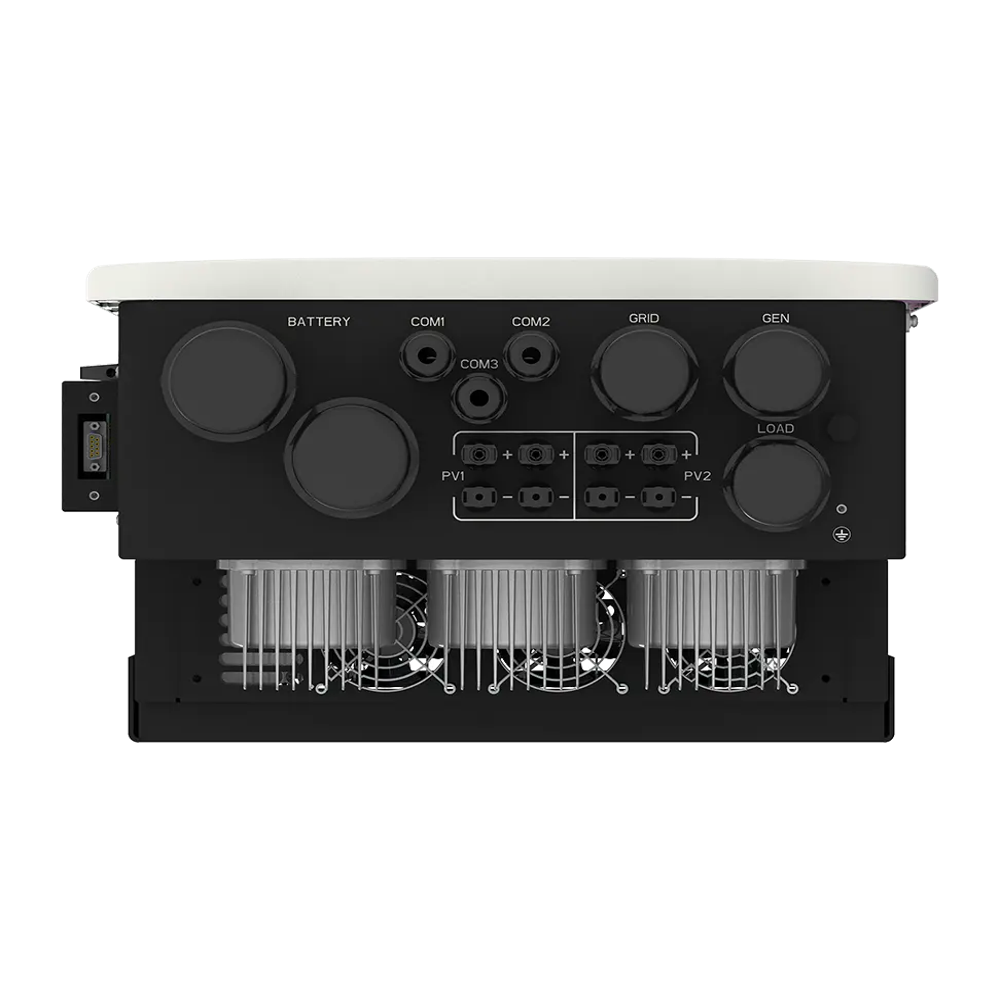

Deye 20KW48V Sun Series Three Phase Hybrid Inverter, 2 MPPT, Low Valtage Battery Supported

Price 298719.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Deye 20KW48V Sun Series Three Phase Hybrid Inverter, 2 MPPT, Low Valtage Battery Supported Specification

Efficiency
97.6%

Input Voltage
550 Volt (V)

Features
100% unbalanced output supported, max. 10 pcs parallel , max. charging/discharging current of 350A , 6 time periods for battery scheduling

Maintenance Type
Intelligent Air Cooling

Product Type
Other

Material
NA

Number of Cells
0

Power
20000 Watt (w)

Operating Temperature
-40 to +60 C Celsius (oC)

Max Voltage
20000 Watt (W)

Max System Voltage
20000 Watt (W)

Output Voltage
230/400 Volt (V)

Cable Length
NA Centimeter (cm)

Switch Mode
Other

Size
456 750 268.5

Dimension (L*W*H)
456 750 268.5 Millimeter (mm)

Color
NA

Weight
51.9 Kilograms (kg)

Warranty
12 year

Application
Home, Industrial, Commercial

Type Of Technology
Other

Installation Type
Other

Deye 20KW48V Sun Series Three Phase Hybrid Inverter, 2 MPPT, Low Valtage Battery Supported Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Telegraphic Transfer (T/T)

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Sample Available
Yes

Packaging Details
national standard packaging

Main Domestic Market
All India

Certifications
Grid Regulation: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105; Safety/EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

About Deye 20KW48V Sun Series Three Phase Hybrid Inverter, 2 MPPT, Low Valtage Battery Supported

Here is the professional description in English, broken into two comprehensive paragraphs:

High-Performance Power & Versatile Phase Management The Deye SUN-14/15/16/18/20K-SG05LP3 series represents a cutting-edge solution for modern three-phase solar energy systems. Designed with a unique 48V low-voltage battery architecture, it provides a safer and more cost-effective energy storage integration compared to high-voltage alternatives. A standout feature of this series is its 100% unbalanced output capability, allowing users to distribute up to 50% of the rated power on a single phase, which is essential for managing diverse household or commercial loads. With a massive charging and discharging current of up to 350A and a peak efficiency of 97.6%, this inverter ensures that your high-efficiency PV modules deliver maximum performance even under heavy demand.

Smart Integration & Robust Industrial Design Built for maximum flexibility, this hybrid inverter supports the parallel connection of up to 10 units, making it highly scalable for both on-grid and off-grid applications. It features an AC-coupling function that allows for easy retrofitting of existing solar installations, and it even supports storing energy directly from a diesel generator. The system is equipped with a sophisticated 6-stage time-period schedule for battery management, optimizing energy use and reducing grid dependence. Protected by an IP65-rated enclosure and featuring integrated Type II surge protection (AC/DC), the unit is engineered for long-term reliability in harsh environments, supported by smart monitoring options via Wi-Fi, GPRS, or LAN.
