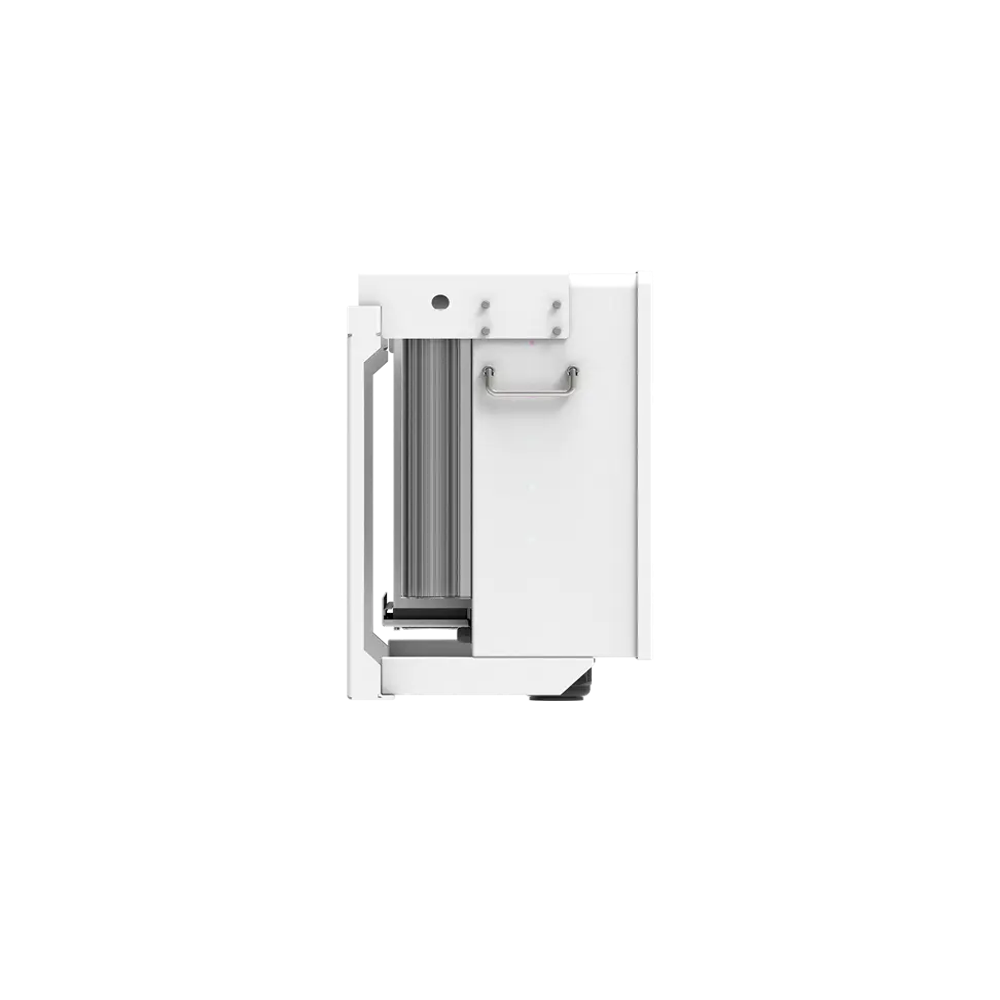

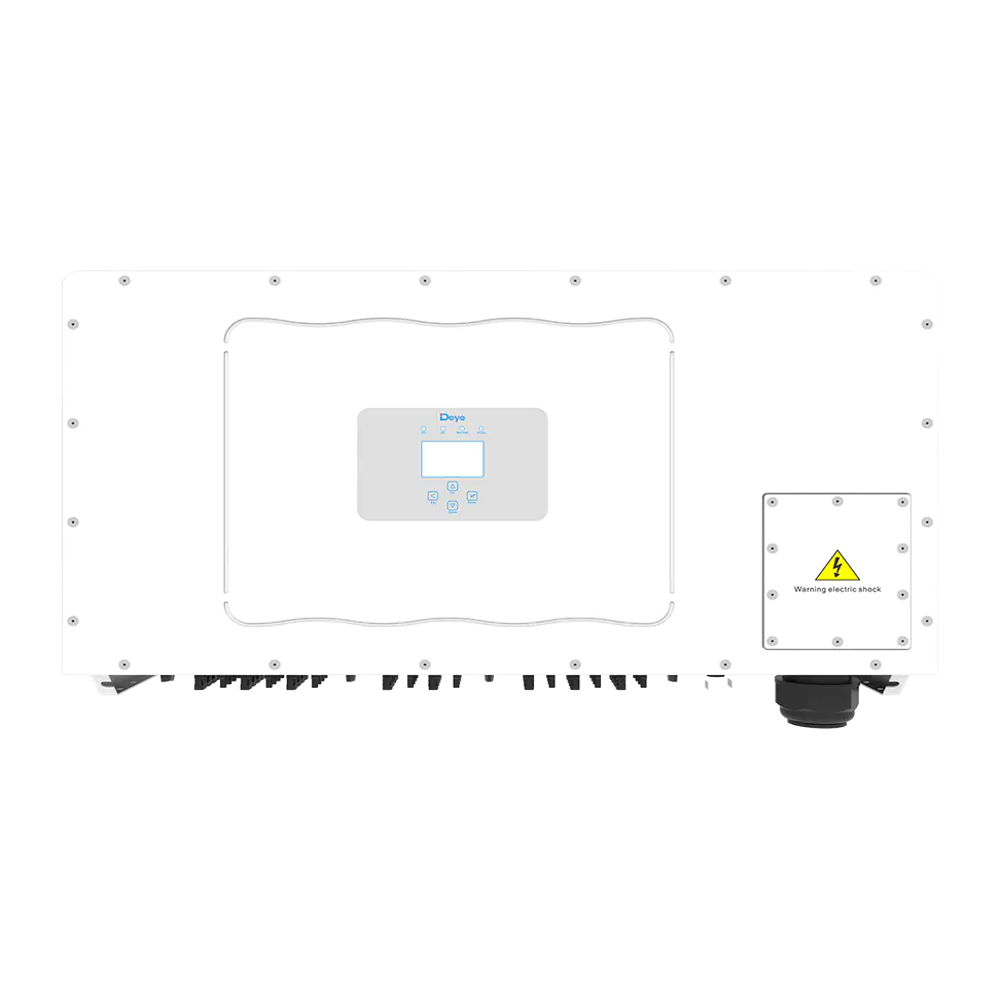

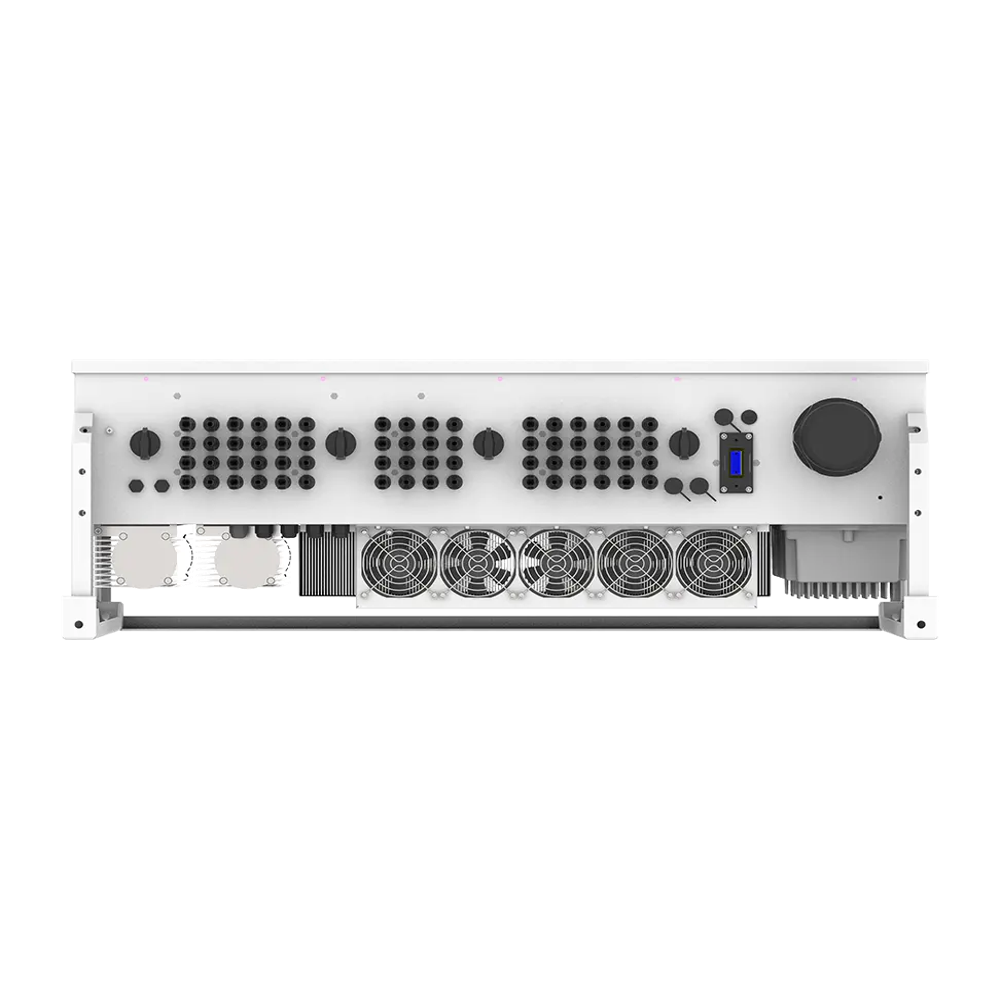

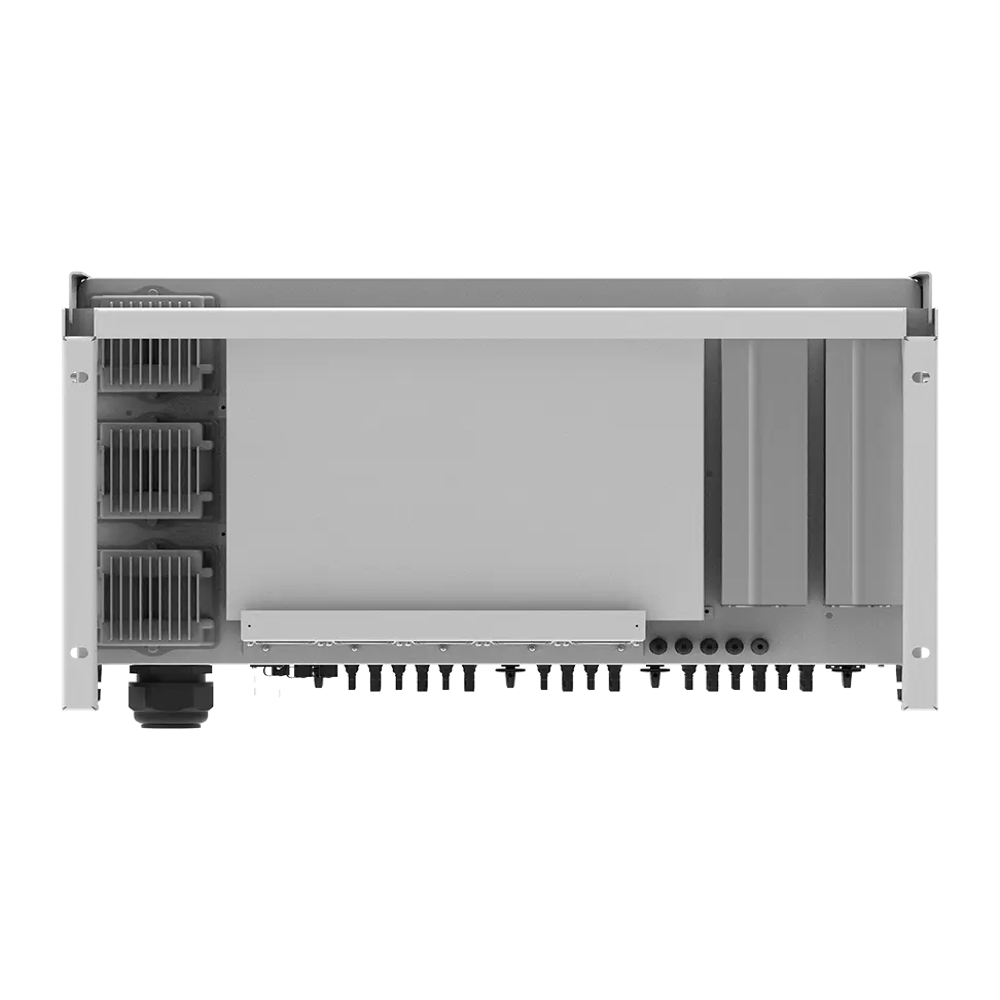

Deye 136kW On Grid Strind Inverter Three Phase

Deye 136kW On Grid Strind Inverter Three Phase About

Massive Utility-Scale Output & Efficiency: This heavy-duty series supports expansive utility or large commercial solar arrays by managing up to 204 kW maximum PV input power. It achieves a peak conversion efficiency of up to 98.8% and an MPPT tracking efficiency greater than 99%.  8 Independent MPP Trackers: It comes equipped with 8 independent MPP trackers featuring a highly dense 4+4+4+4+4+4+4+4 string configuration. This offers unparalleled flexibility to maximize energy generation across complex site topography or multiple roof structures with distinct orientations and shading profiles.  Smart Power Management: It natively supports Zero Export applications and Virtual Synchronous Generator (VSG) applications , empowering project operators to precisely control or restrict the volume of solar energy fed back into the electrical grid.  All-Inclusive Hardware Safety: The series comes standard with Type II DC and AC surge protection devices (SPD) alongside an integrated DC Switch. It features comprehensive safety measures including DC reverse polarity protection , output short-circuit protection , and residual current detection.  Weatherproof and Quiet Active Cooling: It carries an IP65 ingress protection rating for resilient outdoor deployment. It relies on an Intelligent Air Cooling system to manage large-scale thermal loads while keeping operating noise levels low at $\le$ 65 dB.  Versatile Asset Monitoring: It includes standard RS485 and RS232 communication interfaces while supporting a broad suite of optional monitoring modes, such as GPRS, WIFI, Bluetooth, 4G, and LAN, ensuring straightforward remote performance tracking.  Wide Engineering Layout Window: It handles a broad operating MPPT voltage range from 200V to 1000V with a maximum input voltage tolerance of 1100V , allowing designers to construct long, highly cost-effective panel strings to minimize balance-of-system costs
