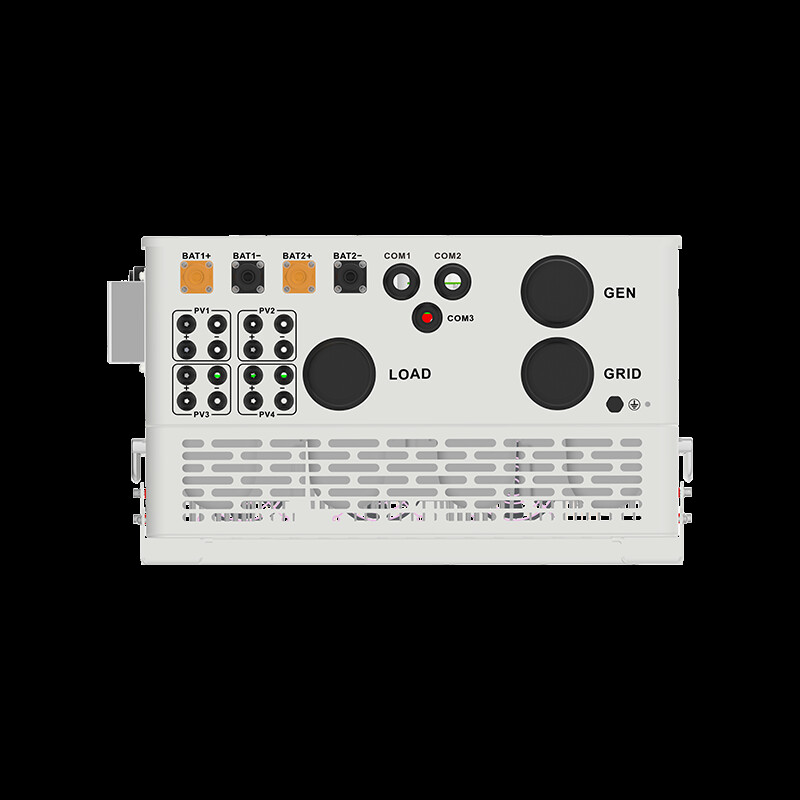

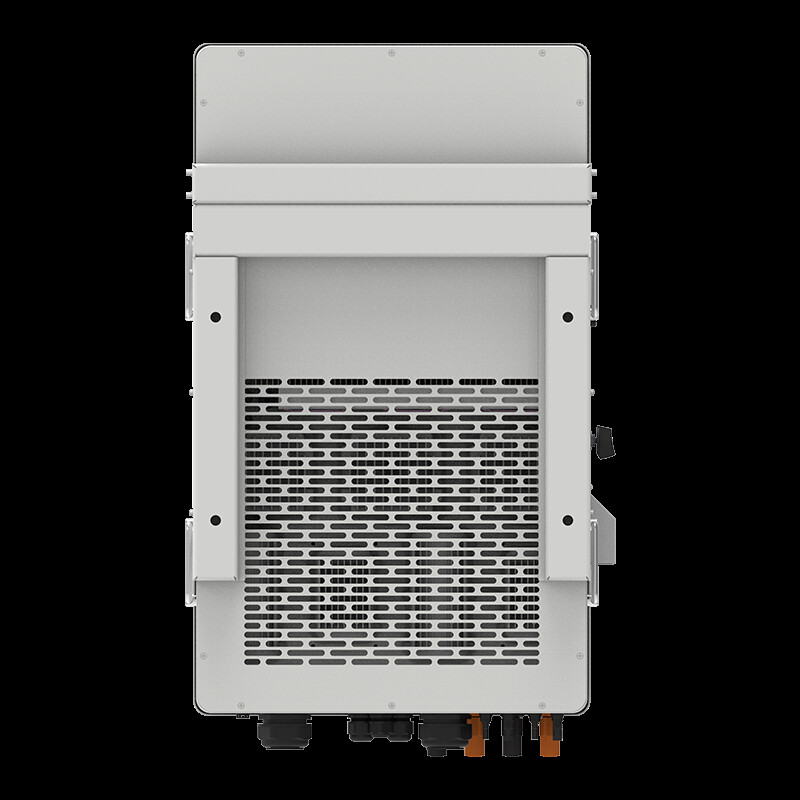

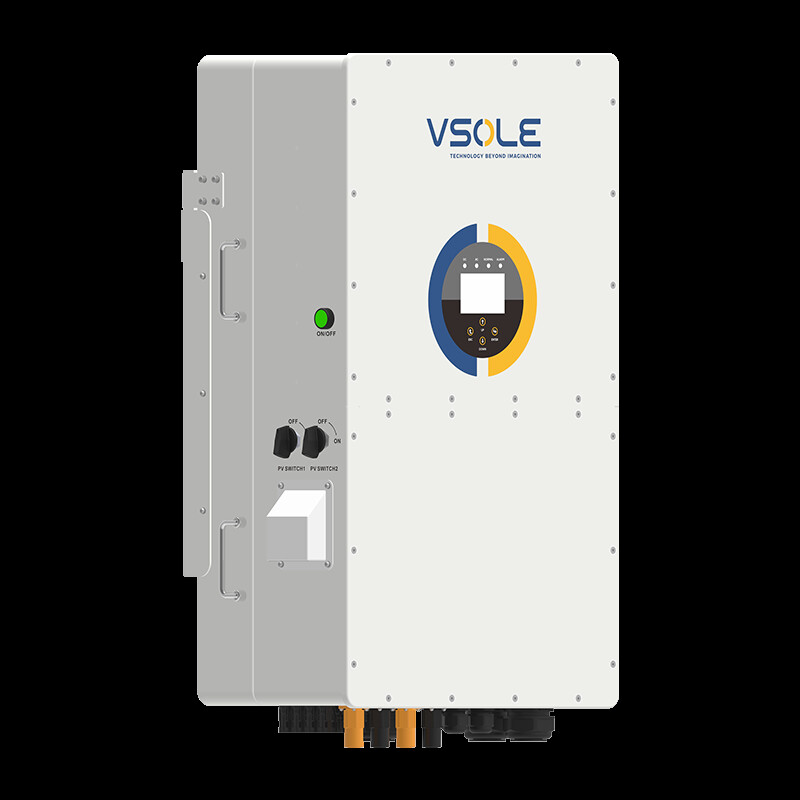

Send InquiryVsole 20kW Solar Hybrid Inverter Three Phase Inverter (VS-HY20T-20KW)
Price 281541.0 INR/ Piece
MOQ : 1 Piece
Vsole 20kW Solar Hybrid Inverter Three Phase Inverter (VS-HY20T-20KW) Specification
- Input Voltage
- 1000 Volt (V)
- Features
- 3 Stages/Equalization charging curve , self-adaption to BMS , 0.9 leading to 0.9 lagging power factor adjustment , up to 200A max continuous AC passthrough current , and multi-MPPT tracker scalability.
- Efficiency
- 97.60%
- Maintenance Type
- Intelligent Air Cooling
- Product Type
- Other
- Material
- NA
- Number of Cells
- 0
- Power
- 20000 Watt (w)
- Operating Temperature
- -45 C to 60 C Celsius (oC)
- Max Voltage
- 20000 Watt (W)
- Max System Voltage
- 20000 Watt (W)
- Output Voltage
- 230/400 Volt (V)
- Cable Length
- NA Millimeter (mm)
- Switch Mode
- Other
- Size
- 408W 678H 247D
- Dimension (L*W*H)
- 408W 678H 247D Millimeter (mm)
- Color
- White
- Weight
- 31.5 Kilograms (kg)
- Warranty
- 10 Year
- Application
- Home, Industrial, Commercial
- Type Of Technology
- Other
- Installation Type
- Other
Vsole 20kW Solar Hybrid Inverter Three Phase Inverter (VS-HY20T-20KW) Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Telegraphic Transfer (T/T), Paypal
- Supply Ability
- 1000 Pieces Per Month
- Delivery Time
- 7 Days
- Sample Available
- Yes
- Packaging Details
- national standard packaging
- Main Domestic Market
- All India
- Certifications
- Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection, and Output Over Voltage Protection (DC Type II/AC Type II)
About Vsole 20kW Solar Hybrid Inverter Three Phase Inverter (VS-HY20T-20KW)
- All in 1- Off Grid / On Grid & Hybrid Bi-Directional solution
- Automatic Superfast switching time (Changeover Time) 4ms. It can be used as UPS
- Battery Management System (BMS) to protect & enhance the battery life (Li-ion/Lead Acid/Li P04)
- 100% unbalanced output, each phase; Max. output up to 50% rated power (Three Phase)
- Colourful touch LCD display with ease of operation & maintenance.
- Ideal solution for BLACK-OUT & BROWN-OUTS with GRID Exports with & without Battery.
- Programmable supply priority for PV, Battery & Grid.
- Inbuilt Zero Export / Reverse Power Limit to grid.
- Grid Peak Compensation Mode It can reduce / Limit Maximum Demand (save your penalties)
- Intelligent SMART LOAD function for Air Conditioner, Geyser, Grid tie inverter & Home Appliances.
- DC couple and AC couple to retrofit existing solar system
- Max. 16pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
- Max. charging/discharging current upto 240A
- 48V low voltage battery, transformer isolation design
- 6 times period for battery charging / discharging
- Vector/frequency drop control.
- Supports using diesel generator to charge the battery directly. ensuring system energy supply 24*7Hrs
- Max. Conversion efficiency of 97.6%; Max. battery charge efficiency of 95.5%
- Support storing energy from diesel generator.
