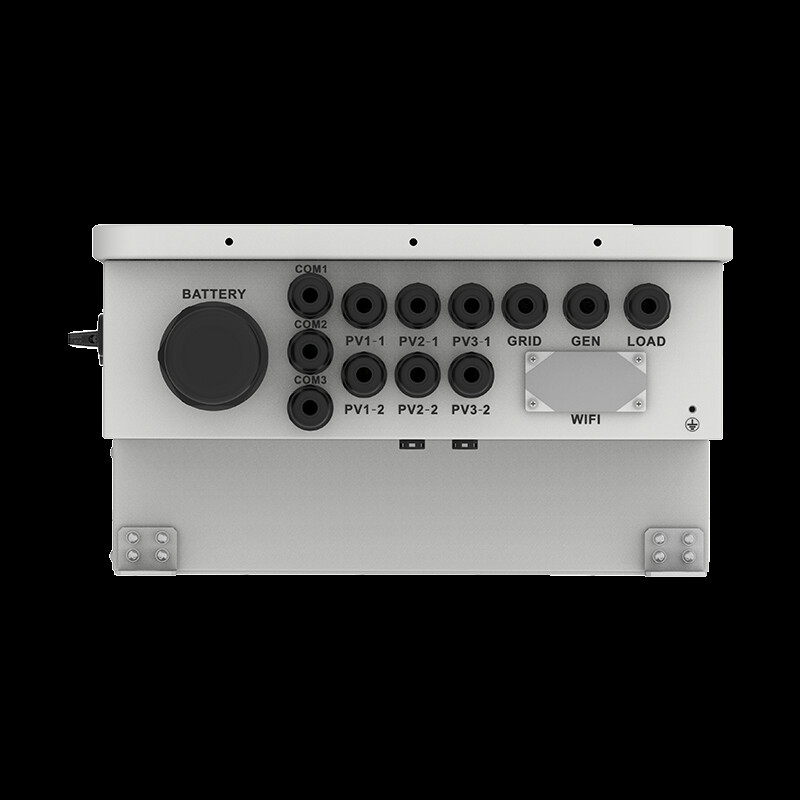

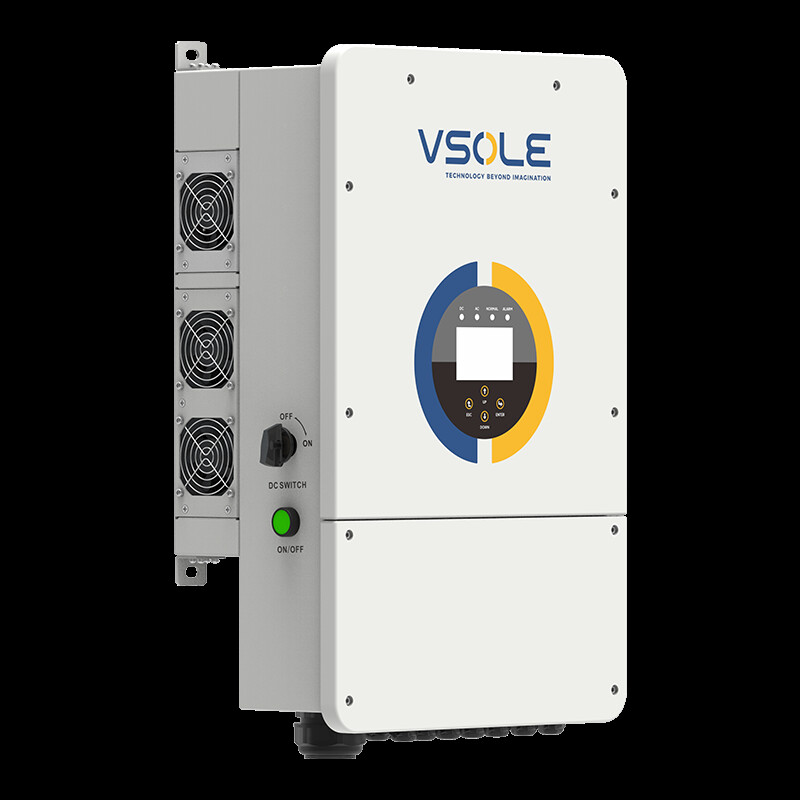

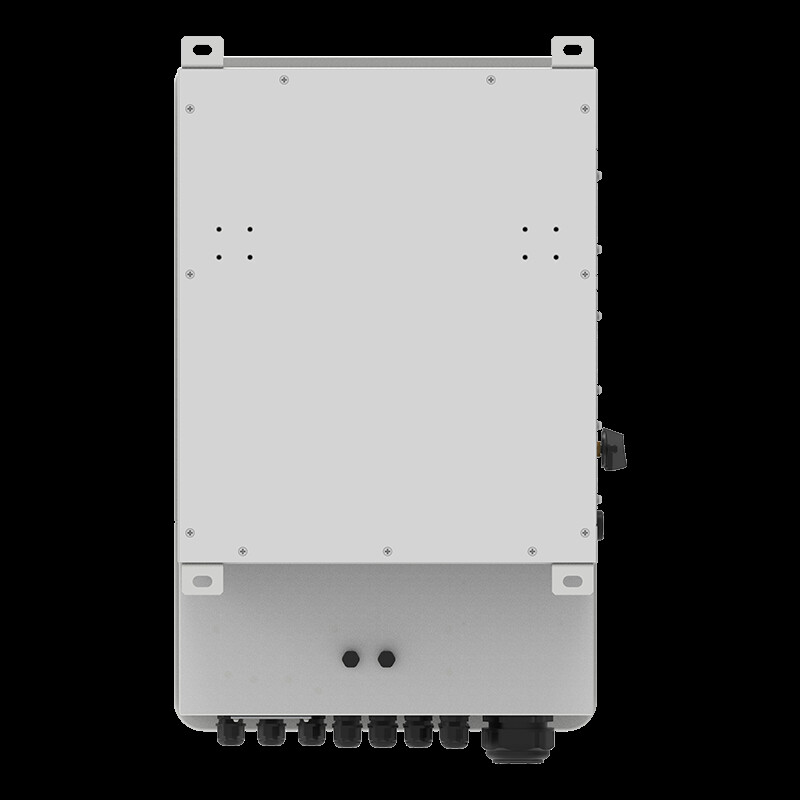

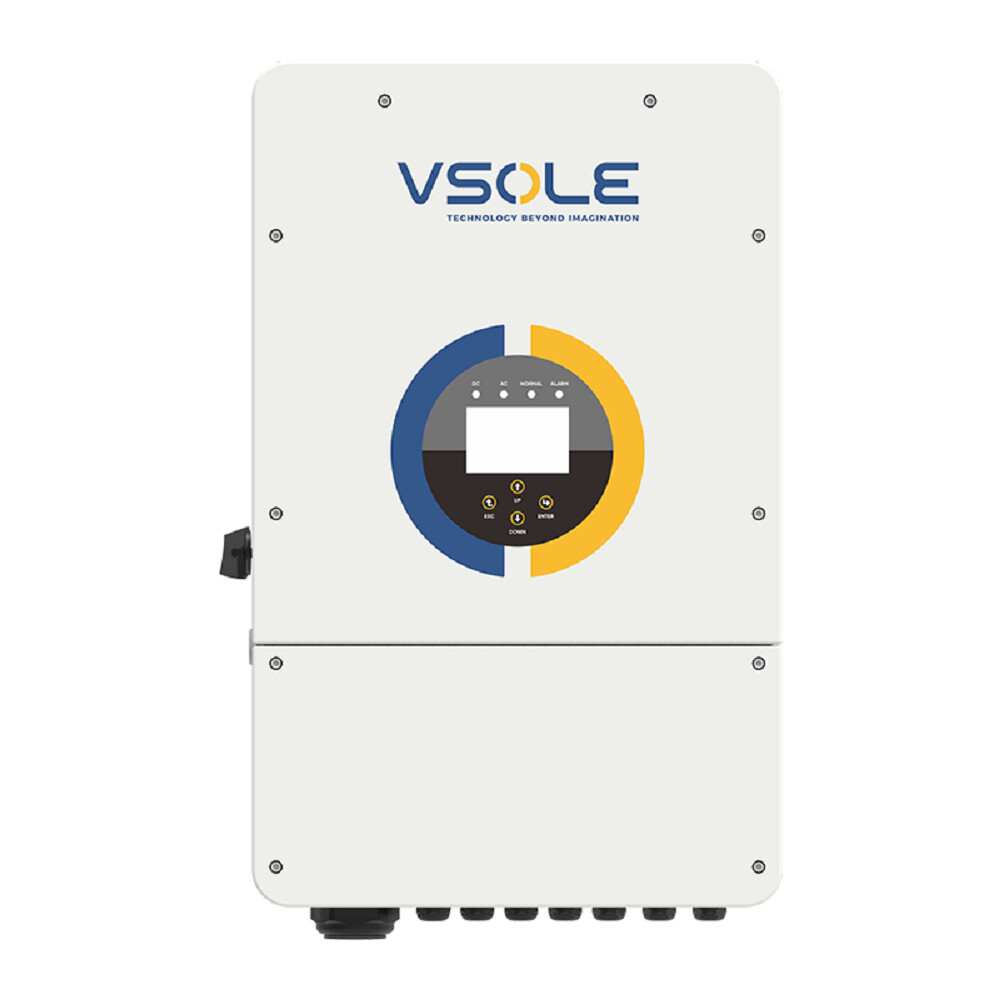

Send InquiryVsole 12kW Solar Hybrid Inverter Three Phase Inverter (VS-HY12T-12KW 48V)
Price 185332.0 INR/ Piece
MOQ : 1 Number
Vsole 12kW Solar Hybrid Inverter Three Phase Inverter (VS-HY12T-12KW 48V) Specification
- Input Voltage
- 370 Volt (V)
- Maintenance Type
- Intelligent Cooling
- Efficiency
- 97.60%
- Features
- 3 Stages/Equalization charging curve , Self-adaption to BMS for Li-ion battery , 0.9 leading to 0.9 lagging power factor adjustment
- Product Type
- Other
- Material
- NA
- Number of Cells
- 0
- Power
- 12000 Watt (w)
- Operating Temperature
- -45 C to 60 C Celsius (oC)
- Max Voltage
- 12000 Watt (W)
- Max System Voltage
- 12000 Watt (W)
- Output Voltage
- 220 / 230 Volt (V)
- Cable Length
- NA Millimeter (mm)
- Switch Mode
- Other
- Size
- 420W 670H 223D
- Dimension (L*W*H)
- 420W 670H 223D Millimeter (mm)
- Color
- White
- Weight
- 35.69 Kilograms (kg)
- Warranty
- 10 Year
- Application
- Home, Industrial, Commercial
- Type Of Technology
- Other
- Installation Type
- Other
Vsole 12kW Solar Hybrid Inverter Three Phase Inverter (VS-HY12T-12KW 48V) Trade Information
- Minimum Order Quantity
- 1 Number
- Payment Terms
- Telegraphic Transfer (T/T), Paypal
- Supply Ability
- 1000 Per Month
- Delivery Time
- 7 Days
- Sample Available
- Yes
- Packaging Details
- National Standard Packaging
- Main Domestic Market
- All India
- Certifications
- Anti-islanding, PV string input reverse polarity, Insulation resistor detection, Residual current monitoring unit, Output overcurrent, Output shorted protection, Surge protection level (DC Type II / AC Type III)
About Vsole 12kW Solar Hybrid Inverter Three Phase Inverter (VS-HY12T-12KW 48V)
- All in 1- Off Grid / On Grid & Hybrid Bi-Directional solution
- Automatic Superfast switching time (Changeover Time) 4ms. It can be used as UPS
- Battery Management System (BMS) to protect & enhance the battery life (Li-ion/Lead Acid/Li P04)
- 100% unbalanced output, each phase; Max. output up to 50% rated power (Three Phase)
- Colourful touch LCD display with ease of operation & maintenance.
- Ideal solution for BLACK-OUT & BROWN-OUTS with GRID Exports with & without Battery.
- Programmable supply priority for PV, Battery & Grid.
- Inbuilt Zero Export / Reverse Power Limit to grid.
- Grid Peak Compensation Mode It can reduce / Limit Maximum Demand (save your penalties)
- Intelligent SMART LOAD function for Air Conditioner, Geyser, Grid tie inverter & Home Appliances.
- DC couple and AC couple to retrofit existing solar system
- Max. 16pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
- Max. charging/discharging current upto 240A
- 48V low voltage battery, transformer isolation design
- 6 times period for battery charging / discharging
- Vector/frequency drop control.
- Supports using diesel generator to charge the battery directly. ensuring system energy supply 24*7Hrs
- Max. Conversion efficiency of 97.6%; Max. battery charge efficiency of 95.5%
- Support storing energy from diesel generator.
