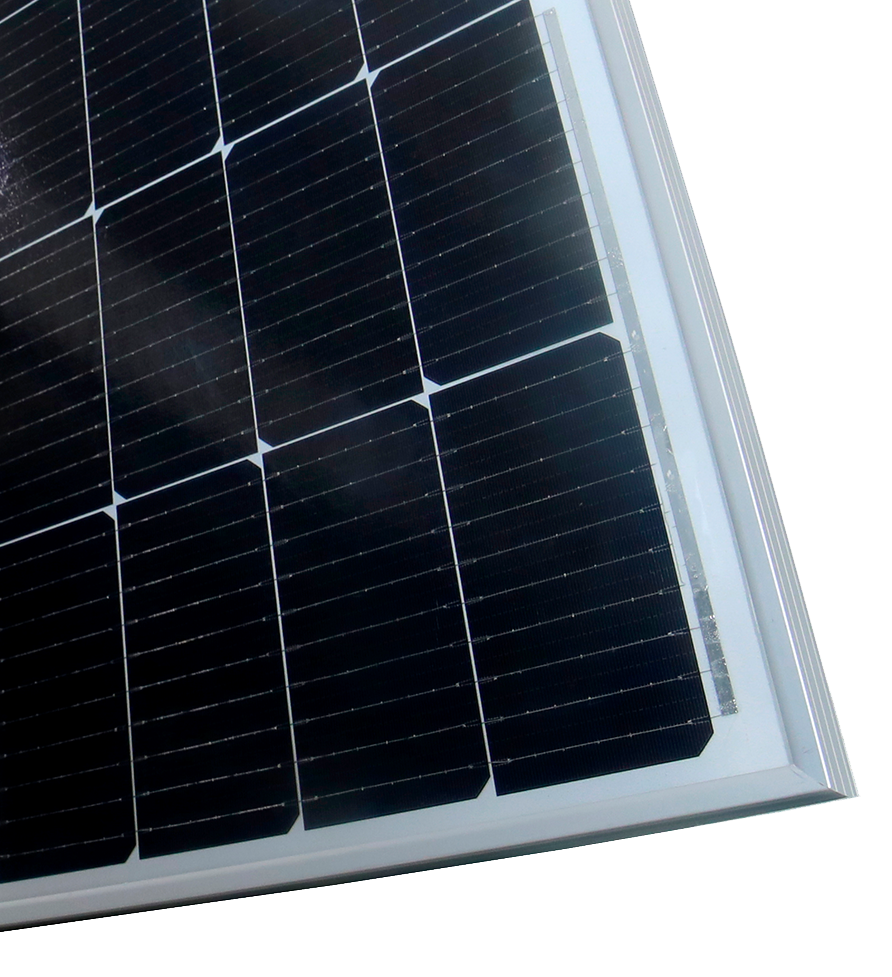

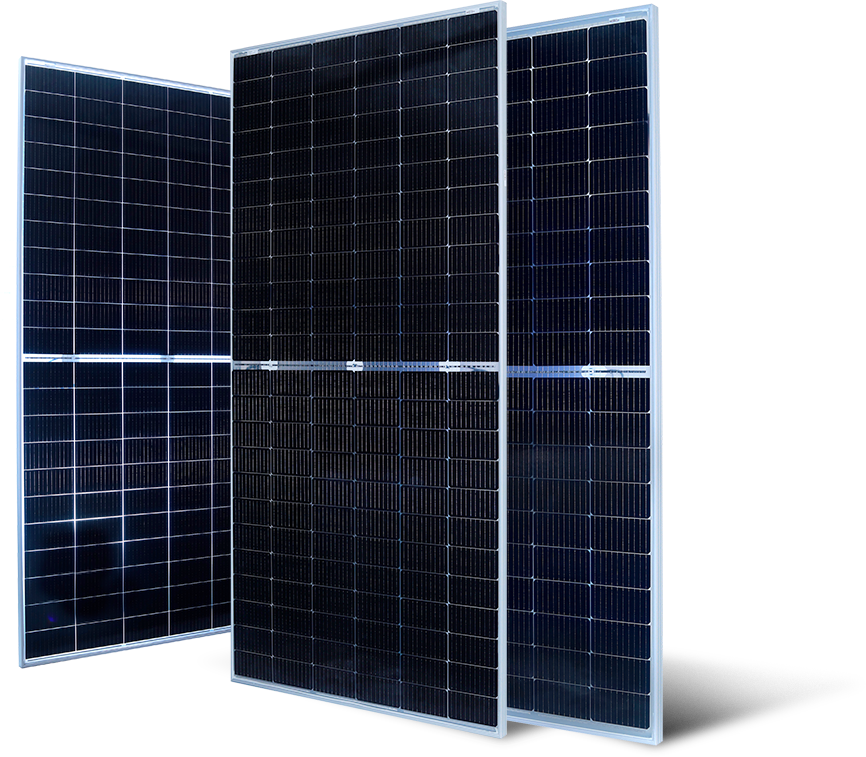

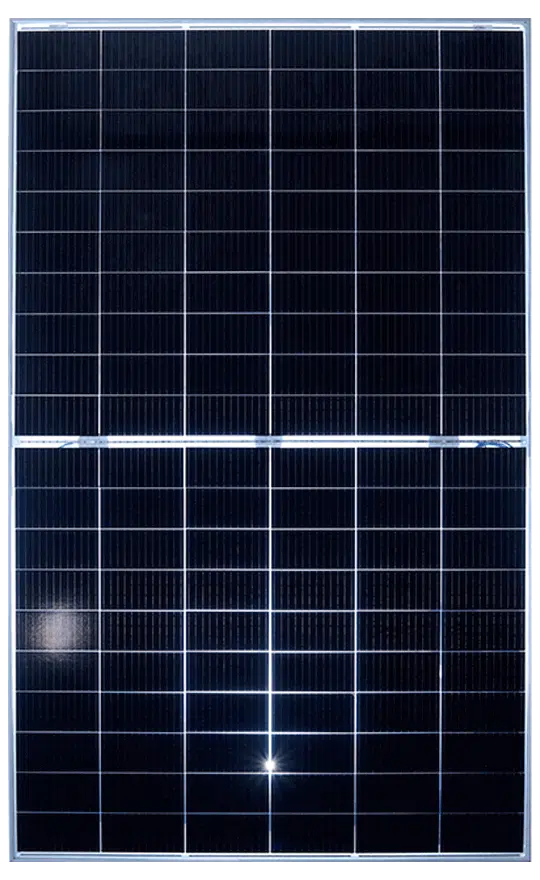

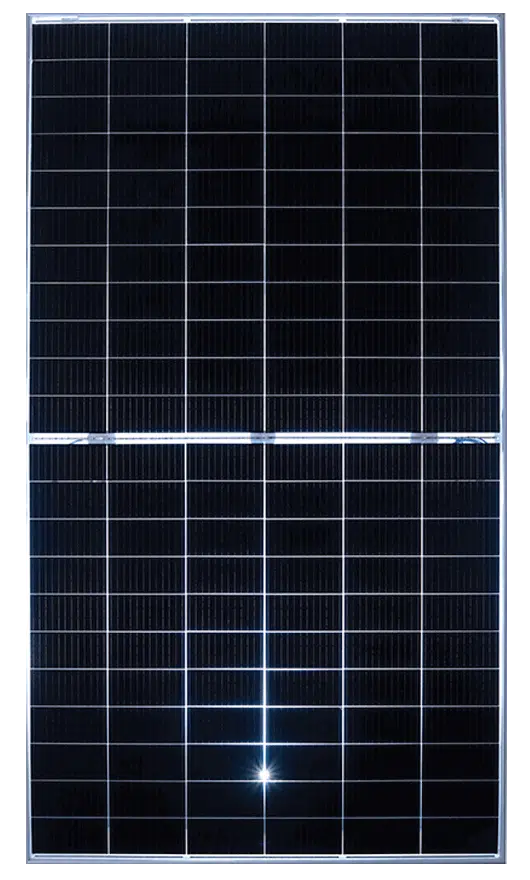

Vikram Solar 535-560W Somera Monofacial 144 Half-Cells Efficiency 21.72%

The Vikram Solar Somera series features high-efficiency Monofacial PV modules designed for robust energy harvesting in utility-scale and commercial systems. Cell Technology: Utilizes M10 Mono PERC P-Type solar cells in a 144 half-cut configuration with a micro-gap design to improve shade tolerance. Enhanced Light Capture: Features cylindrical tabbing wire that increases cell absorption by enhancing scattering effects. Shadow Management: Implementation of bypass diodes in a split junction box series-parallel connection enables the module to perform reliably in partial shadow conditions. Fabrication Quality: Multiple contact points on the cell lower cell stress during fabrication, which improves overall field reliability. Robust Construction: Built with an anodized aluminium twin-wall profile frame and a 3.2 mm AR-coated high-transmission tempered glass superstrate. Optimized Performance: Designed with lower internal resistance to achieve minimal power loss compared to previous variant modules. Benefits Maximum Energy yield: Achieves a peak module efficiency of up to 21.72%, ensuring high power production from each panel. LCOE Reduction: The use of larger M10 size cells provides more power output than smaller cell variants, effectively cutting the levelized cost of energy. Efficiency Resilience: A higher number of busbars makes the PV modules less prone to efficiency loss and increases tolerance to micro-cracks. Long-Term Reliability: Backed by a 12-year product warranty and a 27-year linear performance warranty with a 2% first-year degradation and 0.55% annual degradation thereafter. Environmental Protection: Equipped with an IP68 split junction box with individual bypass diodes for advanced water and dust resistance. Mechanical Strength: Certified to withstand heavy snow loads of 5400 Pa and wind loads of 2400 Pa
