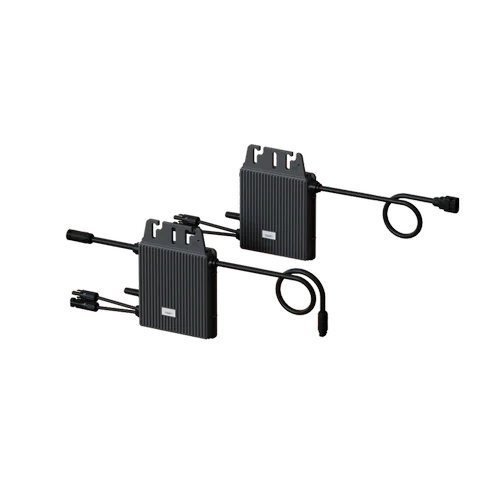

TSUN 500W Single Phase Microinverter

Name: TSUN 500W Single Phase Microinverter
Brand: LAVANCHA RENEWABLE ENERGY PRIVATE LIMITED
Price: 49000 INR
Availability: InStock

Price 49000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TSUN 500W Single Phase Microinverter Specification

Features
IP67 waterproof; Built-in WiFi monitoring; High conversion efficiency; Plug and play installation

Maintenance Type
Low maintenance

Input Voltage
22-60V DC

Efficiency
Peak 96.5%

Product Type
Single Phase Microinverter

Material
Aluminum Alloy

Number of Cells
Compatible with 2 solar panels (60/72 cell modules)

Power
500W

Operating Temperature
-40C to +65C

Max Voltage
60V DC

Max System Voltage
600V DC

Output Voltage
230V AC

Cable Length
2 meters

Switch Mode
MPPT Integrated

Size
Compact

Dimension (L*W*H)
250mm x 170mm x 28mm

Color
Silver

Weight
2.5 kg

Application
Residential and Commercial Solar PV Systems

Type Of Technology
Microinverter Technology

Installation Type
On-grid / Grid-tied

Safety Standards
IEC/EN 62109-1; IEC/EN 62109-2

Total Harmonic Distortion (THD)
<3%

Protection Functions
Over/Under Voltage, Over/Under Frequency, Islanding, Over Temperature, IP67 enclosure

Compatible PV Module Power
180W~670W

Frequency Range
50/60 Hz

Enclosure Rating
IP67

Maximum Output Current
2.2A

Communication Mode
Power Line / WiFi (Optional)

Relative Humidity
0-100% non-condensing

Cooling
Natural convection

Output Connection
MC4 / AC Cable

Night Power Consumption
<50 mW

TSUN 500W Single Phase Microinverter Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

TSUN 500W Single Phase Microinverter About

The TSUN 500W Single Phase Microinverter is in demand for both residential and commercial solar PV systems across India, delivering top-notch performance at an unbeatable price. With a highly recommended 96.5% peak efficiency, built-in WiFi for monitoring, and plug-and-play installation, it's designed for effortless integration and optimal safety. This opulent yet compact microinverter features IP67 waterproofing, advanced protection functions, and a robust aluminum alloy build, ensuring longevity and reliability. Its virtuoso performance and low maintenance make it a compelling upgrade for modern solar solutions.

TSUN 500W Microinverter: Advanced Features & Versatile Use

The TSUN 500W Single Phase Microinverter boasts features like IP67 waterproofing, built-in WiFi monitoring, and a plug-and-play installation process. Designed for on-grid systems, it operates efficiently across a wide power range and supports both 60 and 72 cell PV modules. Its other features include advanced protection systems, natural convection cooling, and a compact, durable aluminum alloy enclosure, making it ideal for hassle-free, low-maintenance operation in various environments.

Market Reach & Certifications: Trusted Value, Fast Delivery

TSUN microinverters enjoy a strong market value in the domestic Indian market, supported by internationally recognized certifications such as IEC/EN 62109-1 and 62109-2. Highly rated for both reliability and performance, these units are in demand for quick dispatch and supply. Their appeal extends to major export markets, solidifying TSUN's reputation as a trusted service provider, supplier, and trader for competitive solar solutions.

FAQ's of TSUN 500W Single Phase Microinverter:

Q: How does the TSUN 500W microinverter enhance a solar PV system?

A: The TSUN 500W microinverter increases overall energy production through high conversion efficiency and MPPT integrated technology, optimizing power output from each solar panel and providing robust protection features.

Q: What features make the TSUN microinverter highly recommended?

A: Its top-notch IP67 waterproof rating, built-in WiFi monitoring, low maintenance requirements, and easy installation provide outstanding reliability and convenience for users seeking a premium experience.

Q: When should you choose a microinverter like the TSUN 500W for your project?

A: It's highly suitable for both new and existing residential or commercial installations when you want maximized energy efficiency, simplified system monitoring, and enhanced safety protections.

Q: Where can the TSUN 500W microinverter be used?

A: This microinverter is designed for on-grid/grid-tied residential and commercial solar PV systems, compatible with a wide range of environments thanks to its robust construction and extensive safety certifications.

Q: What is the process for installing the TSUN 500W microinverter?

A: Installation is straightforward and user-friendly-its plug-and-play design with MC4/AC cable connections allows quick integration, supported by comprehensive protection features for secure grid-tied operations.
