N-Type HJT Bifacial Monocrystalline Solar Panel

Send Inquiry

Request To Call Back

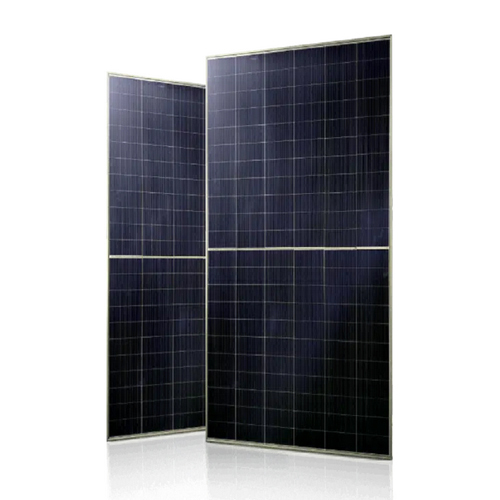

N-Type HJT Bifacial Monocrystalline Solar Panel

Get a Price/Quote

MOQ : 10 Watts

N-Type HJT Bifacial Monocrystalline Solar Panel Specification

Product Type
N-Type HJT Bifacial Monocrystalline Solar Panel

Material
Bifacial Monocrystalline Silicon

Number of Cells
144 (12x12)

Operating Temperature
-40C to +85C

Max Voltage
49.2 V

Max System Voltage
1500 V DC

Panel Efficiency
21.6%

Cable Length
1200 mm

Number Of Diodes
3

Maximum Snow Load
5400 Pa

Size
2279x1134 mm

Dimension (L*W*H)
2279 x 1134 x 30 mm

Weight
32 kg

Color
Black/Silver frame, Transparent back side

Fire Rating
Class C

Glass
High-transparency, tempered glass

Power Tolerance
0~+5W

Open Circuit Voltage (Voc)
58.2 V

PID Resistance
High (Anti-PID)

Front Power Output
570 W

Module Efficiency
21.6%

Cell Technology
N-Type Heterojunction (HJT)

Short Circuit Current (Isc)
13.97 A

Maximum Power Current (Imp)
12.94 A

Wind Load Resistance
2400 Pa

Connector Type
MC4 compatible

Frame Material
Anodized Aluminium Alloy

Backside Power Gain
Up to 30%

Junction Box Protection
IP68 Rated

N-Type HJT Bifacial Monocrystalline Solar Panel Trade Information

Minimum Order Quantity
10 Watts

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Watts Per Month

Delivery Time
7 Days

Main Domestic Market
All India

N-Type HJT Bifacial Monocrystalline Solar Panel About

Explore the excellence of our Exclusive N-Type HJT Bifacial Monocrystalline Solar Panel, designed for supreme efficiency and astounding reliability. With a lustrous front power output of 570 W and an impressive backside power gain of up to 30%, this panel integrates top-tier N-Type Heterojunction cell technology. Its IP68-rated junction box, anodized aluminium frame, and high-transparency tempered glass guarantee durability. Suited for India's diverse conditions, this panel stands as your premier choice for elevated performance and power resilience in all solar applications.

Key Advantages and Versatile Applications

This N-Type HJT Bifacial Monocrystalline Solar Panel delivers primary competitive advantages of supreme energy yield, enhanced power output, and remarkable durability. Used as the core of commercial and industrial solar power systems, it increases site generation and reliability for businesses. Other applications include large-scale solar farms and green building integrations, ensuring a sustainable, high-performance solution for renewable energy needs.

Sample Policy, Packaging & Export Markets

Our Premium sample policy ensures you experience the panel's benefits first-hand before finalizing your order. Each solar panel is securely packed, and professionally handed over to logistics partners for safe transit. We focus on dispatching products swiftly to meet urgent project deadlines. Main export markets include South Asia, the Middle East, and Africa, maintaining high standards in both product delivery and customer satisfaction.

FAQ's of N-Type HJT Bifacial Monocrystalline Solar Panel:

Q: How does the N-Type HJT bifacial technology enhance energy generation?

A: The N-Type HJT bifacial technology enables the solar panel to capture light from both sides, allowing up to 30% backside power gain and significantly increasing overall energy generation compared to conventional panels.

Q: What applications are best suited for this solar panel?

A: This panel is ideal for large-scale commercial, industrial, and utility-scale solar installations, as well as green-building integrations where maximum efficiency and reliability are essential.

Q: When is the best time to install these panels for optimal performance?

A: Installation is optimal during periods of stable weather, but thanks to their robust design and wide temperature operating range (-40C to +85C), they are suitable for year-round deployment in India's varied climate.

Q: Where can these panels be used effectively?

A: These panels can be used effectively in open-field solar farms, rooftop commercial installations, and projects requiring high power output, leveraging both direct and reflected sunlight with their bifacial design.

Q: What is the process for obtaining samples and placing bulk orders?

A: To obtain samples, contact our sales team; a sample panel will be dispatched after your request is processed. For bulk orders, detailed packaging and secure handling ensure products are delivered safely and promptly.

Q: What are the main benefits of choosing this solar panel?

A: Key benefits include supreme module efficiency (21.6%), high PID resistance, impressive wind and snow load tolerance, prolonged durability, and top-tier energy output in diverse environmental conditions.
