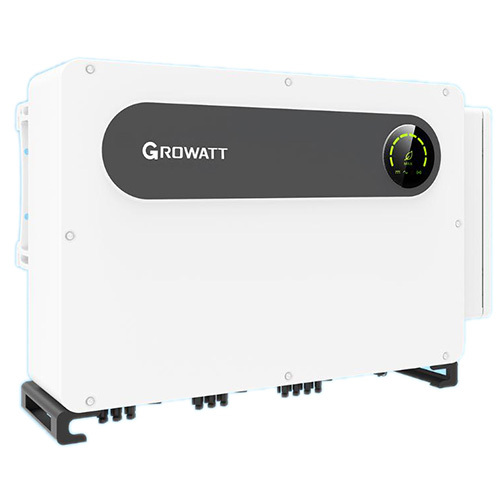

Growatt On-Grid 100KW Inverter

Get a Price/Quote

MOQ : 1 Unit

Growatt On-Grid 100KW Inverter Specification

Maintenance Type
Low Maintenance

Efficiency
98.6%

Input Voltage
580V DC (Nominal)

Features
WiFi/RS485 Monitoring, Remote Diagnostics, LCD Display, Anti-islanding, Surge Protection, Multi MPPT

Product Type
On-Grid Solar Inverter

Material
Metal Enclosure

Power
100KW

Operating Temperature
-25C ~ +60C

Max Voltage
1100V DC

Max System Voltage
1100V

Output Voltage
400V AC, 3-phase

Cable Length
Custom/As Required

Switch Mode
Automatic

Size
Large Commercial

Dimension (L*W*H)
700mm x 730mm x 300mm

Color
White/Gray

Weight
84 kg

Application
Commercial, Industrial Solar Plants

Type Of Technology
Transformerless, IGBT-based

Installation Type
Wall/Floor Mounted

Noise Level
<60 dB

Display
LCD Multifunction Display

Grid Connection
Three-phase, 3W+N+PE

Communication Options
RS485, WiFi, GPRS (optional)

Protection Degree
IP65

Safety Features
DC/AC Surge Protection, Ground Fault Detection, Anti-Backfeed Function

Start Voltage
250V DC

Maximum Output Power
110kVA

Humidity Range
0~100% (Non-condensing)

Altitude Tolerance
4000m (Derating above 2000m)

Cooling Method
Smart Air Cooling

Rated Output Current
144A

MPPT Channels
6 Independent MPPTs

Compliance
IEC 62109-1/-2, IEC 61727, IEC 61683

Growatt On-Grid 100KW Inverter Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Growatt On-Grid 100KW Inverter

Promotion: Experience the stellar performance of the Growatt On-Grid 100KW Inverter, engineered for large commercial and industrial solar plants. With six independent MPPTs and unmatchable efficiency of 98.6%, this inverter offers perfect control and adaptability for diverse installations. Featuring advanced safety with DC/AC surge protection and multiple communication options like WiFi and RS485, remote diagnostics become effortless. Its robust IP65 metal enclosure and smart air cooling ensure reliable operation in harsh Indian environments. Try Now for top-tier productivity and minimal maintenance, empowering your solar investment with unmatched excellence.

Application Versatility for Commercial and Industrial Solar

The Growatt On-Grid 100KW Inverter is perfect for high-capacity installations, specifically designed for large-scale commercial and industrial solar projects. Its unmatchable design accommodates three-phase power systems, making it ideal for manufacturing plants, business complexes, and solar farms. The inverter's advanced features ensure optimum energy harvest, even in challenging operational environments. Its versatility makes it a top choice among solar service providers, traders, and suppliers across India seeking reliable and scalable solutions.

Comprehensive Packaging and Domestic Supply Network

Packaging for the Growatt On-Grid 100KW Inverter is meticulously planned, with sturdy outlay to safeguard the unit during freight. Detailed packaging includes custom cable lengths as required to facilitate installation ease. Samples may be provided upon request, allowing customers to assess quality before large-scale procurement. With a robust presence in the main domestic market across India, reliable and timely shipping is ensured with every order, reducing installation delay and delivering excellent customer satisfaction.

FAQ's of Growatt On-Grid 100KW Inverter:

Q: How does the Growatt On-Grid 100KW Inverter ensure safety in commercial environments?

A: The inverter features top safety mechanisms including DC/AC surge protection, ground fault detection, and an anti-backfeed function. These stellar features reduce risk and maximize operational security in demanding commercial settings.

Q: What applications are perfect for using the Growatt 100KW Inverter?

A: This inverter is perfect for large-scale commercial and industrial solar projects, such as manufacturing facilities, business parks, and expansive solar farms, needing reliable, efficient three-phase energy conversion.

Q: When is the best time to consider upgrading to a 100KW inverter system?

A: You should consider upgrading when your energy demand rises or when optimizing the efficiency of solar plants in commercial or industrial settings becomes critical for improved ROI and sustainable operations.

Q: How does the installation process work for this inverter?

A: The Growatt On-Grid 100KW Inverter supports flexible installation types, including wall or floor mounting. Service teams provide guidance to match custom cable lengths and ensure correct placement and electrical integration.

Q: What are the benefits of remote diagnostics and monitoring for users?

A: Remote diagnostics via WiFi or RS485 provide real-time monitoring, quick fault detection, and system performance analysis, empowering users with control, instant insights, and minimized downtime for stellar operational output.
