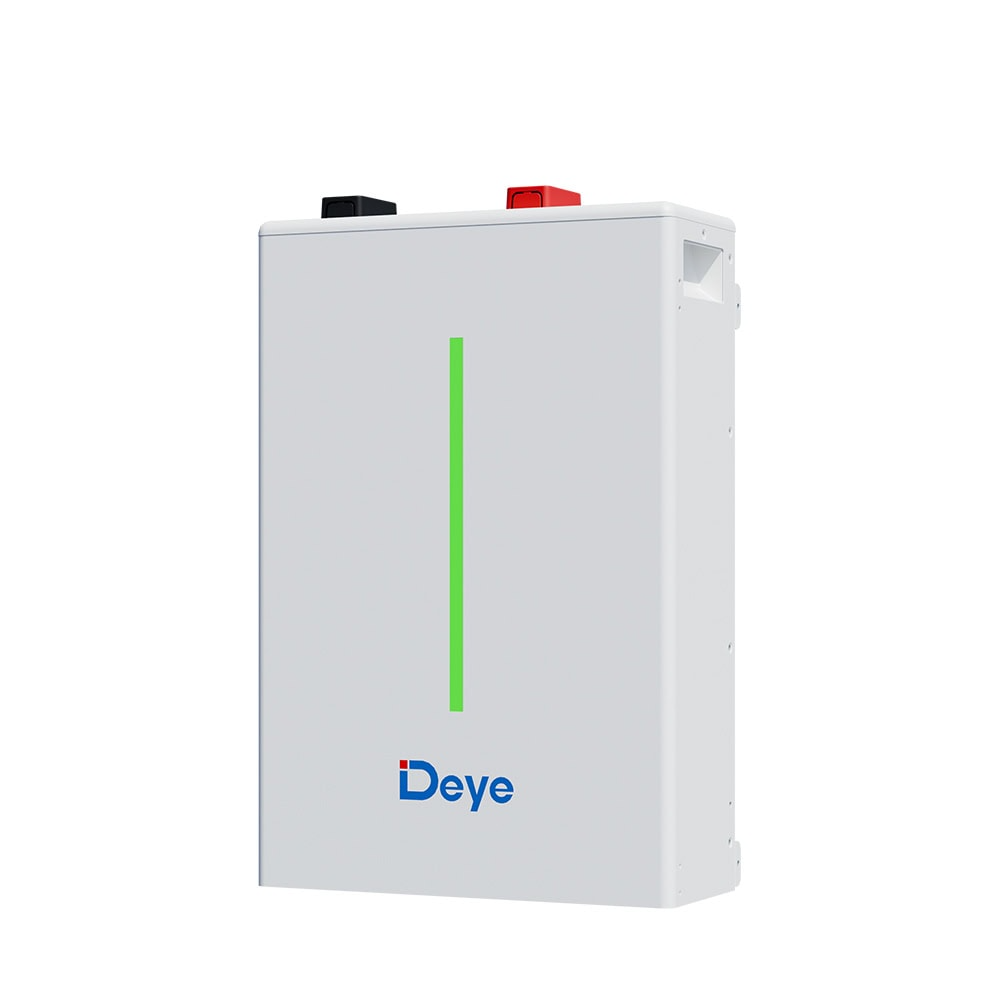

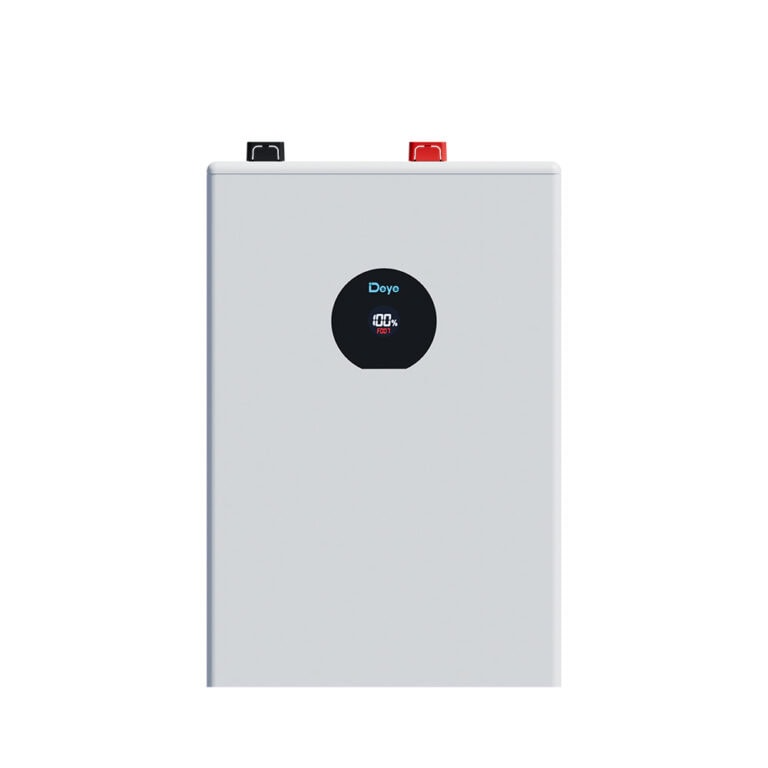

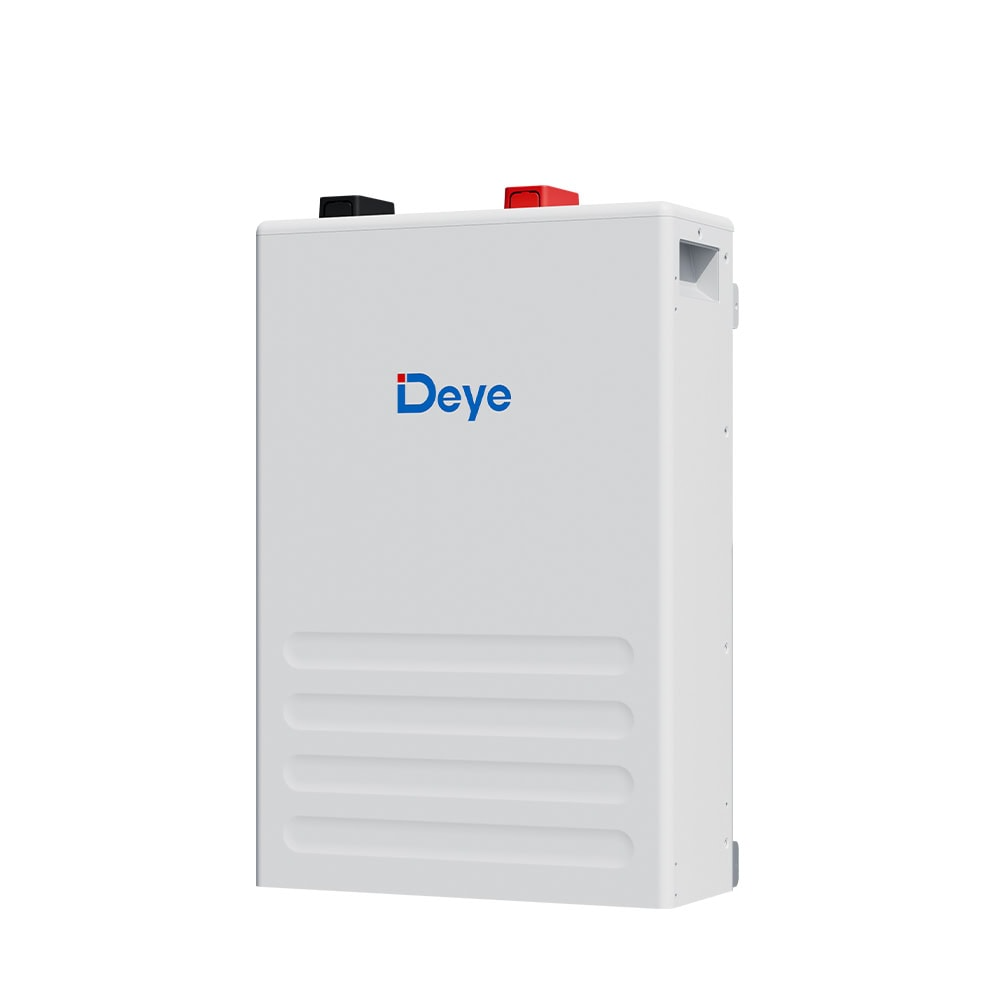

Deye Low Voltage LiFePO4 Battery SE-F5 PLUS, 100 Ah capacity and 5.12 kWh nominal energy

About Deye Low Voltage LiFePO4 Battery SE-F5 PLUS, 100 Ah capacity and 5.12 kWh nominal energy

SE-F5 Plus (AS, AF, EU, LATAM)

• Chemistry & Capacity: Adopts LiFePO battery chemistry, with a 100 Ah capacity and 5.12 kWh nominal energy
• Powerful Current: Max. continuous charge current 100 A (peak 120 A for 10 sec); max. continuous discharge current 120 A (peak 150 A for 10 sec)
• High Energy Utilization: Recommends 90% depth of discharge (DoD) for ample energy use
• Wide Temperature Range: Charges at 0 55C, discharges at -20 55C, with natural cooling
• Flexible Installation & Monitoring: Supports wall, floor, stack mounting. Has LED indicators and enables monitoring via CAN2.0, RS485, Bluetooth + APP
• Safety & Certifications: Advanced BMS with active fuse ensures safety; certified by UN38.3, MSDS

Reliable Home Energy Storage

Engineered for home inverters, the SE-F5 PLUS ensures that households have a safe and stable backup power source. Using advanced LiFePO4 cells, it maximizes energy retention and durability, offering peace of mind during power outages or peak-demand periods. Its compact footprint allows for flexible installation in a variety of domestic settings.


Efficiency and Longevity

The SE-F5 PLUS provides consistent power output and features an extended lifecycle, with a shelf life of up to 10 years. Its wide operating temperature range guarantees reliable performance even in demanding environments. Coupled with high nominal capacity, it offers excellent value for long-term home energy storage solutions.
