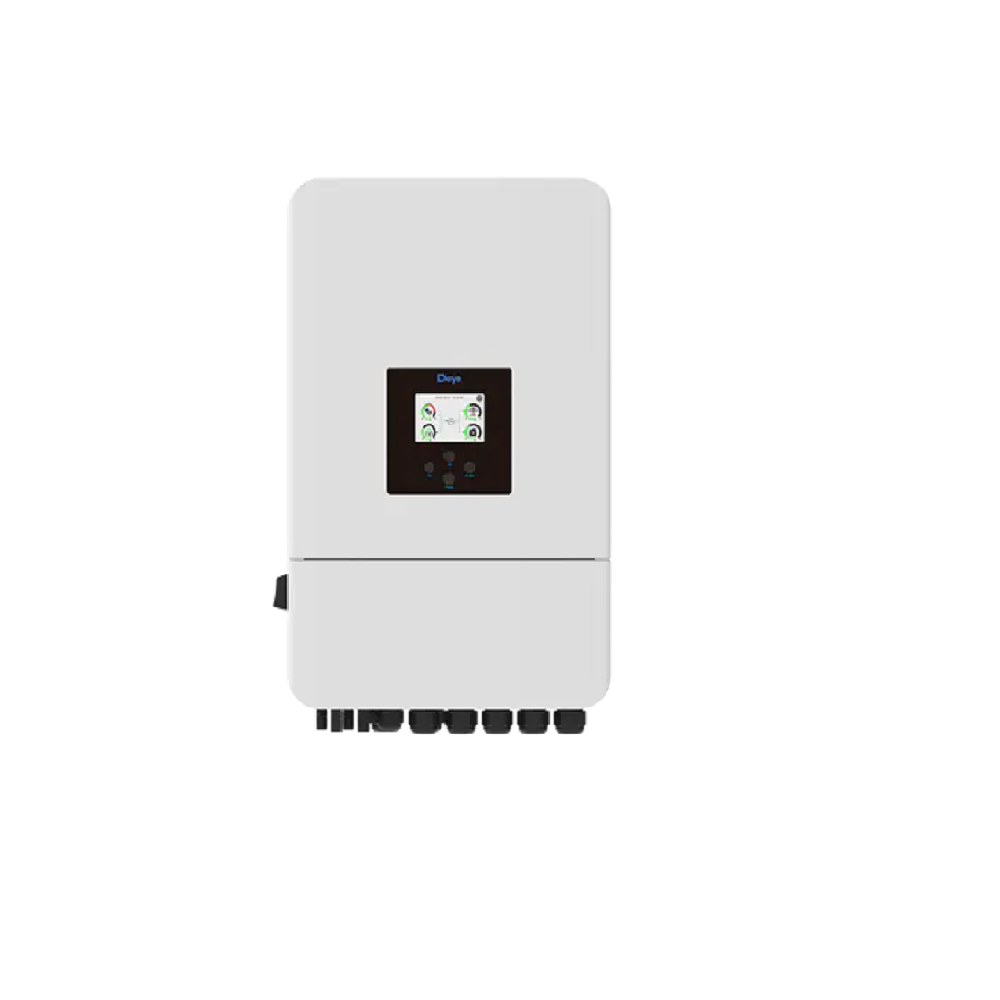

Deye Hybrid Inverter Single Phase 5KW-48V SUN Series 2 MPPT Low Voltage Battery Supported

Price 89243.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Deye Hybrid Inverter Single Phase 5KW-48V SUN Series 2 MPPT Low Voltage Battery Supported Specification

Maintenance Type
Natural Cooling

Efficiency
97.6%

Input Voltage
150-425V Volt (V)

Features
Colorful touch LCD, AC couple to retrofit existing systems, Max 16 pcs parallel

Product Type
Other

Material
NA

Power
5000 Watt (w)

Operating Temperature
-40 to +60 C Celsius (oC)

Max Voltage
5000 Watt (W)

Max System Voltage
5000 Watt (W)

Output Voltage
220/230 Volt (V)

Cable Length
NA Centimeter (cm)

Switch Mode
Other

Size
376 470 241.5

Dimension (L*W*H)
376 470 241.5 Millimeter (mm)

Color
NA

Weight
19 Kilograms (kg)

Warranty
10 Year

Application
Industrial, Home

Type Of Technology
Other

Installation Type
Other

Deye Hybrid Inverter Single Phase 5KW-48V SUN Series 2 MPPT Low Voltage Battery Supported Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Telegraphic Transfer (T/T)

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Packaging Details
National Standard Packaging

Main Domestic Market
All India

Certifications
Grid: IEC 61727, G98, G99, etc.; Safety: IEC/EN 62109-1/-2

About Deye Hybrid Inverter Single Phase 5KW-48V SUN Series 2 MPPT Low Voltage Battery Supported

The Deye SUN SG05LP1-EU-SM2-P Series Hybrid Solar Inverter is a next-generation single-phase inverter designed for high efficiency, flexibility, and smart energy management in residential and small commercial applications. Available in capacities from 3.6kW to 10kW, this inverter is ideal for both on-grid and off-grid systems.

One of its standout features is the high charging/discharging current up to 210A, making it highly efficient for battery-based energy storage systems. It supports both lithium-ion and lead-acid batteries with automatic BMS adaptation, ensuring optimized charging and extended battery life.

This inverter supports up to 16 units in parallel, allowing scalable system expansion for larger energy demands. It can also store energy from a diesel generator, providing additional flexibility in hybrid power setups.

With dual MPPT tracking (up to 2 MPPT / 4 strings), the inverter maximizes solar energy generation even in complex rooftop layouts. It supports up to 20kW PV input power and operates within a wide MPPT voltage range of 150V425V.

The inverter features AC coupling capability, making it perfect for upgrading existing solar systems. It also offers 6 customizable time periods for battery charging and discharging, enabling intelligent energy usage and cost savings.

A colorful touch LCD display provides an intuitive interface for monitoring and control. Built with an IP65-rated enclosure, the inverter is suitable for outdoor installations and can operate in harsh environments from -40C to +60C.

Safety is ensured through advanced protections such as anti-islanding, surge protection (Type II AC/DC), short circuit protection, and optional arc fault detection.
