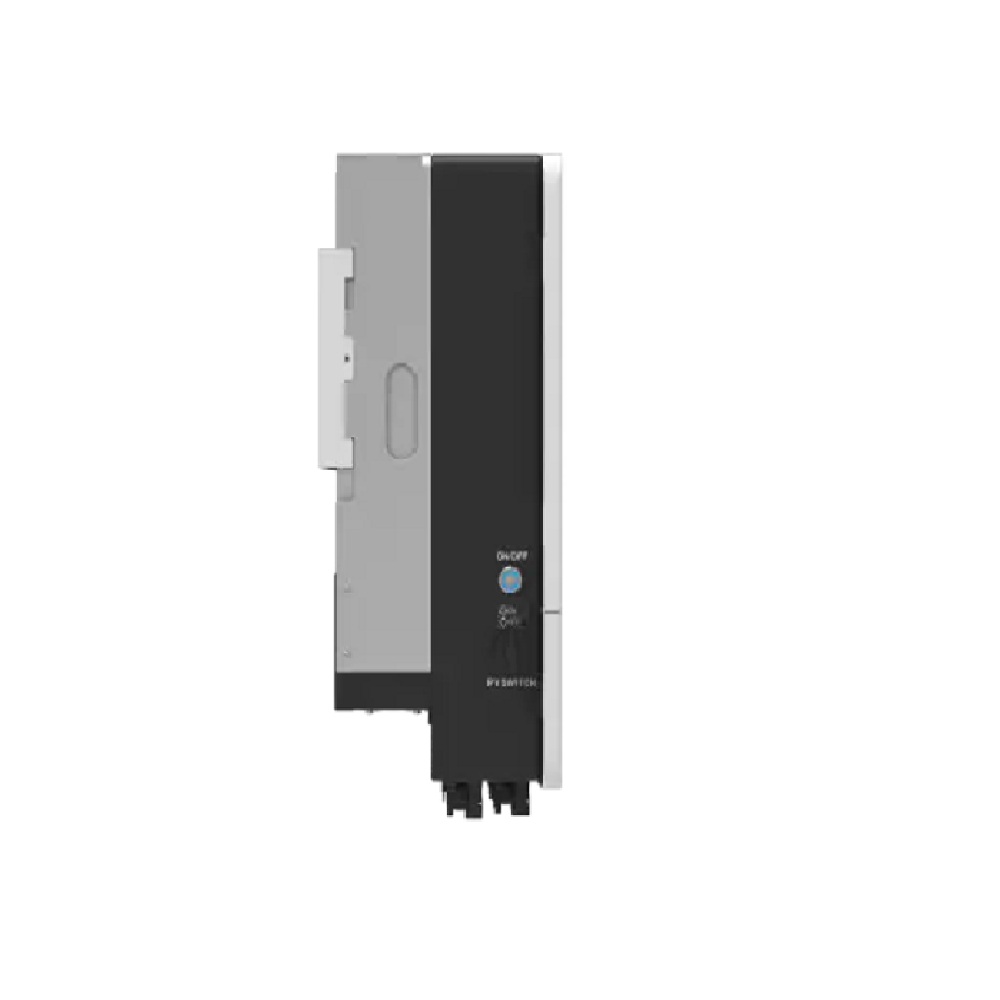

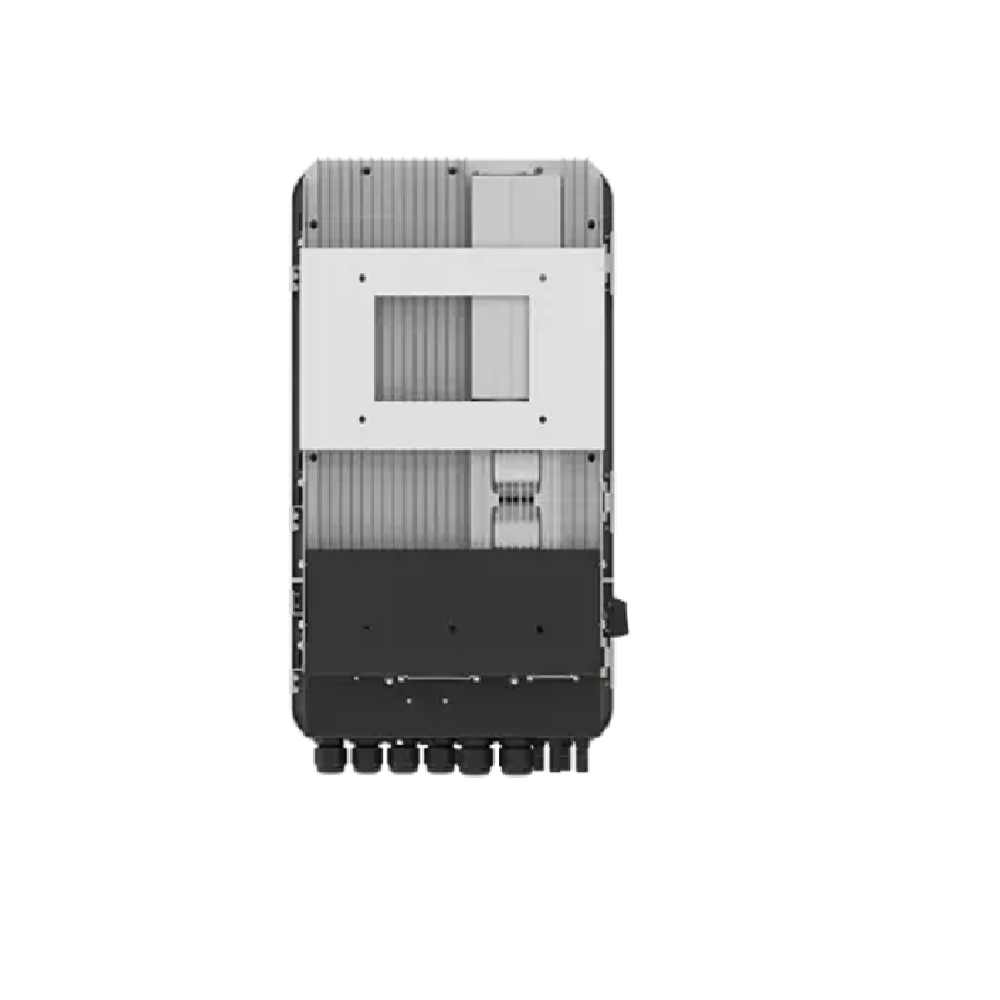

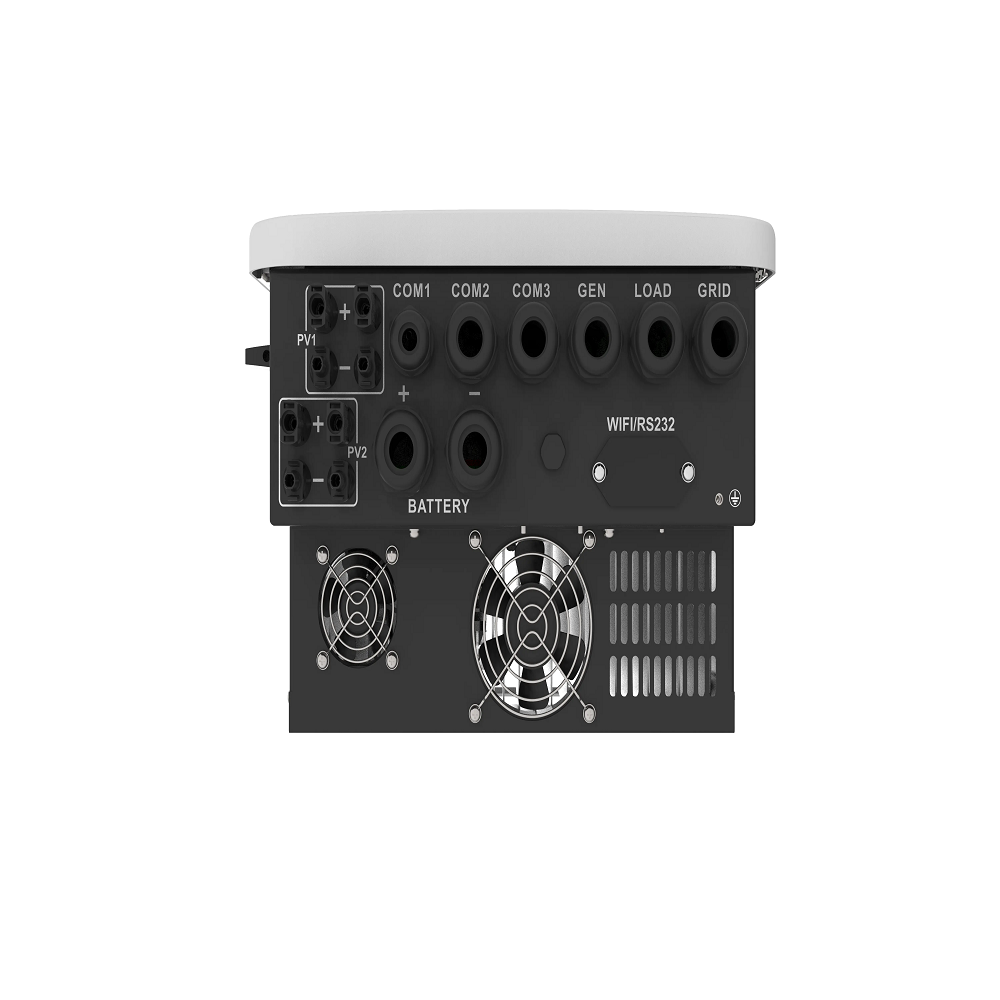

Deye 5KW 48V Sun Series Single Phase Hybrid Inverter 2 MPPT, Low Valtage Battery Supported

About Deye 5KW 48V Sun Series Single Phase Hybrid Inverter 2 MPPT, Low Valtage Battery Supported

The Deye SUN SG05LP1-EU-SM2-P Series Hybrid Solar Inverter is a next-generation single-phase inverter designed for high efficiency, flexibility, and smart energy management in residential and small commercial applications. Available in capacities from 3.6kW to 10kW, this inverter is ideal for both on-grid and off-grid systems.

One of its standout features is the high charging/discharging current up to 210A, making it highly efficient for battery-based energy storage systems. It supports both lithium-ion and lead-acid batteries with automatic BMS adaptation, ensuring optimized charging and extended battery life.

This inverter supports up to 16 units in parallel, allowing scalable system expansion for larger energy demands. It can also store energy from a diesel generator, providing additional flexibility in hybrid power setups.

With dual MPPT tracking (up to 2 MPPT / 4 strings), the inverter maximizes solar energy generation even in complex rooftop layouts. It supports up to 20kW PV input power and operates within a wide MPPT voltage range of 150V425V.

The inverter features AC coupling capability, making it perfect for upgrading existing solar systems. It also offers 6 customizable time periods for battery charging and discharging, enabling intelligent energy usage and cost savings.

A colorful touch LCD display provides an intuitive interface for monitoring and control. Built with an IP65-rated enclosure, the inverter is suitable for outdoor installations and can operate in harsh environments from -40C to +60C.

Safety is ensured through advanced protections such as anti-islanding, surge protection (Type II AC/DC), short circuit protection, and optional arc fault detection.
