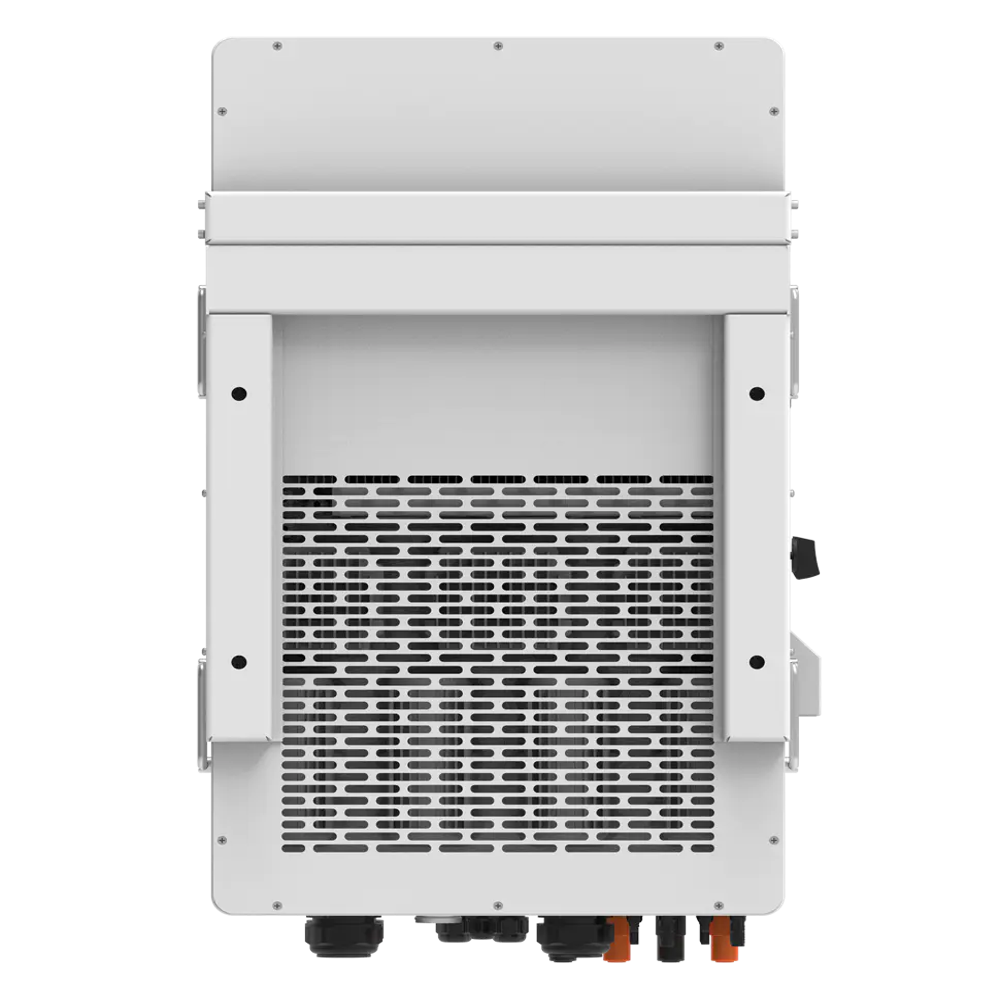

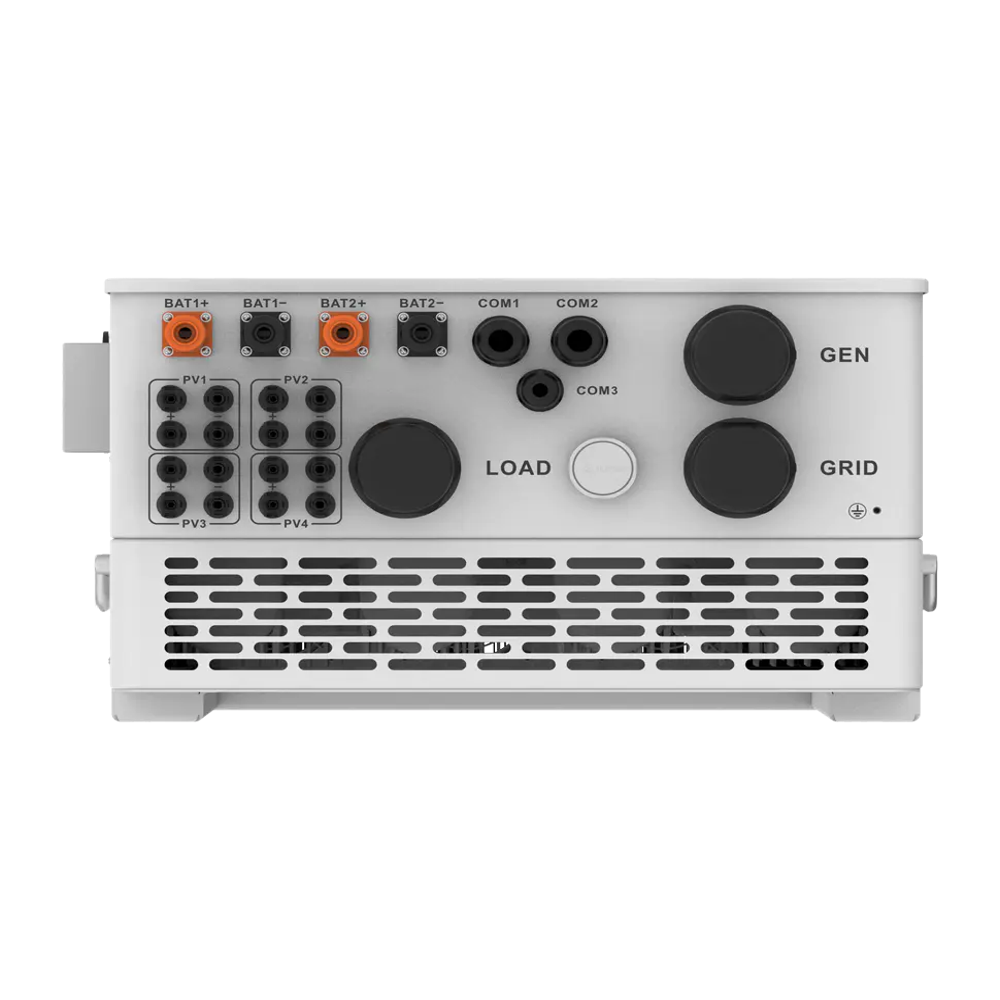

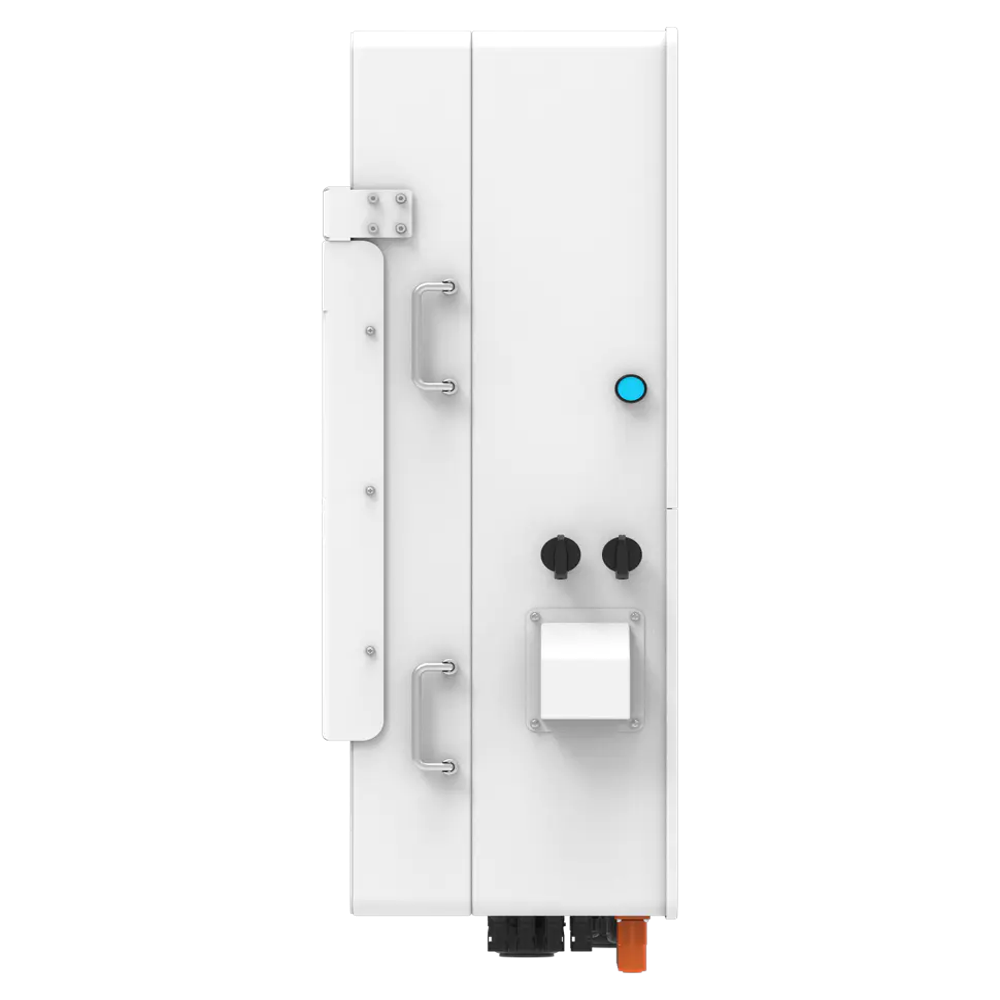

Deye 30kW Sun Series Three Phase Hybrid Inverter, 3/4 MPPT, High Voltage Battery Supported

Price 389318.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Deye 30kW Sun Series Three Phase Hybrid Inverter, 3/4 MPPT, High Voltage Battery Supported Specification

Maintenance Type
Intelligent Air Cooling

Input Voltage
600 Watt (W)

Features
100% unbalanced output supported, max. 10 pcs parallel , max. charging/discharging current of 100A , AC couple functionality , 6 time periods for battery scheduling

Efficiency
97.6

Product Type
Other

Material
NA

Number of Cells
0

Power
30000 Watt (w)

Operating Temperature
-40 to +60 C Celsius (oC)

Max Voltage
30000 Watt (W)

Max System Voltage
30000 Watt (W)

Output Voltage
230/400 Volt (V)

Cable Length
NA Millimeter (mm)

Switch Mode
Other

Size
527 894 294

Dimension (L*W*H)
527 894 294 Millimeter (mm)

Color
NA

Weight
80 Kilograms (kg)

Warranty
10 Year

Application
Home, Industrial, Commercial

Type Of Technology
Other

Installation Type
Other

Deye 30kW Sun Series Three Phase Hybrid Inverter, 3/4 MPPT, High Voltage Battery Supported Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Telegraphic Transfer (T/T)

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Sample Available
Yes

Packaging Details
national standard packaging

Main Domestic Market
All India

Certifications
Grid Regulation: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105; Safety/EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

About Deye 30kW Sun Series Three Phase Hybrid Inverter, 3/4 MPPT, High Voltage Battery Supported

Industrial-Grade Power and High-Voltage Efficiency The Deye SUN-50K-SG01HP3 series is a heavy-duty three-phase hybrid solution engineered for large-scale commercial and industrial solar projects. Unlike standard residential models, this series utilizes a High-Voltage (HV) battery system (160V-800V), which significantly reduces energy loss during conversion and supports a massive PV access power of up to 100kW. With up to 4 MPPT trackers and a maximum input current of 36A per string, it is perfectly optimized for high-power modern bifacial modules. This series is designed to handle extreme demands, offering a peak off-grid power of 1.5 times the rated capacity for 10 seconds, ensuring that heavy machinery or large HVAC systems start smoothly without tripping the system.

Reliable Infrastructure and Smart Management Built to provide long-term stability in demanding environments, these inverters feature a robust IP65-rated design and an intelligent air-cooling system that operates efficiently from -40C to 60C. The system is equipped with industrial-grade safety features, including Type II Surge Protection for both AC and DC sides, Arc Fault Circuit Interrupter (AFCI) options, and comprehensive monitoring through WIFI, GPRS, or 4G. With a massive 200A AC passthrough capacity and support for various grid regulations worldwide, this inverter series offers a future-proof energy management hub. Whether you are looking to maximize self-consumption or provide backup for a critical facility, the Deye HV series delivers a high-efficiency (97.6%) and scalable solution for the most ambitious energy goals.
