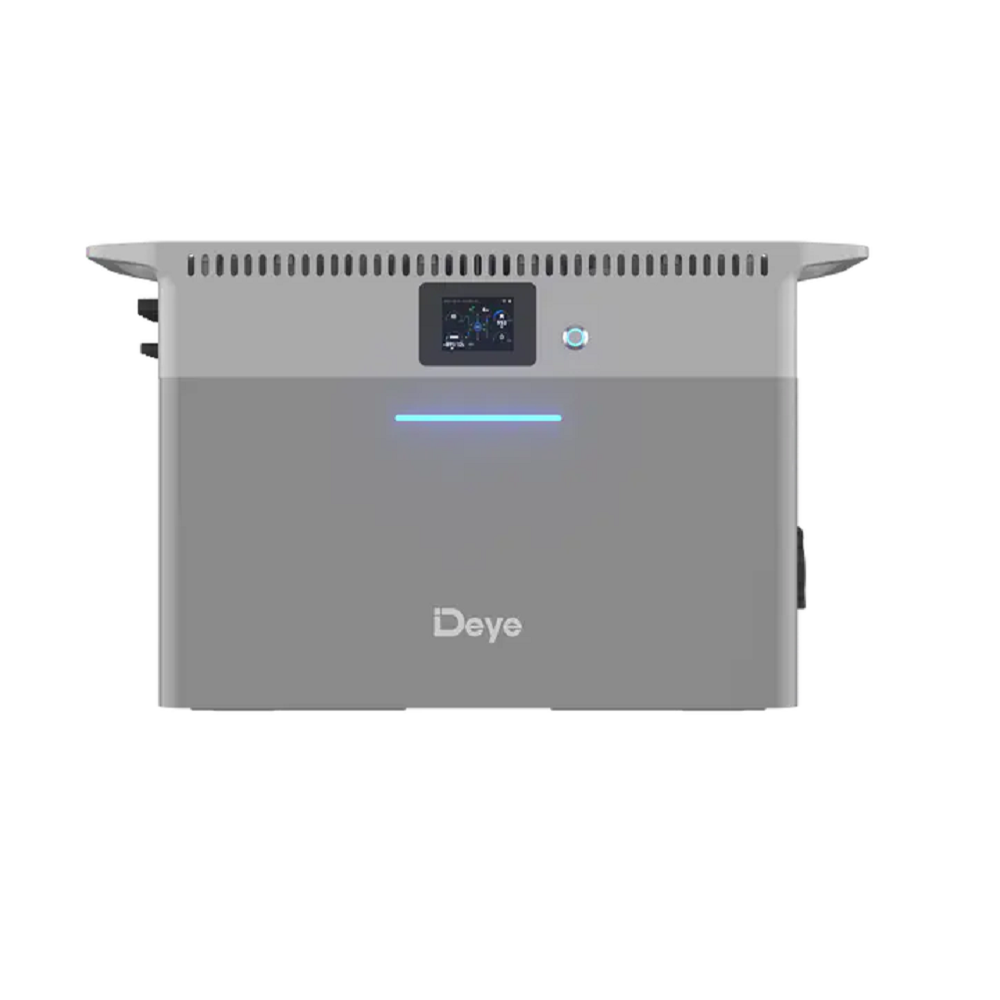

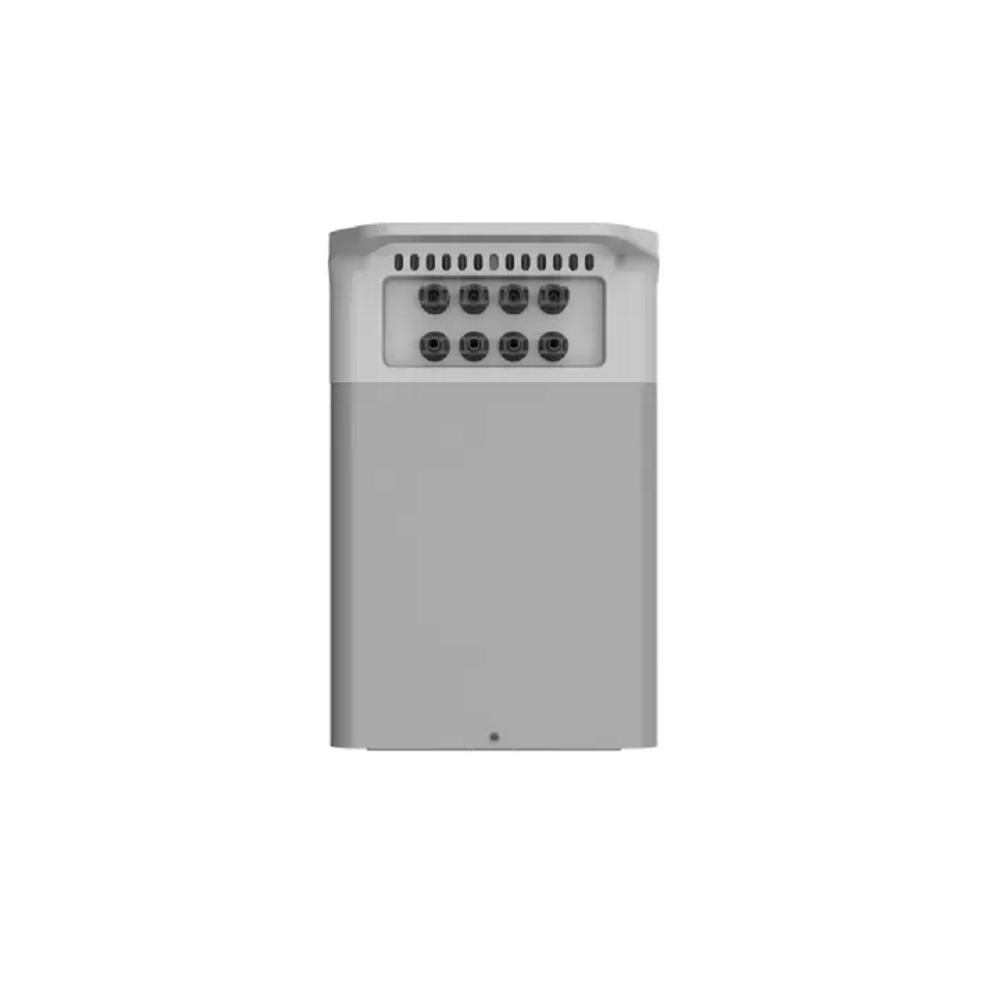

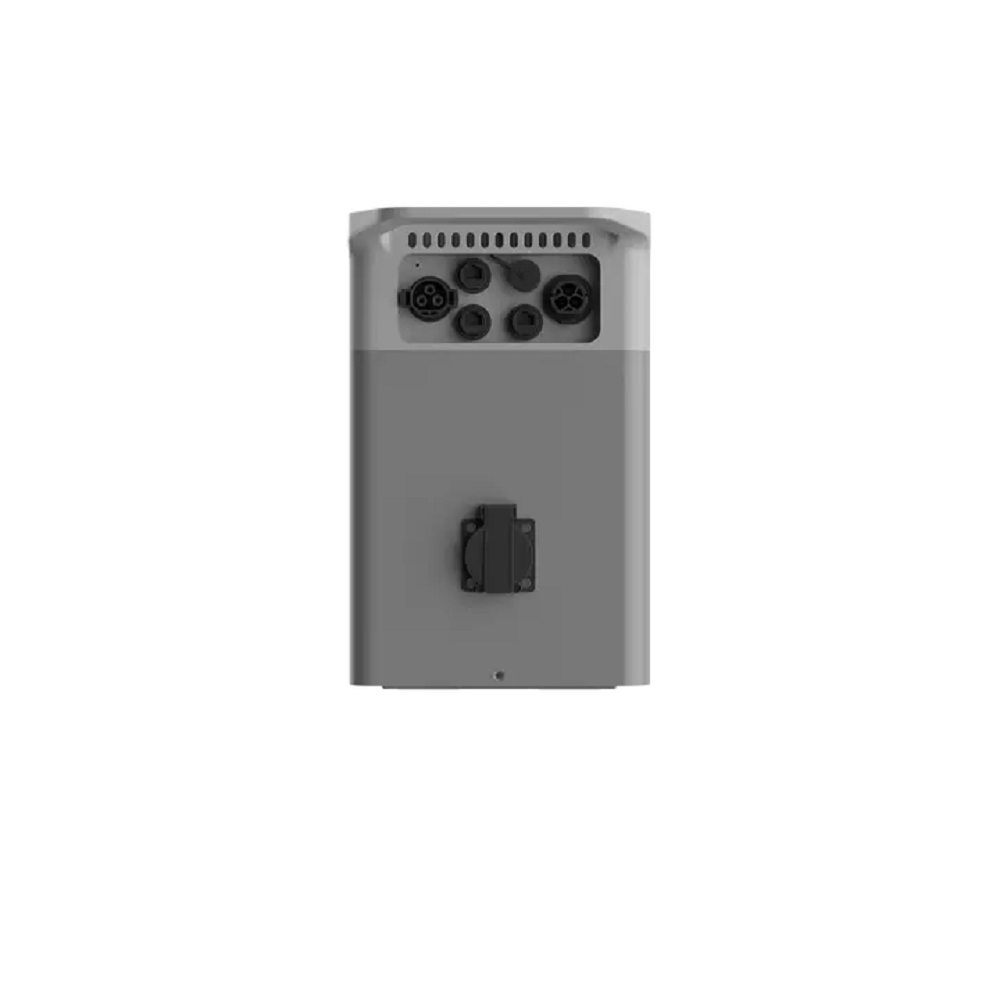

Deye 1600w Micro Hybrid Energy Storage System On-Grid,Off-Grid,(SUN-BK160-2.56KWH-EU-AM4-32L)

Name: Deye 1600w Micro Hybrid Energy Storage System On-Grid,Off-Grid,(SUN-BK160-2.56KWH-EU-AM4-32L)
Brand: LAVANCHA RENEWABLE ENERGY PRIVATE LIMITED
Price: 195000.0 INR
Availability: InStock

Price 195000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Deye 1600w Micro Hybrid Energy Storage System On-Grid,Off-Grid,(SUN-BK160-2.56KWH-EU-AM4-32L) Specification

Maintenance Type
Natural heat dissipation (Passive cooling system)

Input Voltage
42.5 Volt (V)

Efficiency
96.5%

Features
Plug & Play standard socket install, Wireless Zero-Export Function, 6 customizable time-of-use slots, Deye Cloud App control

Product Type
Other

Material
Lithium Iron Phosphate (LiFePO4 / LFP).

Power
1600 Watt (w)

Operating Temperature
-10 C to 55 C Celsius (oC)

Max Voltage
1600 Watt (W)

Max System Voltage
1600 Watt (W)

Output Voltage
220V / 230V Watt (W)

Cable Length
NA Centimeter (cm)

Switch Mode
Other

Size
560 330 210

Dimension (L*W*H)
560 330 210 Centimeter (cm)

Color
NA

Weight
30 Kilograms (kg)

Warranty
10 Year

Application
Commercial , Home, Industrial

Type Of Technology
Other

Installation Type
Other

Deye 1600w Micro Hybrid Energy Storage System On-Grid,Off-Grid,(SUN-BK160-2.56KWH-EU-AM4-32L) Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Telegraphic Transfer (T/T)

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Sample Available
No

Packaging Details
national standard packaging

Main Domestic Market
All India

Certifications
Grid: VDE 4105, IEC 61727/62116, EN 50549-1, G98, etc. Safety/EMC: IEC 62619, UN38.3, IEC/EN 62109-1/-2, IEC/EN 61000 series

About Deye 1600w Micro Hybrid Energy Storage System On-Grid,Off-Grid,(SUN-BK160-2.56KWH-EU-AM4-32L)

Deye Micro Hybrid Energy Storage System

The Deye Micro Hybrid Energy Storage System (ESS) is a versatile, all-in-one power solution designed for on-grid, off-grid, and portable applications. This "Plug and Play" system facilitates easy installation through standard sockets and features a compact, floor-mounted or stacked design suitable for balcony solar plants, camping, and home emergency backup. It offers a high conversion efficiency of 96.5% and a UPS-grade backup power capability with a rapid 4ms switchover between on-grid and off-grid modes.

Technical Performance and Compatibility

The system is built to handle significant power needs, supporting up to 2.5kW of rated AC output and up to 5760W of maximum PV access power. It boasts 99% compatibility with various PV modules and features four MPP trackers to optimize energy harvest. For users requiring more power, the system allows for the parallel connection of up to 3 inverters, reaching a total rated output of 7.5kW. The rugged construction includes an IP65 protection rating, making it durable for outdoor use in temperatures ranging from -10C to 55C.

Battery and Energy Management

At its core, the system utilizes high-safety LiFePO4 (LFP) battery technology. A single battery module provides 2560Wh of energy, but the system is highly scalable; it supports vertical stacking of up to 5 batteries and can be expanded to a massive 102.4kWh by connecting up to 40 battery packs in parallel. Intelligent energy management is a key highlight, featuring the Deye Cloud App and Deye Copilot. Users can set up six customizable time-of-use slots to optimize charging and discharging based on dynamic electricity prices, effectively reducing energy costs.
