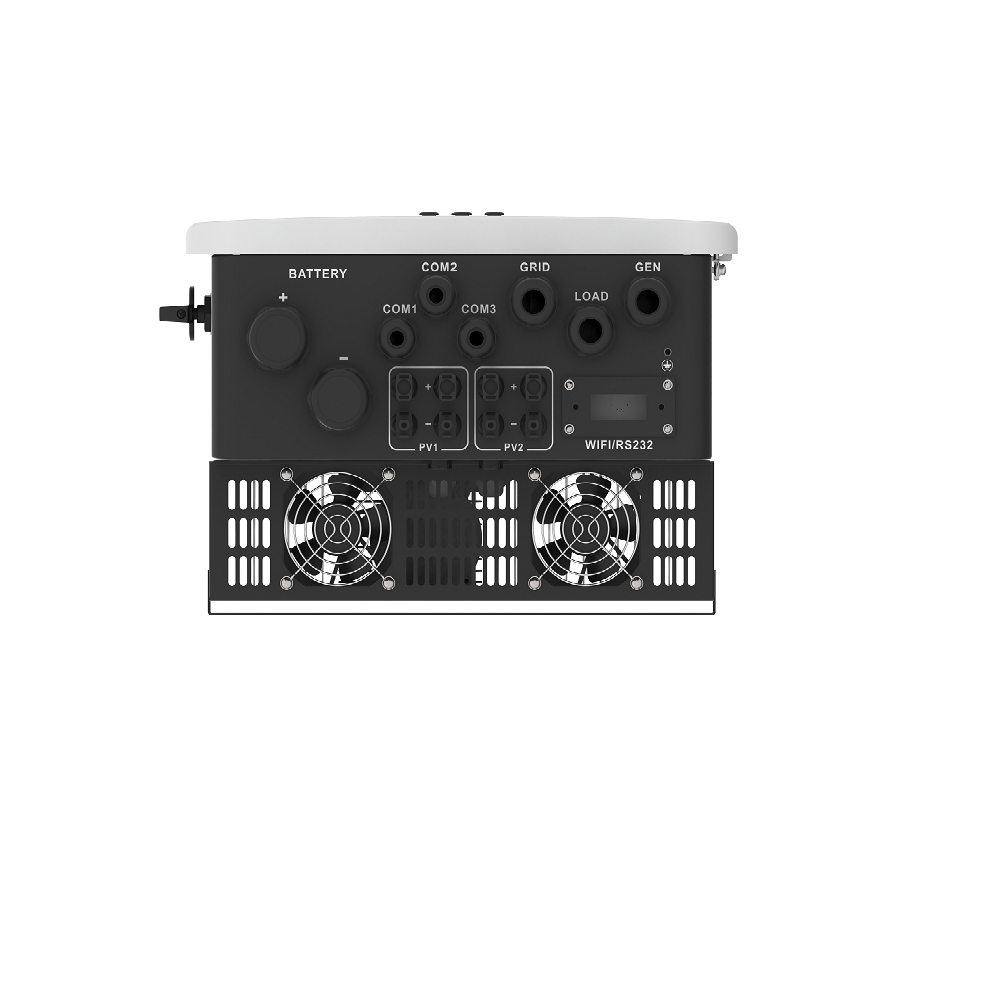

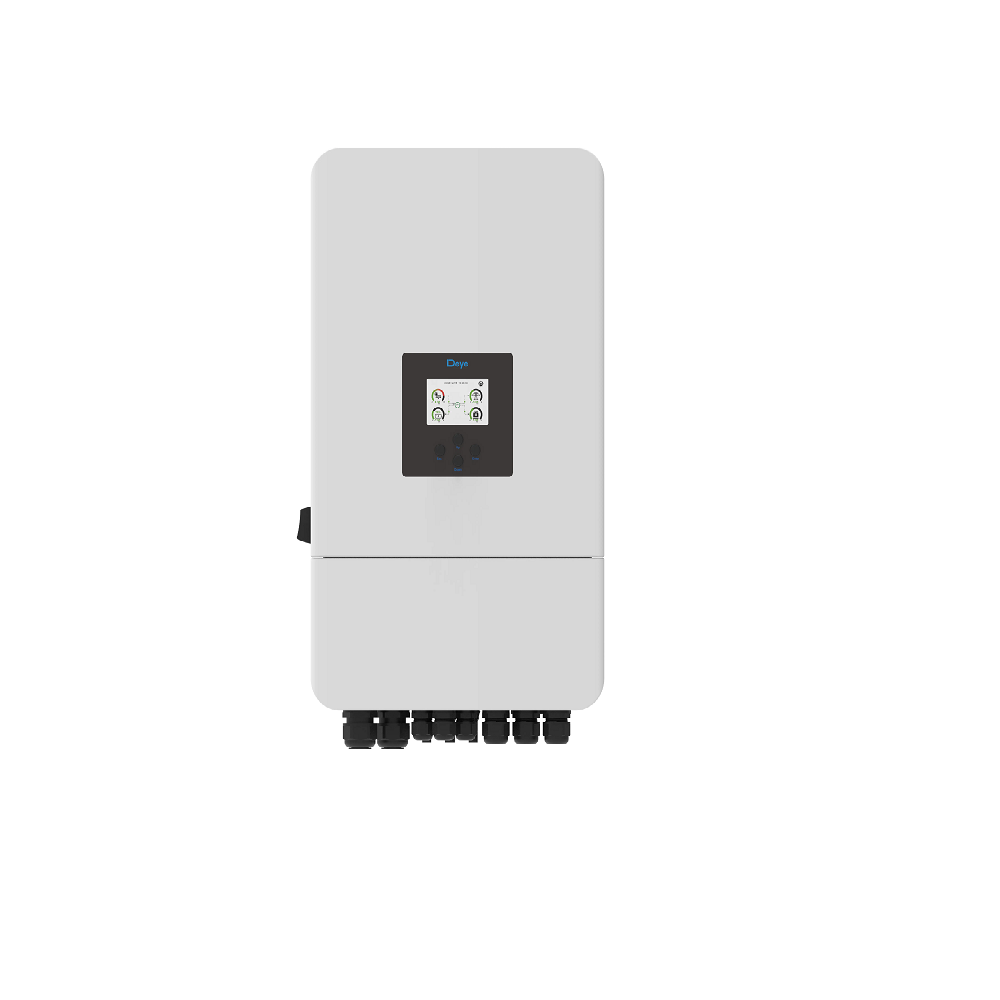

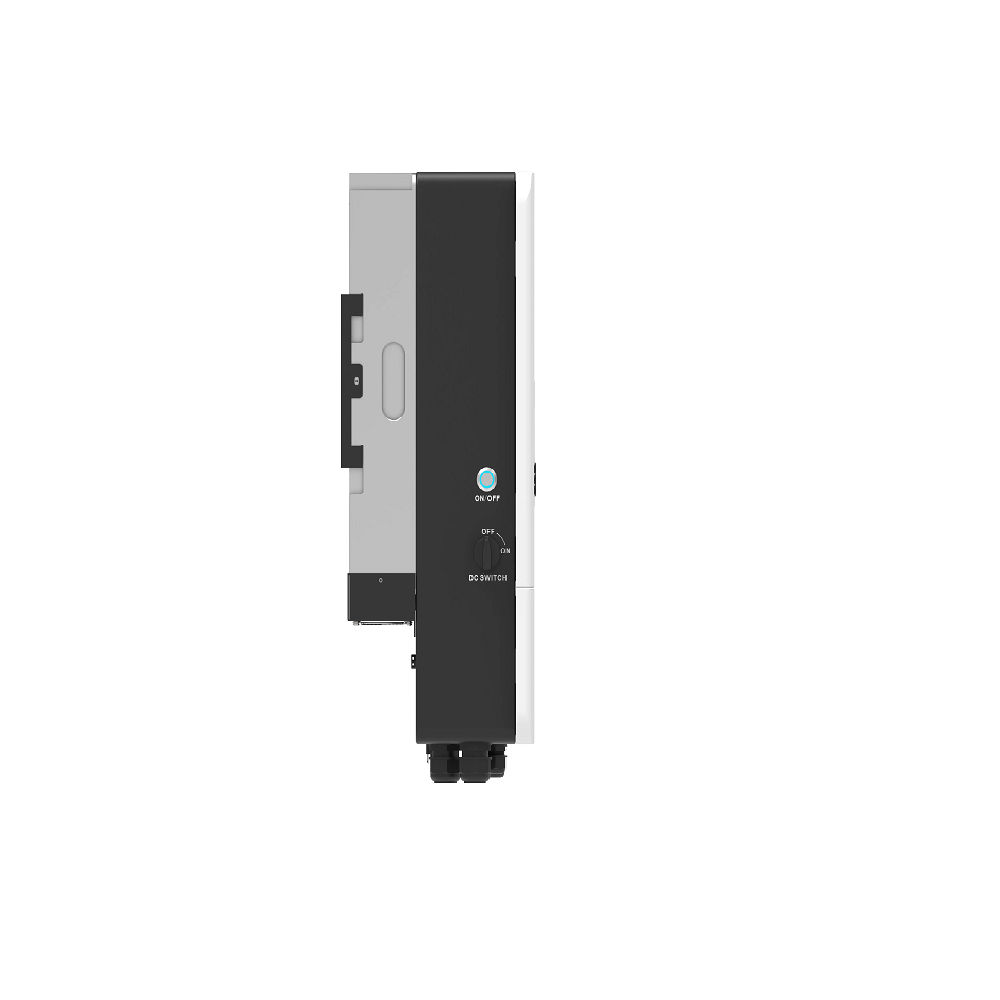

Deye 12KW-48V Sun Series Three Phase Hybrid Inverter, 2 MPPT, Low Valtage Battery Supported

Price 193299.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Deye 12KW-48V Sun Series Three Phase Hybrid Inverter, 2 MPPT, Low Valtage Battery Supported Specification

Input Voltage
550 Volt (V)

Efficiency
97.6%

Features
100% unbalanced output supported, max. 10 pcs parallel , 240A max charging/discharging , AC couple functionality , 6 time periods for battery scheduling

Maintenance Type
Intelligent Air Cooling

Product Type
Other

Material
NA

Number of Cells
0

Power
12000 Watt (w)

Operating Temperature
-40 to +60 C Celsius (oC)

Max Voltage
12000 Watt (W)

Max System Voltage
12000 Watt (W)

Output Voltage
230/400 Volt (V)

Cable Length
NA Millimeter (mm)

Switch Mode
Other

Size
386 660 250

Dimension (L*W*H)
386 660 250 Millimeter (mm)

Color
NA

Weight
35.2 Kilograms (kg)

Warranty
10 year

Application
Industrial, Home, Commercial

Type Of Technology
Other

Installation Type
Other

Deye 12KW-48V Sun Series Three Phase Hybrid Inverter, 2 MPPT, Low Valtage Battery Supported Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Telegraphic Transfer (T/T)

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Sample Available
Yes

Packaging Details
national standard packaging

Main Domestic Market
All India

Certifications
Grid Regulation: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105; Safety/EMC: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

About Deye 12KW-48V Sun Series Three Phase Hybrid Inverter, 2 MPPT, Low Valtage Battery Supported

The Deye SUN SG05LP3-EU-SM2 Series Three Phase Hybrid Solar Inverter is a powerful and intelligent energy solution designed for residential, commercial, and industrial solar systems. With a wide power range from 3kW to 12kW, this inverter offers exceptional flexibility, high efficiency, and reliable performance for modern energy needs.

Built to support 48V low-voltage battery systems, this inverter is compatible with both lithium-ion and lead-acid batteries, featuring an advanced self-adaptive BMS charging system for optimized battery performance and longer lifespan. With a maximum charging/discharging current of up to 240A, it ensures efficient energy storage and utilization.

The inverter supports up to 10 units in parallel, allowing scalable system expansion for large installations. It can also store energy from diesel generators, making it highly versatile for hybrid power setups and backup solutions.

Equipped with dual MPPT technology (up to 2 MPPT / 4 strings), the inverter maximizes solar energy generation even under complex rooftop conditions. It supports up to 24kW PV access power and operates within a wide MPPT voltage range of 200V650V, ensuring optimal solar performance.

One of its standout features is the ability to deliver 100% unbalanced output, allowing each phase to output up to 50% of the rated power, making it ideal for uneven load distribution across phases.

The inverter also supports AC coupling, enabling easy integration with existing solar systems. With 6 programmable time periods for battery charging and discharging, users can optimize energy usage and reduce electricity costs.

Designed for durability, the inverter features an IP65-rated enclosure, making it suitable for outdoor installations. It operates efficiently in extreme environments from -40C to +60C and uses intelligent air cooling for optimal thermal performance with low noise (55dB).

Safety is ensured with comprehensive protection features, including anti-islanding, surge protection (Type II AC/DC), short circuit protection, insulation monitoring, and optional arc fault detection.
