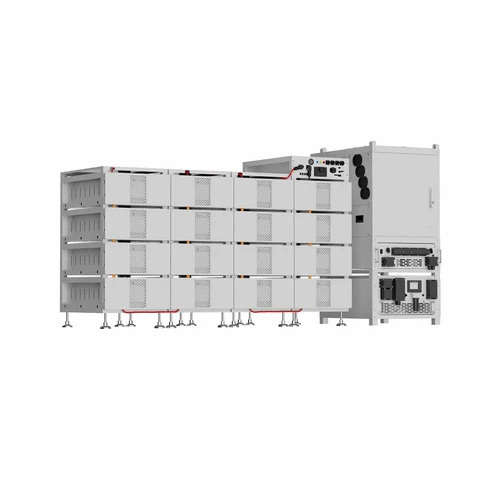

Deye 100kW-2.5MW SUN-MPPT-L01-EU-AM8 Energy Storage System

Send Inquiry

Request To Call Back

Deye 100kW-2.5MW SUN-MPPT-L01-EU-AM8 Energy Storage System

Name: Deye 100kW-2.5MW SUN-MPPT-L01-EU-AM8 Energy Storage System
Brand: LAVANCHA RENEWABLE ENERGY PRIVATE LIMITED
Price: 2500000 INR
Availability: InStock

Price 2500000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Deye 100kW-2.5MW SUN-MPPT-L01-EU-AM8 Energy Storage System Specification

Input Voltage
620V - 1000V DC

Maintenance Type
Low Maintenance, Remote Diagnostics

Efficiency
> 98%

Features
Scalable design, Intelligent BMS, Remote Monitoring, High Safety, Flexible Configuration, Easy Maintenance, Compatible with Solar PV Systems

Product Type
Energy Storage System

Material
High-grade Steel Enclosure, Aluminum Alloy, Electrical Components

Number of Cells
Depends on Capacity (typically multiple battery modules per system)

Power
100kW-2.5MW

Operating Temperature
-25C ~ +60C

Max Voltage
1000V DC per string

Max System Voltage
1500V DC

Output Voltage
400V AC (3 Phase)

Cable Length
Customizable based on installation

Switch Mode
Automatic / Manual Switch

Size
Customizable System Cabinet Sizes

Dimension (L*W*H)
Variable (depends on configuration, standard: 1200 x 2300 x 2000 mm for 100kW module)

Color
Gray

Weight
Varies per configuration (approx. 1200 kg for 100kW module)

Application
Commercial & Industrial, Utility-Scale Energy Storage, Microgrid, Peak Shaving, Renewable Integration

Type Of Technology
Lithium-Ion (LFP/ NMC Optional)

Installation Type
Floor Mounted / Containerized / Modular

Fire Protection
Integrated Fire Suppression System

Protection Degree
IP55 / IP54 (containerized)

Charge/Discharge Current
Configurable up to 250A per module

Safety Functions
Overcharge, Over-Discharge, Short Circuit, Over Temperature Protection

Altitude
< 2000 m (derating required above 2000m)

Compliance
ROHS, ISO9001, ISO14001

Monitoring System
Web-based & Mobile App Monitoring

Noise Level
<70dB (A) @ 1 meter

Grid Compatibility
On-Grid / Off-Grid / Hybrid Operation

Cooling Method
Intelligent Forced Air Cooling / Optional Liquid Cooling

Cycle Life
>6000 cycles @ 80% DOD

Communication Interface
RS485, CAN, Ethernet, Optional WiFi/4G

Container Type
20ft/40ft standard PCS & battery containers for >500kW systems

Battery Module Voltage Range
48V/100V/200V battery options

Deye 100kW-2.5MW SUN-MPPT-L01-EU-AM8 Energy Storage System Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Deye 100kW-2.5MW SUN-MPPT-L01-EU-AM8 Energy Storage System

Seize the hot deal on the trending Deye 100kW-2.5MW SUN-MPPT-L01-EU-AM8 Energy Storage System-a supreme solution in the energy sector. This first-string system operates on advanced lithium-ion technology, catering to both commercial and utility-scale needs. Its triumphant design includes adaptable on-grid, off-grid, and hybrid modes, robust fire suppression, and next-level safety with intelligent BMS protection. With outstanding scalability, remote monitoring, and swift installation, it's in the spotlight for applications like peak shaving, renewables integration, and microgrids-making it the supreme choice for power resilience and efficiency.

Tailored Power & Competitive Edge

Designed for a spectrum of commercial and industrial applications, the Deye 100kW-2.5MW SUN-MPPT-L01-EU-AM8 offers specific use flexibility-supporting microgrid, peak shaving, and renewable energy integration. Its competitive advantages stem from supreme efficiency (>98%), scalable architecture, and intelligent forced air or optional liquid cooling. Equipped with multi-mode grid compatibility, robust fire safety, and a web/mobile monitoring system, the system secures a significant advantage, ensuring reliable and cost-effective power solutions in diverse operational environments.

Sample, Market Reach & Seamless Delivery

Experience order completion with confidence-samples of the Deye 100kW-2.5MW system are available to facilitate evaluation before full-scale deployment. With a broad main domestic market presence across India, each unit undergoes secure packaging to ensure safe handover and transportation. Containers are customized per order, and handover takes place after comprehensive testing and remote diagnostics, ensuring you receive a supreme-quality product ready for commercial and utility-scale installations.

FAQ's of Deye 100kW-2.5MW SUN-MPPT-L01-EU-AM8 Energy Storage System:

Q: How does the Deye SUN-MPPT-L01-EU-AM8 Energy Storage System benefit commercial and industrial users?

A: This system offers high efficiency, advanced safety features, flexible configuration, and integration with solar PV, making it ideal for peak shaving, microgrids, and renewable integration in demanding environments.

Q: What grid compatibility options are available with this energy storage system?

A: The Deye system supports on-grid, off-grid, and hybrid operations, providing maximum flexibility to meet diverse site requirements and energy management strategies.

Q: Where can the Deye Energy Storage System be installed?

A: It is suitable for floor-mounted, containerized, or modular installations, making it adaptable for commercial facilities, utility-scale deployments, and microgrid applications across India.

Q: What is the process for ordering and receiving a sample system?

A: Customers can request a sample for evaluation, after which the packaging and secure shipment will be arranged. Handover occurs post-testing, ensuring readiness before order completion.

Q: How is remote monitoring and maintenance handled for this system?

A: The system features web-based and mobile app monitoring with remote diagnostics, offering continuous oversight and low-maintenance operation for streamlined service and support.

Q: What makes this system stand out compared to others in the market?

A: Key differentiators include supreme efficiency, integrated fire suppression, intelligent cooling options, and compatibility with various battery voltages and configurations-delivering superior safety, flexibility, and performance.
