Deye 100kW-2.5MW C&I ESS Solution - SUN-MPPT-L01-EU-AM8

Name: Deye 100kW-2.5MW C&I ESS Solution - SUN-MPPT-L01-EU-AM8
Brand: LAVANCHA RENEWABLE ENERGY PRIVATE LIMITED
Price: 2500000.0 INR
Availability: InStock

Price 2500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Deye 100kW-2.5MW C&I ESS Solution - SUN-MPPT-L01-EU-AM8 Specification

Features
Eliminates secondary external EMS modules via embedded processing paths , provides instantaneous surge output handles up to 200% of standard loads for 15 seconds , and couples with smart remote analytics engines

Input Voltage
180V to 750V MPPT baseline window Volt (V)

Maintenance Type
Intelligent Air Cooling / Smart fan system combination deployment loops

Efficiency
98.5%

Product Type
Other

Material
Lithium-ion (specifically LFP / Lithium Iron Phosphate chemistry)

Power
160000 Watt (w)

Operating Temperature
-40 C to 60 C Celsius (oC)

Max Voltage
160000 Watt (W)

Max System Voltage
160000 Watt (W)

Output Voltage
220/380Vac or 230/400Vac (Three-Phase system layout) Volt (V)

Cable Length
NA Millimeter (mm)

Switch Mode
Other

Size
2150W 1305H 800D

Dimension (L*W*H)
2150W 1305H 800D Millimeter (mm)

Color
NA

Weight
81.86 Kilograms (kg)

Warranty
10 year

Application
Home, Industrial, Commercial

Type Of Technology
Other

Installation Type
Other

Deye 100kW-2.5MW C&I ESS Solution - SUN-MPPT-L01-EU-AM8 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Telegraphic Transfer (T/T)

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Sample Available
No

Packaging Details
national standard packaging

Main Domestic Market
All India

Certifications
CE, IEC 62619, IEC 62040, UN38.3, and standard grid regulation compliance profiles (VDE-AR-N 4105, IEC 61727, EN 50549)

About Deye 100kW-2.5MW C&I ESS Solution - SUN-MPPT-L01-EU-AM8

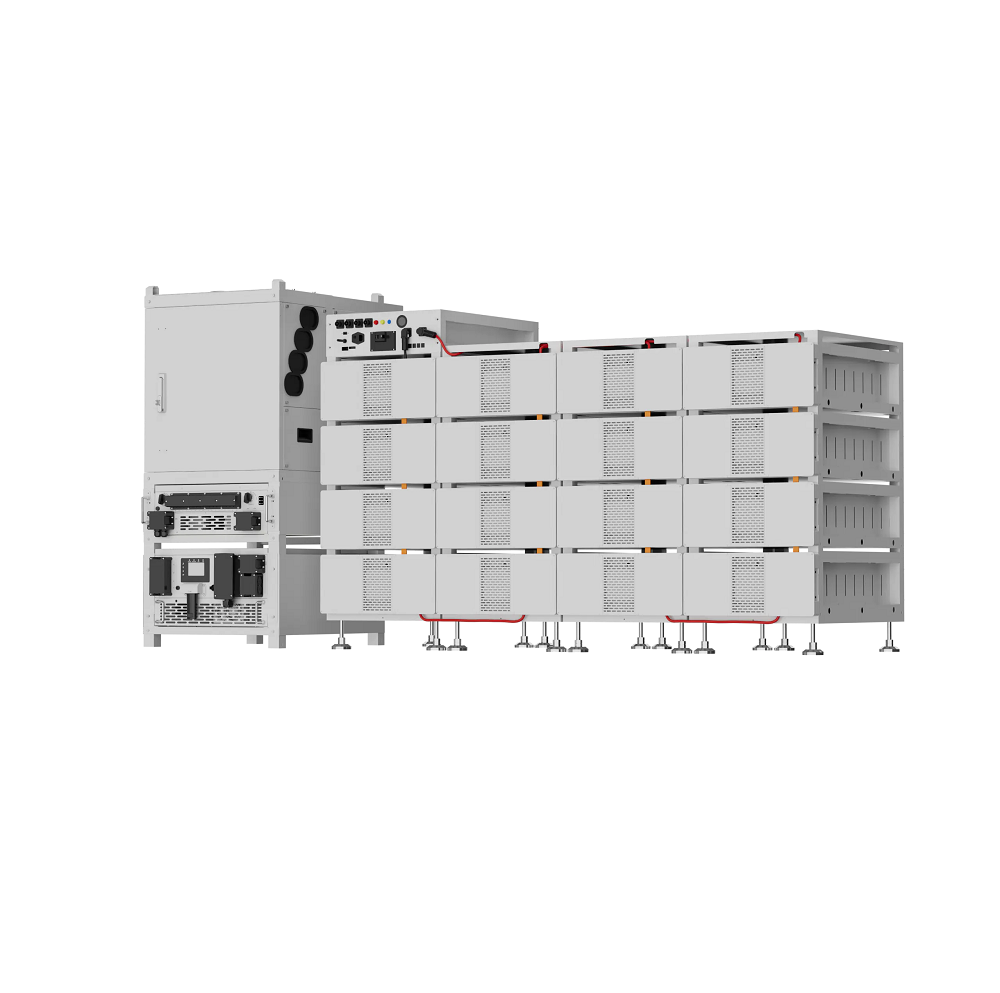

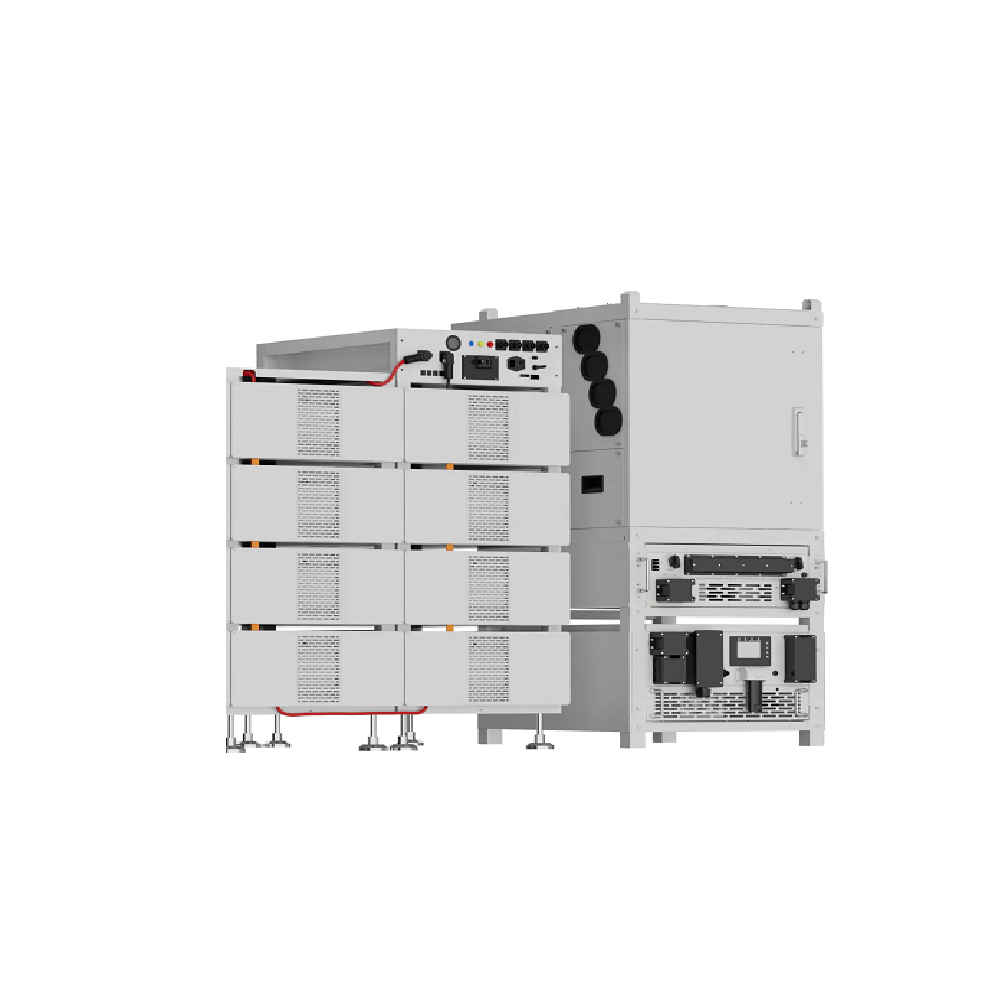

The Deye 100kW2.5MW Commercial and Industrial (C&I) Energy Storage System (ESS) is a modular and scalable solution designed for high-performance energy management. The system is built around a versatile architecture featuring PCS (Power Conversion System), MPPT (Maximum Power Point Tracking), and STS (Static Transfer Switch) modules, all of which integrate with an embedded Energy Management System (EMS). This integration allows for intelligent control functions like zero-export and time-of-use (TOU) strategies without requiring additional external hardware. The system is highly efficient, with the PCS achieving up to 98.5% efficiency and the MPPT module exceeding 99%.

For power management and distribution, the STS module provides a 500kW switching capacity and facilitates seamless transitions between on-grid, off-grid, and diesel generator modes in less than 10ms. A single STS module can support up to five 100kW PCS modules or four 125kW PCS modules. The MPPT module supports a maximum PV input of 200kWp through eight independent channels, each rated at 40A, ensuring robust solar energy harvesting. Durability is a key focus, as both the PCS and MPPT modules are IP65-rated for protection against dust and water, and the system can handle instantaneous peak power of up to 200% of its rated capacity for 15 seconds.

The energy storage component utilizes BOS-B Pro LFP (Lithium Iron Phosphate) batteries, known for their safety and long life. Each battery cluster can store up to 257.23 kWh, and a single PCS can support up to 16 racks in parallel, providing extensive backup capabilities for up to 32 hours. The system is managed by the Deye Cloud platform, an AI-powered interface that offers real-time monitoring, energy scheduling through "Deye Copilot," and 24/7 multilingual support to optimize savings and operational efficiency.
