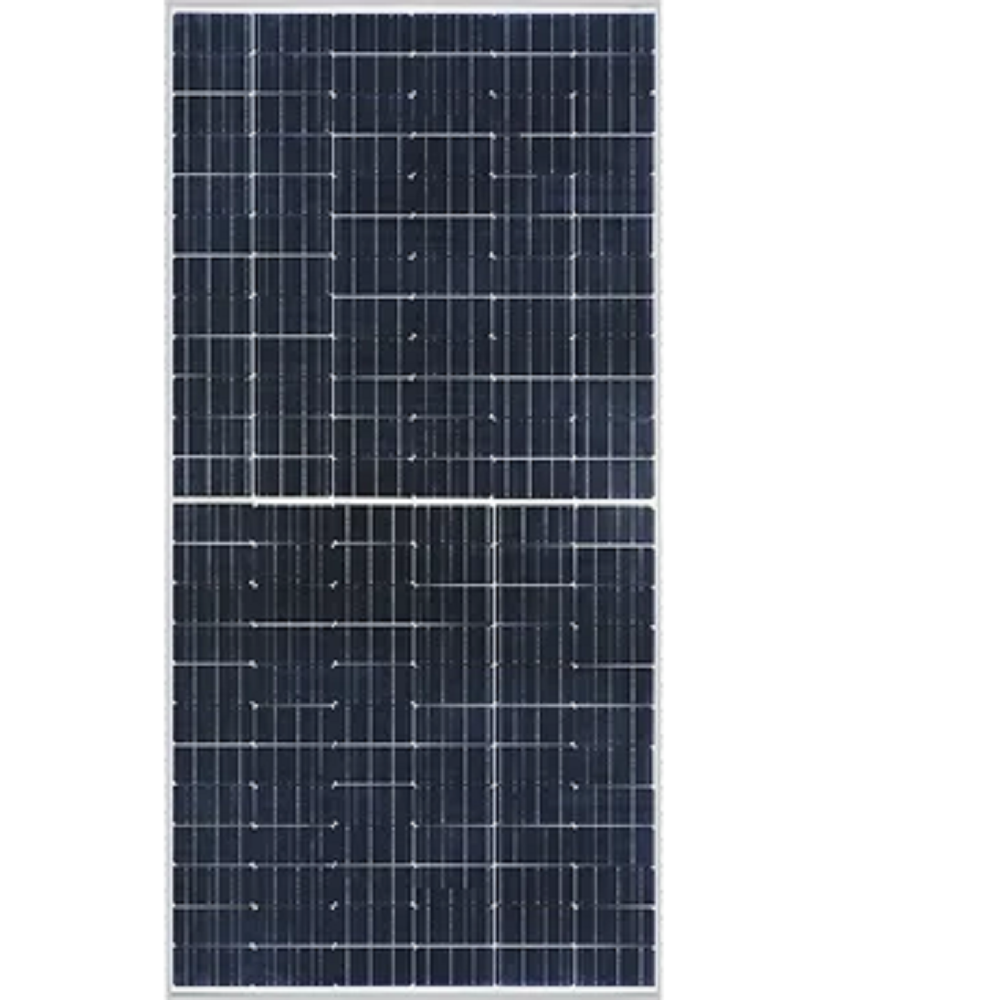

DCR RAYZON 580-600W 144 Half-cut N-type TOPCon Bifacial (G2G) Up to 23.05%

Name: DCR RAYZON 580-600W 144 Half-cut N-type TOPCon Bifacial (G2G) Up to 23.05%
Brand: LAVANCHA RENEWABLE ENERGY PRIVATE LIMITED
Price: 24.99 INR
Availability: InStock

Price 24.99 INR/ Watt

Get a Price/Quote

MOQ : 1 Watt

DCR RAYZON 580-600W 144 Half-cut N-type TOPCon Bifacial (G2G) Up to 23.05% Specification

Product Type
N-TYPE TOPCON 16BB

Material
Aluminum Alloy

Number of Cells
144

Operating Temperature
-40 C to +85 C Celsius (oC)

Max Voltage
580-600 Watt (W)

Max System Voltage
580-600 Watt (W)

Panel Efficiency
23.05 %

Cable Length
NA Millimeter (mm)

Number Of Diodes
NA

Maximum Snow Load
NA Kilograms (kg)

Size
2278(L) x 1133(W) x 35(T) in mm

Dimension (L*W*H)
2278(L) x 1133(W) x 35(T) Millimeter (mm)

Weight
33 Kilograms (kg)

Color
NA

Warranty
12 Year

DCR RAYZON 580-600W 144 Half-cut N-type TOPCon Bifacial (G2G) Up to 23.05% Trade Information

Minimum Order Quantity
1 Watt

Payment Terms
Telegraphic Transfer (T/T), Paypal

Supply Ability
1000 Watts Per Month

Delivery Time
7 Days

Sample Available
No

Packaging Details
PRODUCT | CERTIFICATES IS 14286, IEC: 61215, 61730, 62804, 61853, 61701, 62716 Quality Management System : ISO 9001:2015 Environment Management System : ISO 14001: 2015 Occupational Health and Safety : ISO 45001:2018

Main Domestic Market
All India

About DCR RAYZON 580-600W 144 Half-cut N-type TOPCon Bifacial (G2G) Up to 23.05%

This high-performance module series is equipped with advanced N-Type TOPCon 16-busbar technology and a dual-glass structure (2mm low-iron semi-tempered glass on both sides), delivering a maximum power output ranging from 580 Wp to 600 Wp with a peak module efficiency of 23.25% under standard test conditions. Recognized as a 2025 "Top Performer" by Kiwa, the panel features an exceptional bifaciality factor of

80\% \pm 10\%

, which captures ground-reflected light to boost nominal power output up to 630 W with a 5% backside gain and up to 750 W under a 25% backside gain. Built for long-term structural resilience, the module uses a silver-colored 6005-T6 grade anodized aluminum alloy frame certified to withstand heavy environmental loads up to 5400 Pa on the front and 2400 Pa on the back. It incorporates anti-reflective (AR) coated glass, a PID and UV-resistant polymeric encapsulant, a weatherproof IP68 rated split junction box with individual bypass diodes, and a positive power tolerance of 04.99 W with current binning to eliminate field mismatch losses. Operating reliably in extreme temperatures from -40C to +85C, the series is backed by an extensive 15-year product warranty on materials and workmanship alongside a 30-year linear performance warranty that limits first-year degradation to 1% and subsequent annual degradation to just 0.4%, ensuring 87.4% guaranteed power by the 30th year.
