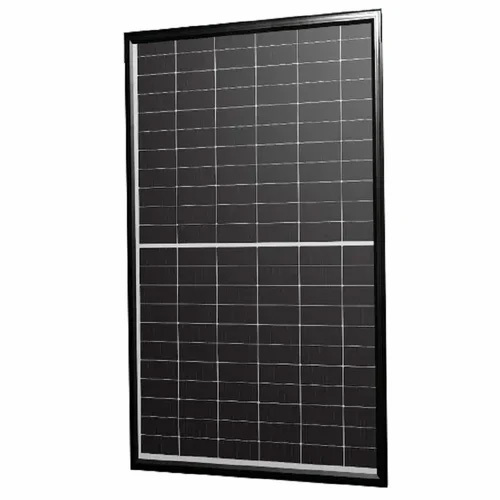

Send InquiryAdani Solar Elan Pride Series 630-650W G2G -Non-DCR 132 Cells MBB P-Type PERC Half-Cut Solar Panel
MOQ : 10 Watts
Adani Solar Elan Pride Series 630-650W G2G -Non-DCR 132 Cells MBB P-Type PERC Half-Cut Solar Panel Specification
- Product Type
- Mono PERC Half-Cut Solar Panel
- Material
- Polymer/Aluminium Frame + Glass
- Number of Cells
- 132 (MBB, Half Cut)
- Operating Temperature
- -40C to +85C
- Max Voltage
- 49.9 V
- Max System Voltage
- 1500 V DC
- Panel Efficiency
- 21.0% - 21.67%
- Cable Length
- 400 mm (+), 300 mm (-)
- Number Of Diodes
- 3
- Maximum Snow Load
- 5400 Pa
- Size
- 132 cells (22x6)
- Dimension (L*W*H)
- 2384 mm x 1303 mm x 35 mm
- Weight
- 33 kg
- Color
- Black frame with transparent backsheet
- Junction Box
- IP68 Rated, Split Junction Box
- Application
- Utility-scale and Rooftop Installations
- Module Efficiency
- 21.67% (Maximum)
- Bifacial Gain
- Up to 15% (for glass-to-glass variant)
- Glass Type
- High Transparency 3.2 mm, Tempered & ARC Coated
- Front Load (Wind Load) Tolerance
- 2400 Pa
- Fire Rating
- Class C (IEC 61730)
- Module Power Tolerance
- 0 to +5 W
- Cell Type
- MBB (Multi Bus Bar), P-Type Mono
- Nominal Power Output Range
- 630 Wp - 650 Wp
- Connector Type
- MC4 or MC4 compatible
Adani Solar Elan Pride Series 630-650W G2G -Non-DCR 132 Cells MBB P-Type PERC Half-Cut Solar Panel Trade Information
- Minimum Order Quantity
- 10 Watts
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 100 Watts Per Month
- Delivery Time
- 7 Days
- Main Domestic Market
- All India
About Adani Solar Elan Pride Series 630-650W G2G -Non-DCR 132 Cells MBB P-Type PERC Half-Cut Solar Panel
Utilise this top-rated offer and experience unparalleled performance with the Adani Solar Elan Pride Series 630-650W G2G Non-DCR Solar Panel. Combining enviable efficiency (up to 21.67%) and breathtaking durability, this gorgeous solution features 132 MBB half-cut P-Type PERC cells. The high-transparency tempered glass, robust IP68 split junction box, and advanced bifacial gain (up to 15% for glass-to-glass) make it ideal for both utility-scale and rooftop installations. Try now to power your space with this state-of-the-art panel, renowned for consistent power tolerance (+5 W), Class C fire rating, and remarkable load endurance.
Unmatched Advantages and Versatile Applications
The Adani Solar Elan Pride Series 630-650W G2G panel boasts primary competitive advantages like an enviable module efficiency of up to 21.67%, robust IP68 split junction box, and a powerful bifacial gain of up to 15%. Its durability and high tolerance to wind and snow loads make it perfect for both utility-scale and rooftop installations. The sleek design with a black frame and transparent backsheet ensures outstanding performance across multiple surfaces and environments.
Sample Policy, Certifications, and Swift Execution
Sample policy for the Elan Pride Series is straightforward, ensuring minimal expenditure for evaluation units. Certified under Class C fire rating (IEC 61730) and equipped with IP68-rated components, these panels guarantee quality and safety. The well-coordinated logistics streamline delivery, allowing for prompt order completion. Average delivery time is optimised to minimise project delays, ensuring that you receive your high-performance panels precisely when needed for your installation.
Unmatched Advantages and Versatile Applications
The Adani Solar Elan Pride Series 630-650W G2G panel boasts primary competitive advantages like an enviable module efficiency of up to 21.67%, robust IP68 split junction box, and a powerful bifacial gain of up to 15%. Its durability and high tolerance to wind and snow loads make it perfect for both utility-scale and rooftop installations. The sleek design with a black frame and transparent backsheet ensures outstanding performance across multiple surfaces and environments.
Sample Policy, Certifications, and Swift Execution
Sample policy for the Elan Pride Series is straightforward, ensuring minimal expenditure for evaluation units. Certified under Class C fire rating (IEC 61730) and equipped with IP68-rated components, these panels guarantee quality and safety. The well-coordinated logistics streamline delivery, allowing for prompt order completion. Average delivery time is optimised to minimise project delays, ensuring that you receive your high-performance panels precisely when needed for your installation.
FAQ's of Adani Solar Elan Pride Series 630-650W G2G -Non-DCR 132 Cells MBB P-Type PERC Half-Cut Solar Panel:
Q: How do I install the Adani Solar Elan Pride Series 630-650W G2G solar panel?
A: The Elan Pride Series can be easily installed on both utility-scale and rooftop systems using standard mounting structures. We recommend consulting with a certified solar installer to ensure correct setup and optimal positioning for maximum efficiency.Q: What are the primary benefits of the MBB (Multi Bus Bar) P-Type PERC half-cut cell technology?
A: The MBB P-Type PERC half-cut technology offers unparalleled efficiency, lower energy losses, and improved durability under real-world conditions. It also enhances the panel's ability to generate more power due to its advanced design.Q: When can I expect completion of my panel order and delivery?
A: Our streamlined logistics process ensures quick order completion. Delivery times are managed efficiently, with the average order shipped within a few business days after confirmation, minimising project delays.Q: Where can this solar panel be used most effectively?
A: This panel is highly versatile and designed for both large utility-scale solar farms and residential or commercial rooftop applications, delivering enviable results regardless of the surface or installation environment.Q: What certifications guarantee the quality and safety of this solar panel?
A: The Adani Solar Elan Pride Series panels are certified with a Class C fire rating according to IEC 61730, and utilise IP68-rated junction boxes, ensuring high standards of quality and operational safety.Q: How does the bifacial gain work in the glass-to-glass variant?
A: In the glass-to-glass variant, the bifacial gain allows the panel to capture up to 15% additional energy from reflected sunlight on the rear side, providing greater energy yield compared to traditional monofacial panels.
